DisassemblingtheFrontAxle

1.Removetherightandleft-handaxleassemblies;refertoDisassemblingthe

FrontAxleShaftsandBearings(page8–9).

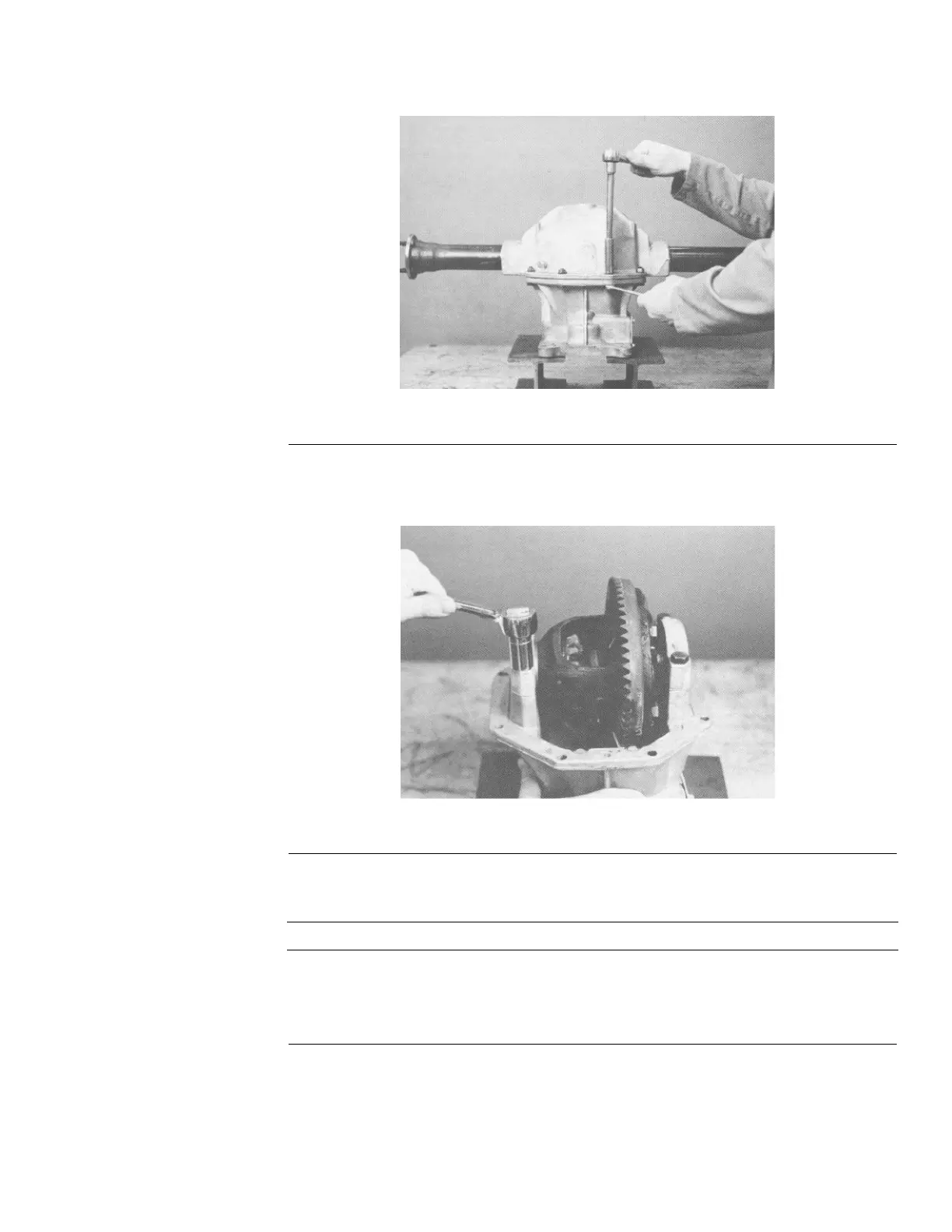

g225906

Figure215

2.Removethe8housingbolts,8hexnuts,and8lockwashersthatsecurethe

axlehousings.Separatethefrontandrearaxlehousings(Figure215).Clean

allgasketmaterialfromthehousingmatingsurfaces.

g225907

Figure216

3.Removethe4bearingbolts,andremovethecaps.Placethecapsinasafe

placetoavoiddamagingtheirmachinedsurfaces(Figure216).

IMPORTANT

Thebearingcapsaremarkedforidentication.Thelettersor

numbersareinhorizontalandverticalpositions.Recordthemfor

referenceduringassembly.Alwaysinstalltheminthesameposition.

Groundsmaster

3280-D/3320

Page8–23

DriveAxles:ServiceandRepairs

05138SLRevB
