Adjustments

TractionNeutralSensor(MachineSerialNumberabove316000000)

g226812

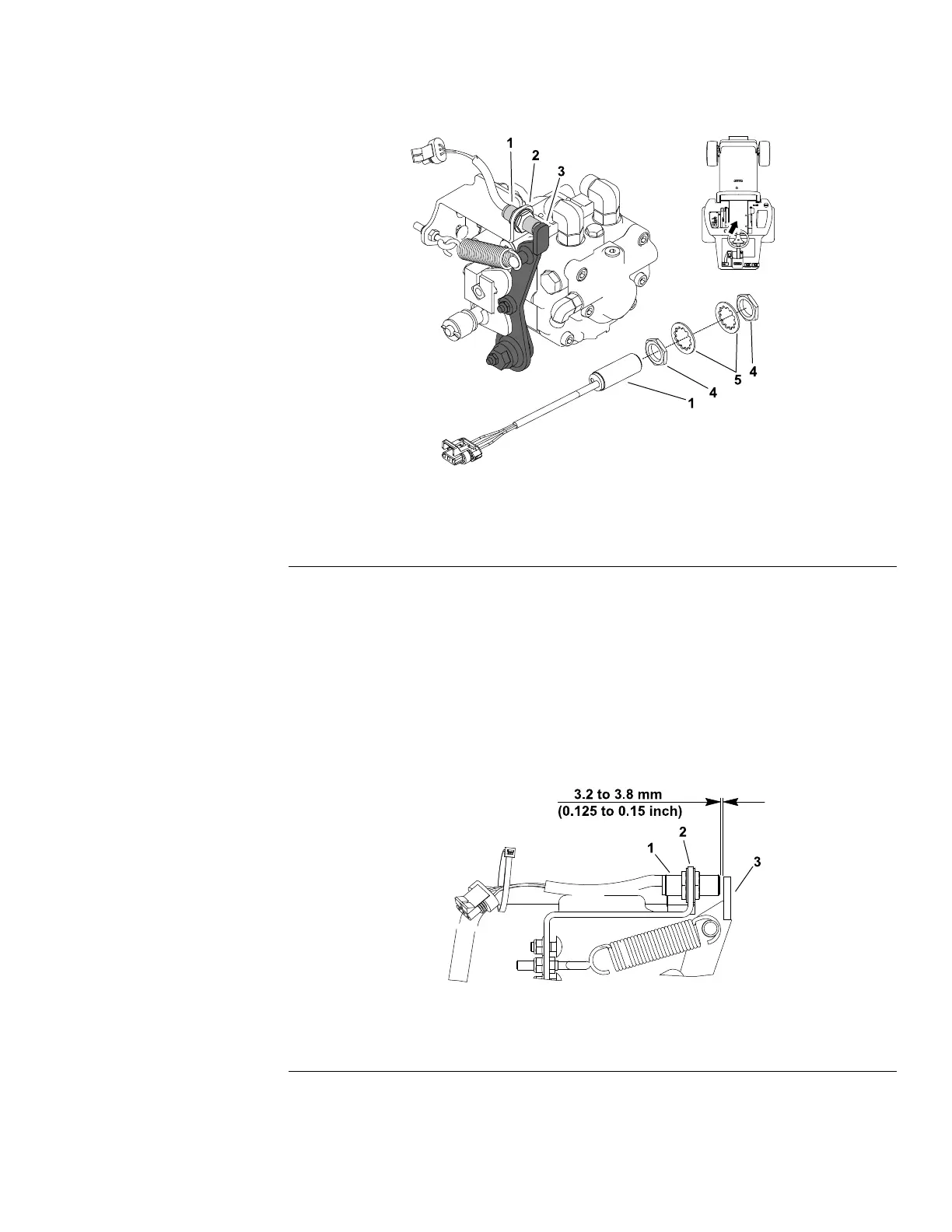

Figure115

1.Tractionneutralsensor3.Neutralarm

5.Lockwasher(2each)

2.Sensorbracket4.Jamnut(2each)

Thetractionneutralsensorisanormallyopenproximitysensorthatcloseswhen

thetractionpedalisintheneutralposition.Thesensorislocatedundertheseat

andmountedtoasensorbracketoverthehydraulicpump(Figure115).The

sensingplateforthetractionneutralsensoristheneutralarm.

AdjustingtheTractionNeutralSensor

1.Beforeadjustingthetractionneutralsensor,checkandadjustthetraction

driveforneutral;refertoAdjustingtheTractionDriveforNeutralinthe

TractionUnitOperator’sManual.

g226813

Figure116

1.Tractionneutralsensor

2.Sensorbracket

3.Neutralarm

2.Whenthetractionpedalisintheneutralposition,thegapbetweenthe

tractionneutralsensorandtheneutralarmshouldbe3.2to3.8mm(0.125

to0.15inch)(Figure116).

Groundsmaster

3280-D/3320

Page6–17

ElectricalSystem:Adjustments

05138SLRevB
