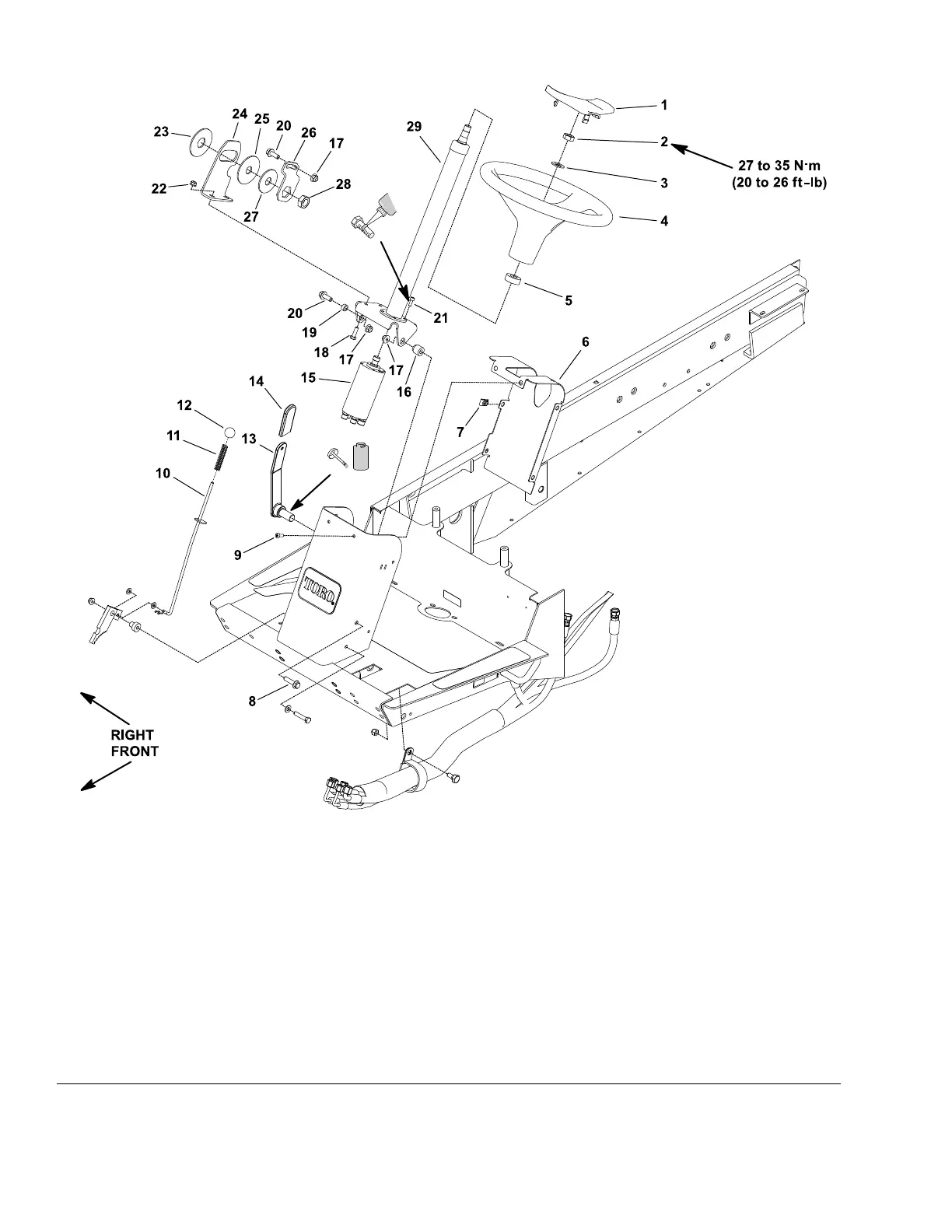

SteeringColumn
g223612
Figure179
1.Steeringwheelcover11.Compressionspring21.Socket-headscrew(4each)
2.Locknut12.Knob
22.Flangenut(2each)
3.Flatwasher13.Tiltsteeringlever23.Frictiondisc
4.Steeringwheel14.Grip
24.Pivotplate
5.Foamcollar
15.Steeringcontrolvalve
25.Frictiondisc
6.T owerpanel
16.Spacer
26.Tiltbracket
7.Retainernut(6each)17.Flangenut(3each)
27.Flatwasher
8.Flange-headscrew
18.Bolt(2each)
28.Jamnut
9.Philips-headscrew(6each)19.Spacer29.Steeringcolumn
10.Parkingbrakerod
20.Flange-headscrew(2each)
Chassis:ServiceandRepairs
Page7–6
Groundsmaster
®
3280-D/3320
05138SLRevB
