Toro 30403 Service Manual

CuttingDeckRollersandSkids

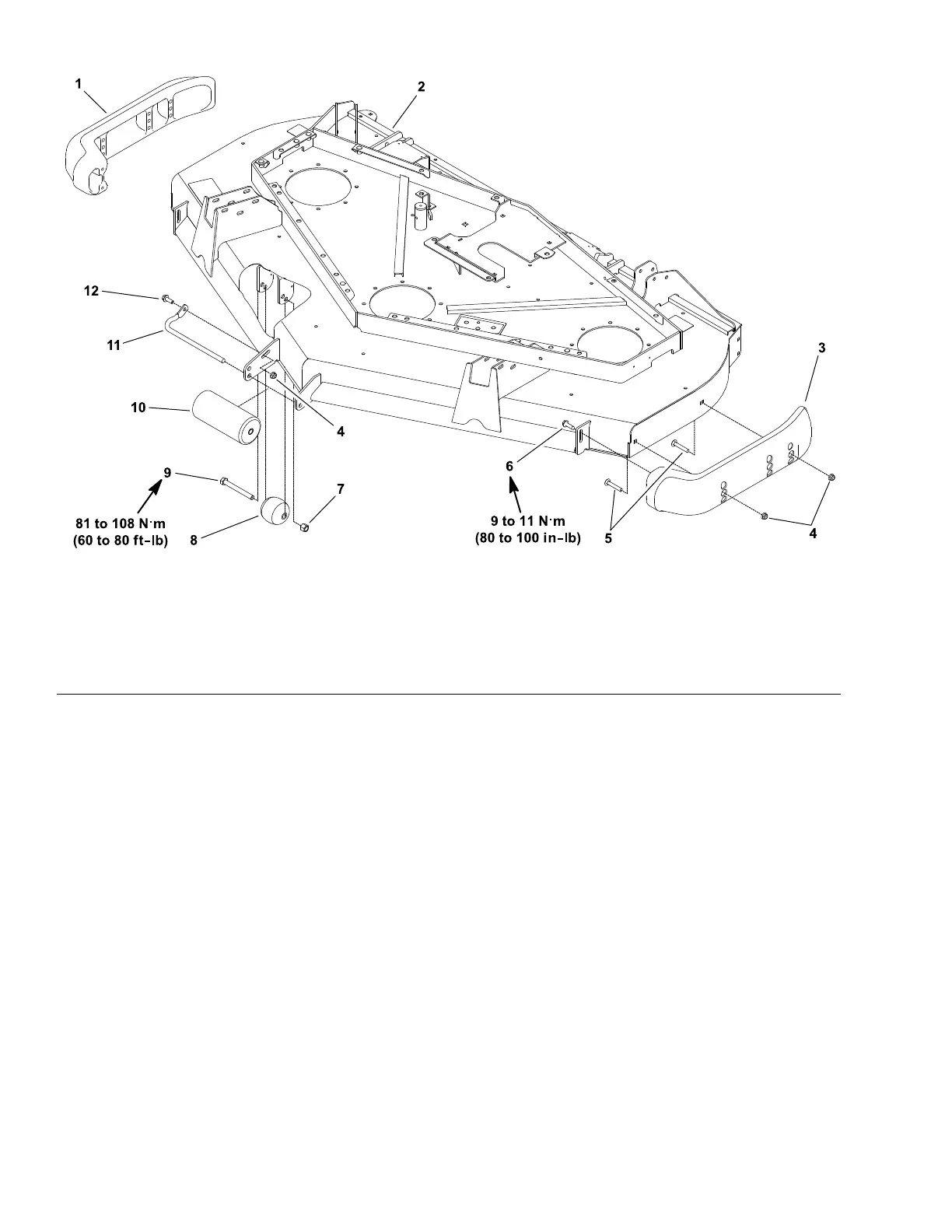

g223660
Figure307
1.Rightskid
5.Carriagescrew(4each)9.Bolt(2each)
2.Cuttingdeck6.Washer-headscrew(2each)
10.Roller
3.Leftskid7.Locknut(2each)11.Rollershaft
4.Flangenut(5each)8.Roller(2each)
12.Flange-headscrew
RemovingtheCuttingDeckRollersandSkids
1.Removetheskidsandrollersfromthecuttingdeck(Figure307).
InstallingtheCuttingDeckRollersandSkids
1.Installtheskidstothecuttingdeck(Figure307).Ensuretoinstalltheskidsin
thesamemountingholeheightposition(lowerorupper).
2.Whenyouinstalltherollerstothedeck,tightenthenutuntiltherollerwillnot
rotate,thenloosenthenutonlyenoughtoallowtherollertorotatefreely.
Ensuretoinstallallthecuttingdeckrollersinthesamemountingholeheight
position(lowerorupper).
CuttingUnits:ServiceandRepairs
Page10–20
Groundsmaster
®
3280-D/3320
05138SLRevB
