Adjustments
AdjustingtheThrottleControl

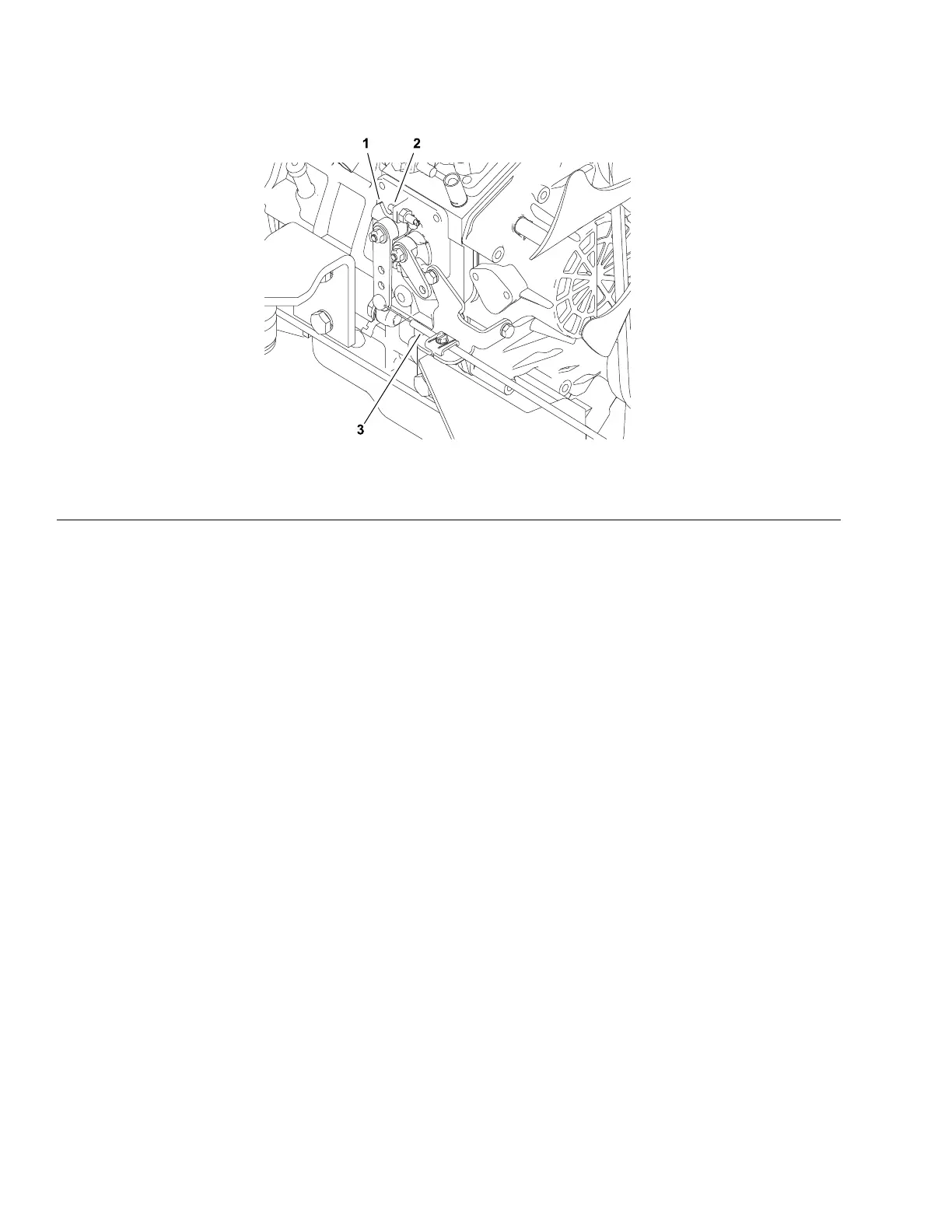

g221634
Figure21
1.Speedcontrollever
2.Highspeedscrew3.Throttlecable
Properthrottleoperationisdependentuponproperadjustmentofthethrottle
control.Ensurethatthethrottlecontrolisoperatingproperly.
1.MovetheremotethrottlecontrollevertotheFASTposition
2.Checkthepositionofspeedcontrolleverontheenginefuelinjectionpump.
Thespeedcontrollevermustbecontactingthehighspeedscrewwhenthe
throttlecontrolleverisintheFASTposition.
3.Ifnecessary,thethrottlecontrolcanbeadjustedbylooseningthecable
clampscrewandpositioningthecontrolcableuntilthespeedcontrollever
contactsthehighspeedscrew.
DieselEngine:AdjustmentsPage4–6
Groundsmaster
®
3280-D/3320
05138SLRevB
