SpecialTools
YoucanorderthesespecialtoolsfromyourT oroDistributor.Sometoolsmay
alsobeavailablefromalocaltoolsupplier.

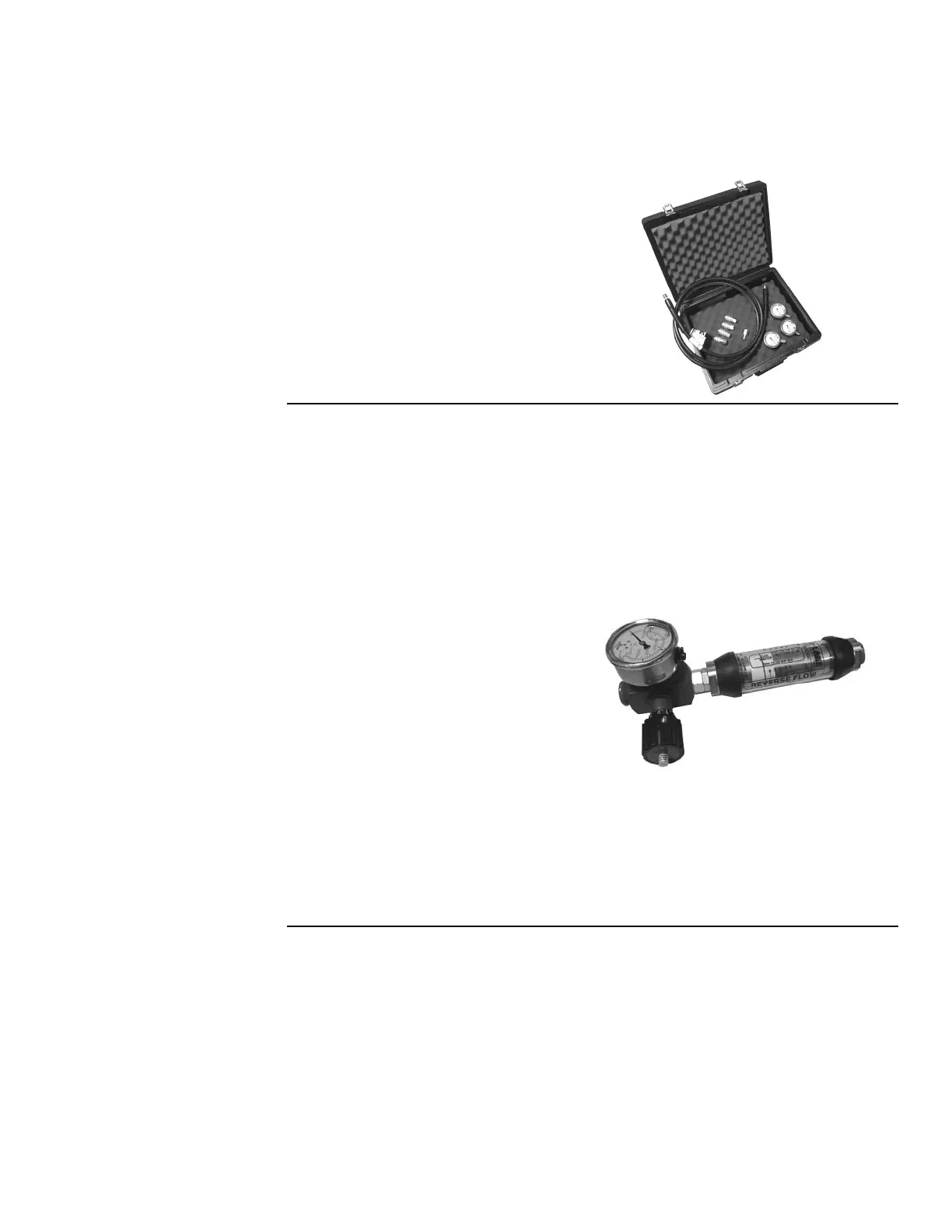

HydraulicPressureTestingKit
ToroPartNo.TOR47009
Usethiskittotakevariouspressure
readingsfordiagnostictests.Quick
disconnectttingsareprovidedtoattach
directlytothematingttingsonthe
machinetestportswithoutthetools.A
high-pressurehoseisgivenforremote
readings.Contains1each:6,900kPa
(1,000psi),34,500kPa(5,000psi),and
69,000kPa(10,000psi)gauges.
57LPM(15GPM)HydraulicTesterKit
ToroPartNo.TOR214678
Usethistestertotestthehydrauliccircuits
andcomponentsforowandpressure
capacities.Thetesterowmeasurement
maximumis57LPM(15GPM).Thistester
includesthefollowing:
InletHose–Thishoseconnectsthe
systemcircuittotheinletsideofthe
hydraulictester.
LoadValve–Turnthevalvetorestrictthe
owtocreateasimulatedworkingloadin
thecircuit.
PressureGauge–Aglycerinelled
pressuregauge0to34,500kPa(0to5,000
psi)toprovideoperatingcircuitpressure.
FlowMeter–Thismetermeasuresthe
actualuidowintheoperatingcircuitwith
agaugeratedat5to55LPM(1to15
GPM).
OutletHose–Ahosefromtheoutletside
ofthehydraulictesterthatconnectstothe
hydraulicsystemcircuit.
Fittings–Anassortmentofhydraulic
ttingsareincludedwiththiskit.
Groundsmaster
®
3280-D/3320
Page2–13
SpecicationsandMaintenance:SpecialTools
05138SLRevB
