ServiceandRepairs

AirCleanerSystem

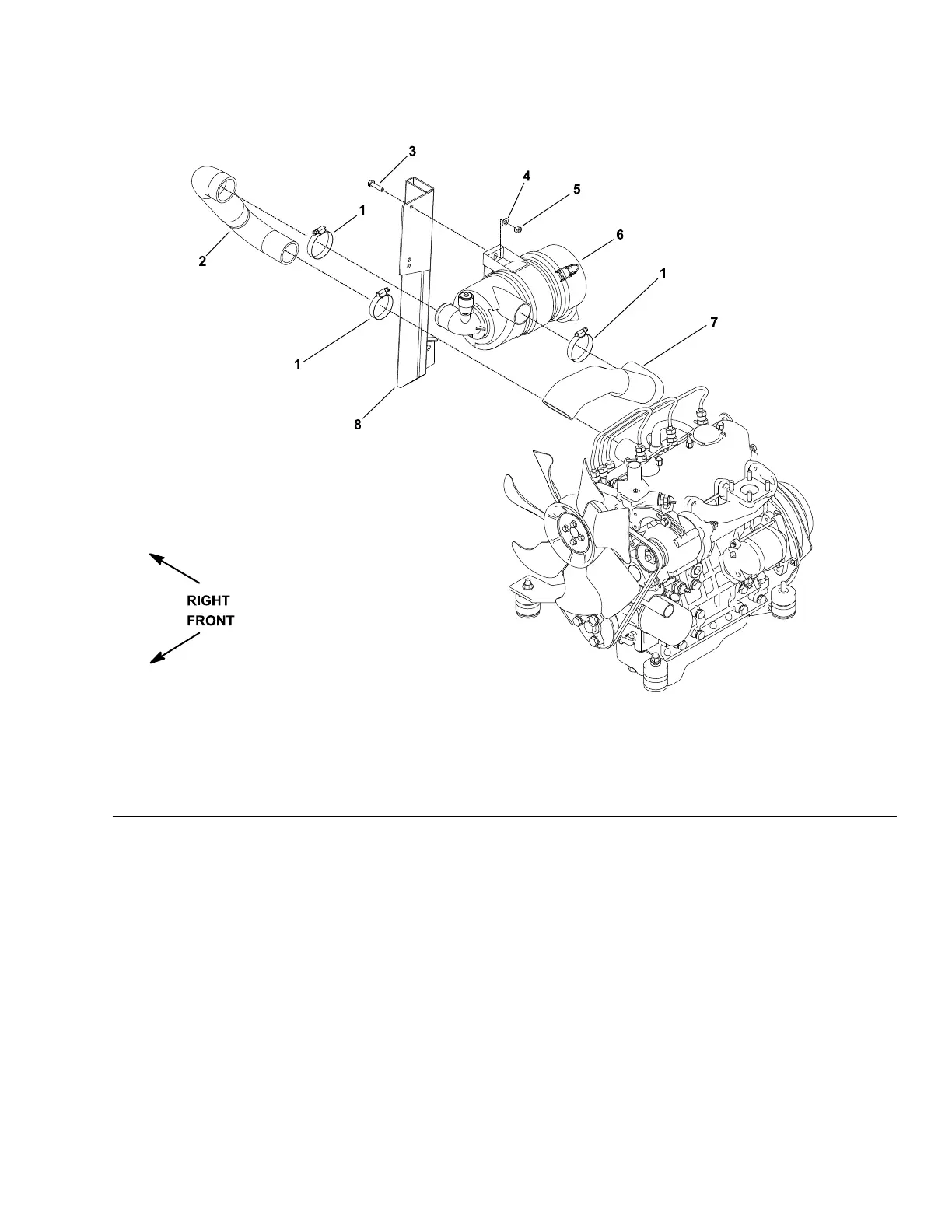

g221635

Figure22

1.Hoseclamp(3each)4.Flatwasher(2each)

7.Aircleanerinlethose

2.Aircleaneroutlethose

5.Locknut(2each)

8.Aircleanermount

3.Bolt(2each)

6.Aircleanerassembly

RemovingtheAirCleanerSystem

Note:RefertotheOperator'sManualformaintenanceproceduresandintervals

oftheaircleaner.

1.Parkthemachineonalevelsurface,lowerthecuttingdeck(orimplement),

shutofftheengine,settheparkingbrake,andremovethekeyfromthe

keyswitch.

2.Unlatchthehoodandraiseit.

3.RemovetheaircleanercomponentsasshowninFigure22.

4.Examinetheaircleanerassembly(item6inFigure22)forwearordamage

thatcouldcausepossibleairleaks.

5.Examinetheairhosesforwearordamageandreplacethehosesif

necessary.

Groundsmaster

3280-D/3320

Page4–7

DieselEngine:ServiceandRepairs

05138SLRevB
