ServicingtheBi-DirectionalClutch(4-WheelDrive)

g226506

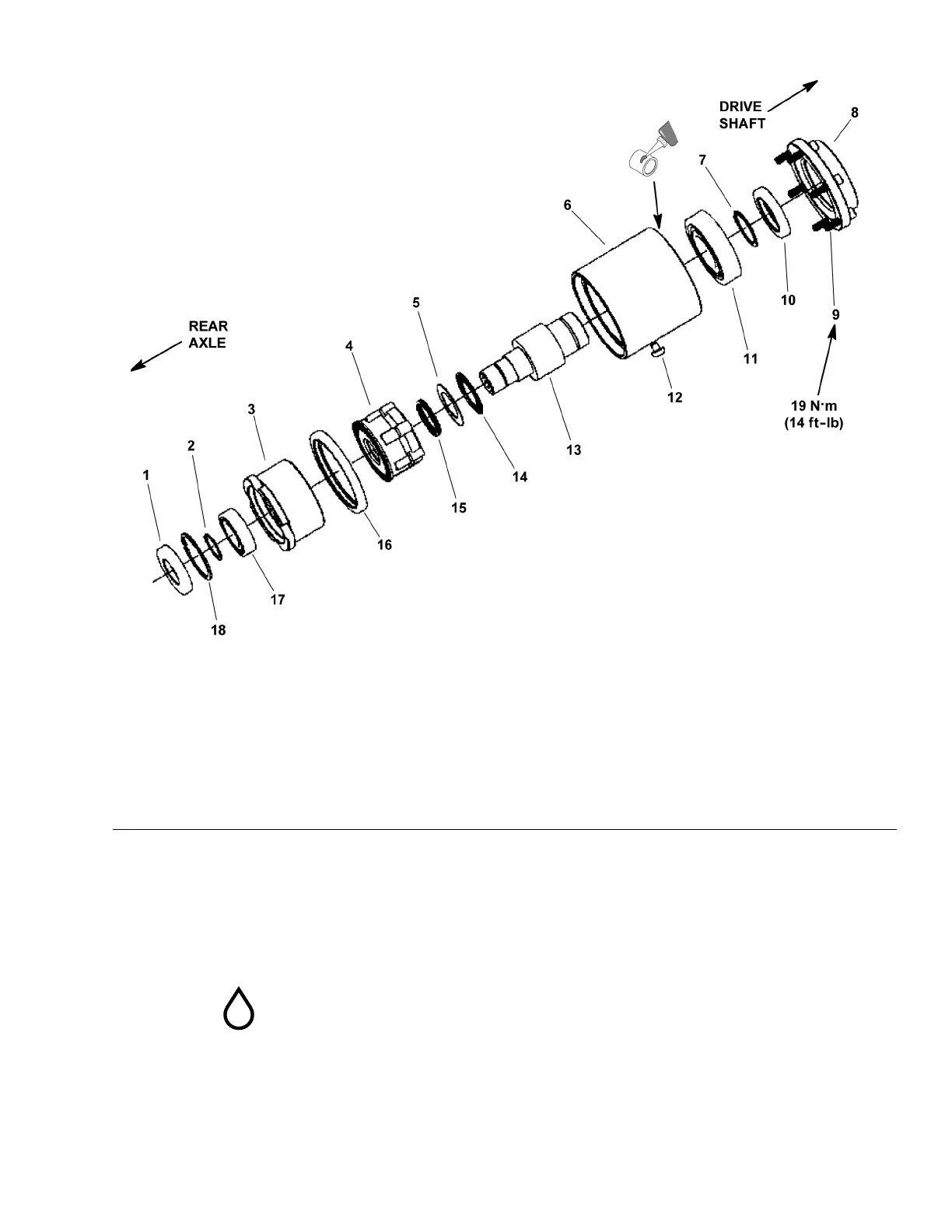

Figure288

1.Oilseal7.Snapring

13.Hub

2.Snapring

8.Endplate14.Needlebearing

3.Bearinghousing

9.Socket-headscrew(6each)

15.Wavespring

4.Rollercageassembly

10.Oilseal16.Oilseal

5.Thrustwasher11.Bearing17.Bearing

6.Housing

12.Phillips-headscrewwithO-ring

18.Retainingring

DisassemblingtheBi-DirectionalClutch(4-WheelDrive)

1.Cleantheexternalsurfaceoftheclutchbeforedisassembly.

2.DisassembletheclutchasshowninFigure288.

AssemblingtheBi-DirectionalClutch(4-WheelDrive)

1.LightlylubricatetheclutchcomponentswithacleanMobilFluid424before

assembly.

2.AssembletheclutchasshowninFigure288.

3.Whenyouinstalltheoilseals,ensurethattheseallipsarefacingin.

4.ApplyHylomarjointingcompound(orequivalent)totheendplate(item8in

Figure288)matingsurfacebeforeyouinstalltheendplate.

Groundsmaster

3280-D/3320

Page8–75

DriveAxles:ServiceandRepairs

05138SLRevB
