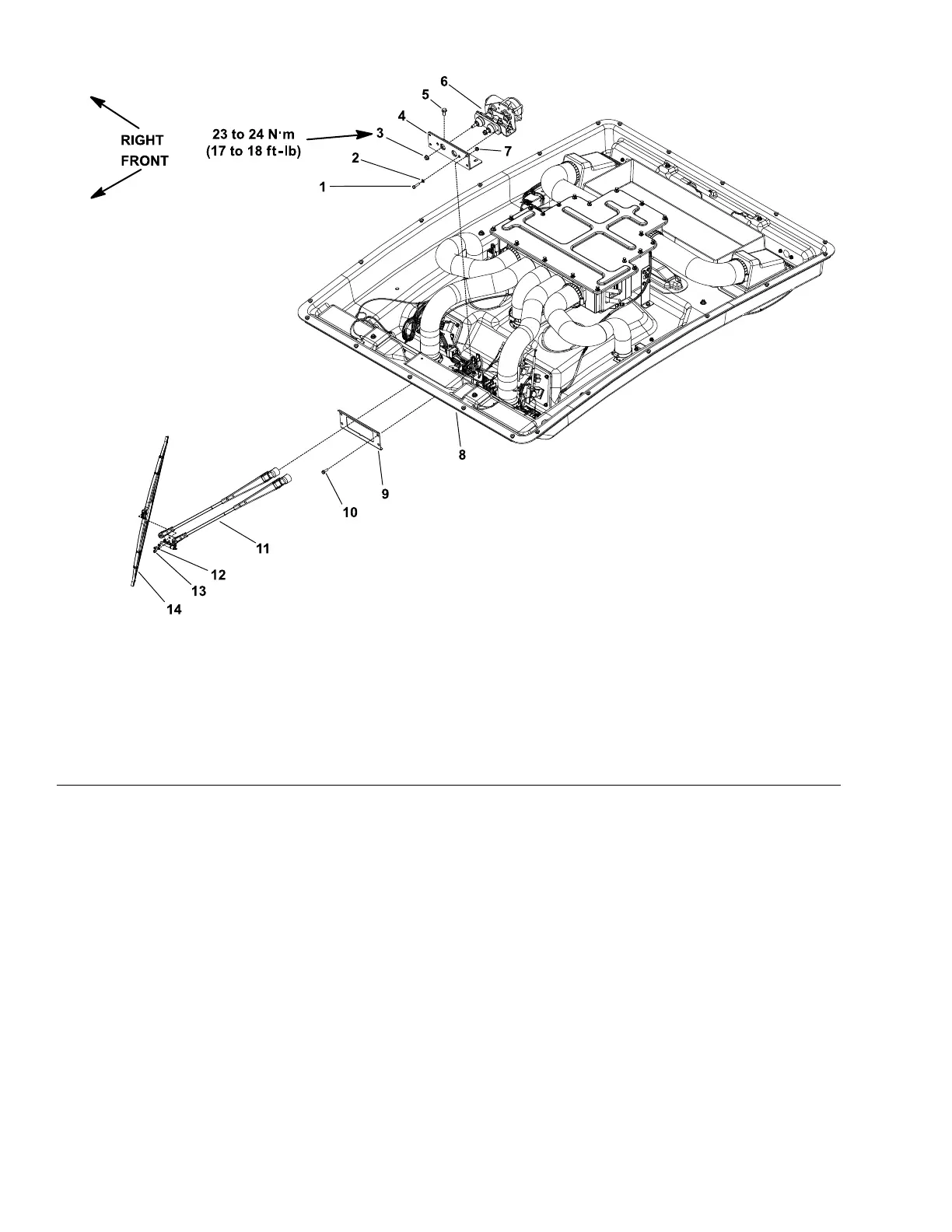

WindshieldWiperAssembly

g243015

Figure316

1.Bolt6.Wipermotor11.Wiperarmassembly

2.Lockwasher

7.Flangenut(4each)12.Lockwasher(2each)

3.Flangenut(2each)

8.Cabheadliner13.Screw(2each)

4.Wiperbracket9.Washerplate14.Wiperblade

5.Washer-headscrew(2each)10.Washer-headscrew(4each)

DisassemblingtheWindshieldWiperAssembly

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe

engine,settheparkingbrake,andremovethekeyfromthekeyswitch.

2.Removethe2screws(item13inFigure316)and2lockwashersthatsecure

thewiperbladetothewiperarmassembly,andremovethewiperblade.

3.Ifnecessary,removethewiperarmassemblyasfollows:

A.Disconnectthewasherhosefromthewiperassembly.

B.Liftthecapsatthetopofthewiperarmsandremovethe2angenuts

thatsecurethewiperarmstothewipermotor.

C.Useasuitablepullertoremovethetaperedwiperarmsocketsfromthe

wipermotorshafts.

4.Ifaccesstothewipermotorisnecessary,removetherooffromthetopof

thecabtogetaccesstothewipermotorassembly;refertoRemovingthe

RoofAssembly(page11–4).

5.RemovethewipermotorcomponentsasshowninFigure316.

OperatorCab:ServiceandRepairs

Page11–14

Groundsmaster

3280-D/3320

05138SLRevB
