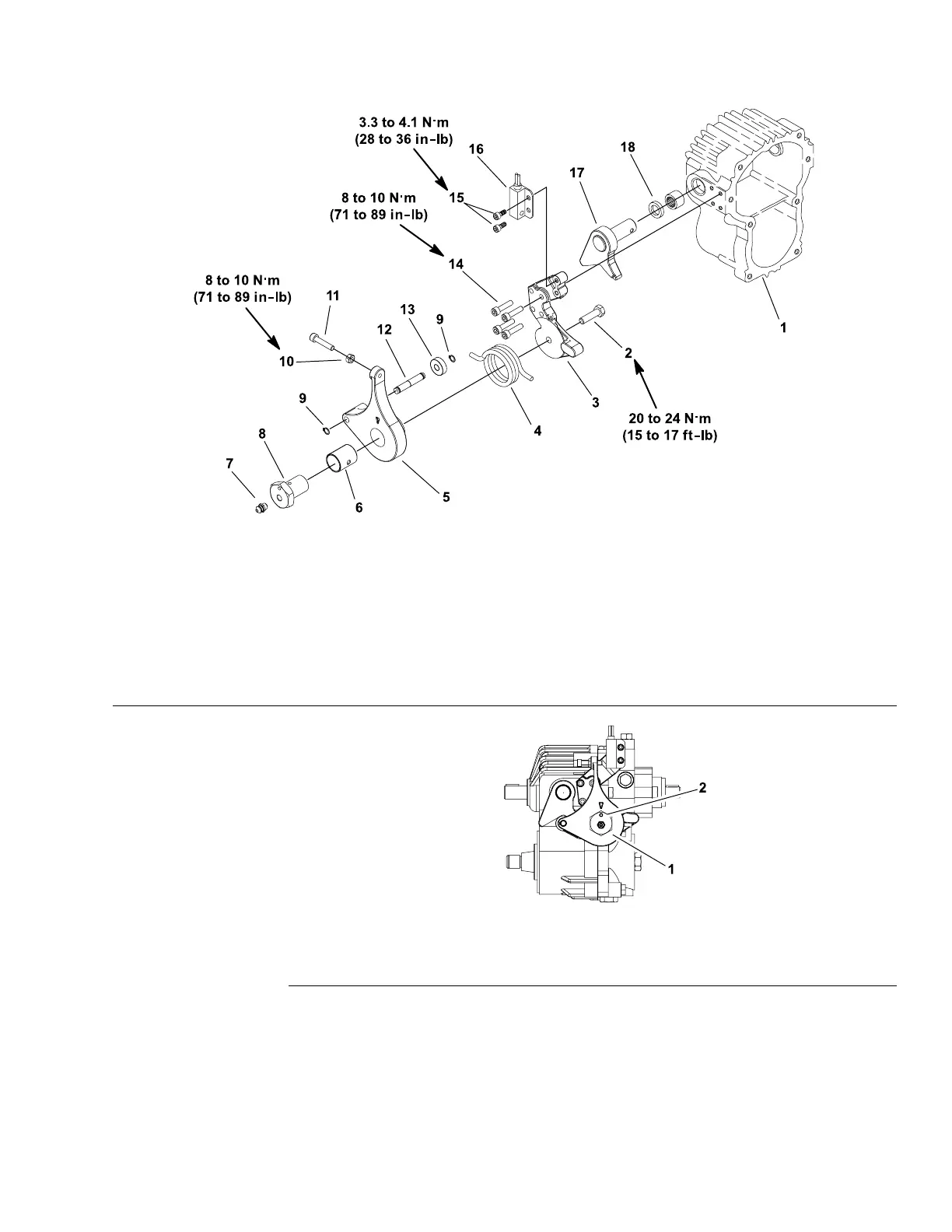

HydrostaticTransmissionNeutralArmAssembly(MachineSerial

Numberbelow316000000)

g230837

Figure83

1.Transmissionhousing

7.Greasetting

13.Bearing

2.Bolt8.Eccentricpin

14.Socket-headscrew(4each)

3.Mountingplate9.Retainingring

15.Socket-headscrew

4.Neutralreturnspring10.Jamnut16.Neutralproximityswitch

5.Neutralreturnarm

11.Socket-headscrew

17.Trunnioncam

6.Bushing12.Pin

18.Seal

g230838

Figure84

1.Eccentricpin2.Alignmentmark

DisassemblingtheHydrostaticTransmissionNeutralArmAssembly

1.Disassembleneutralarmcomponentsonhydrostatictransmissionas

necessary(Figure83).

Note:T oremovetrunnioncam(item17inFigure83)fromhydrostatic

transmission,transmissionhastobedisassembled.

Groundsmaster

3280-D/3320

Page5–95

HydraulicSystem:ServiceandRepairs

05138SLRevB
