Fuses(MachineSerialNumberbelow400000000)
g230995

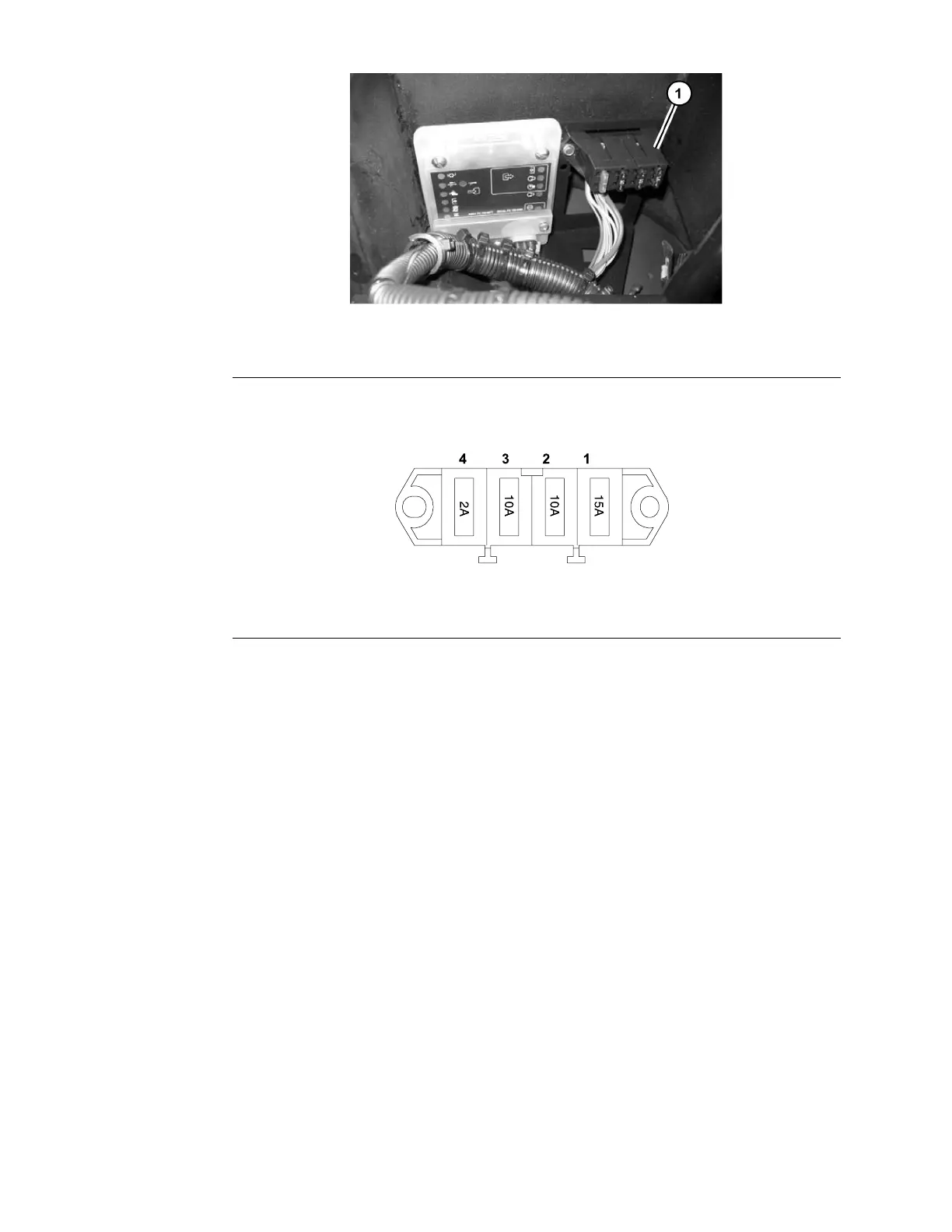

Figure121
1.Fuseblock
Thefuseblockislocatedunderthecontrolpanel(Figure121).
g230996
Figure122
Identiîš¿cationandFunction
Thefusesareheldinthefuseblock.UseFigure122toidentifyeachindividual
fuseanditscorrectamperage.Eachfuseholderhasthefollowingfunction.
Fuse1(15A):ProtectsmainpowercircuittokeyswitchterminalB.
Fuse2(10A):ProtectspowercircuitfromkeyswitchterminalS.
Fuse3(10A):ProtectspowercircuitfromkeyswitchterminalI.
Fuse4(2A):ProtectspowersupplytoStandardControlModule.
TestingtheFuses
Removefusesfromthefuseblockfortesting.Fuseshouldhavecontinuity
betweenfuseterminals.
ElectricalSystem:TestingtheElectricalComponents
Page6–22
