Relays(Groundsmaster3280-D)

TheGroundsmaster3280-Dmachineuses3identicalelectricalrelaysthat

have4terminals.Atagnearthewireharnessrelayconnectorcanbeused

toidentifyeachrelay.

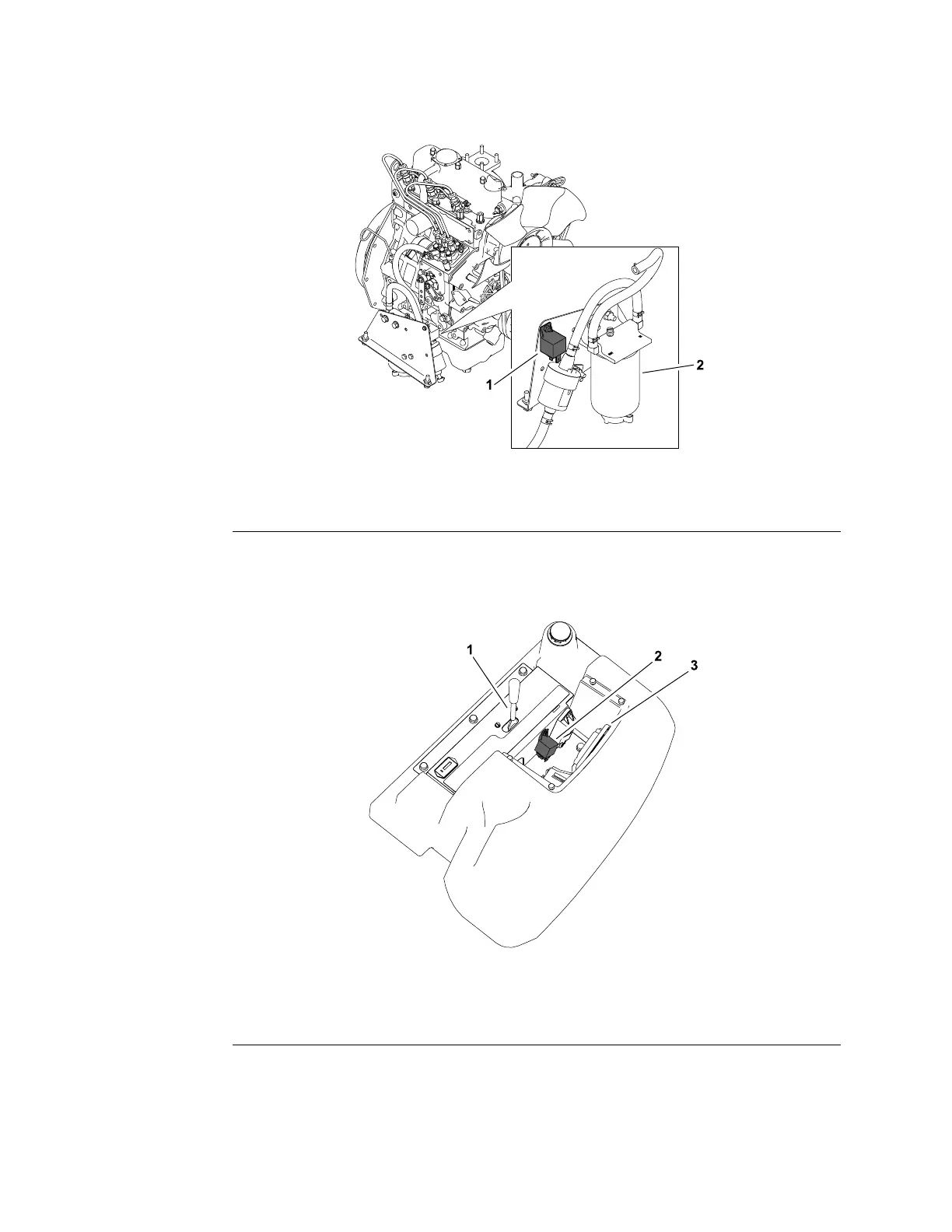

g225179

Figure159

1.Glowrelay2.Fuel/waterseparator

Theglowrelayusedisattachedtothesupportbracketinsidetherightsideframe

nearthefuel/waterseparator(Figure159).Whenenergized,theglowrelay

allowselectricalcurrenttotheengineglowplugs.

g225178

Figure160

1.Throttlecontrollever

2.Accessoryrelay(if

equipped)

3.SCM

Theaccessoryrelay(ifequipped)islocatedunderthecontrolconsolenear

theSCM(Figure160).Whenenergized,theaccessoryrelayallowselectrical

currenttooptionalaccessories.

ElectricalSystem:TestingtheElectricalComponents

Page6–60

Groundsmaster

3280-D/3320

05138SLRevB
