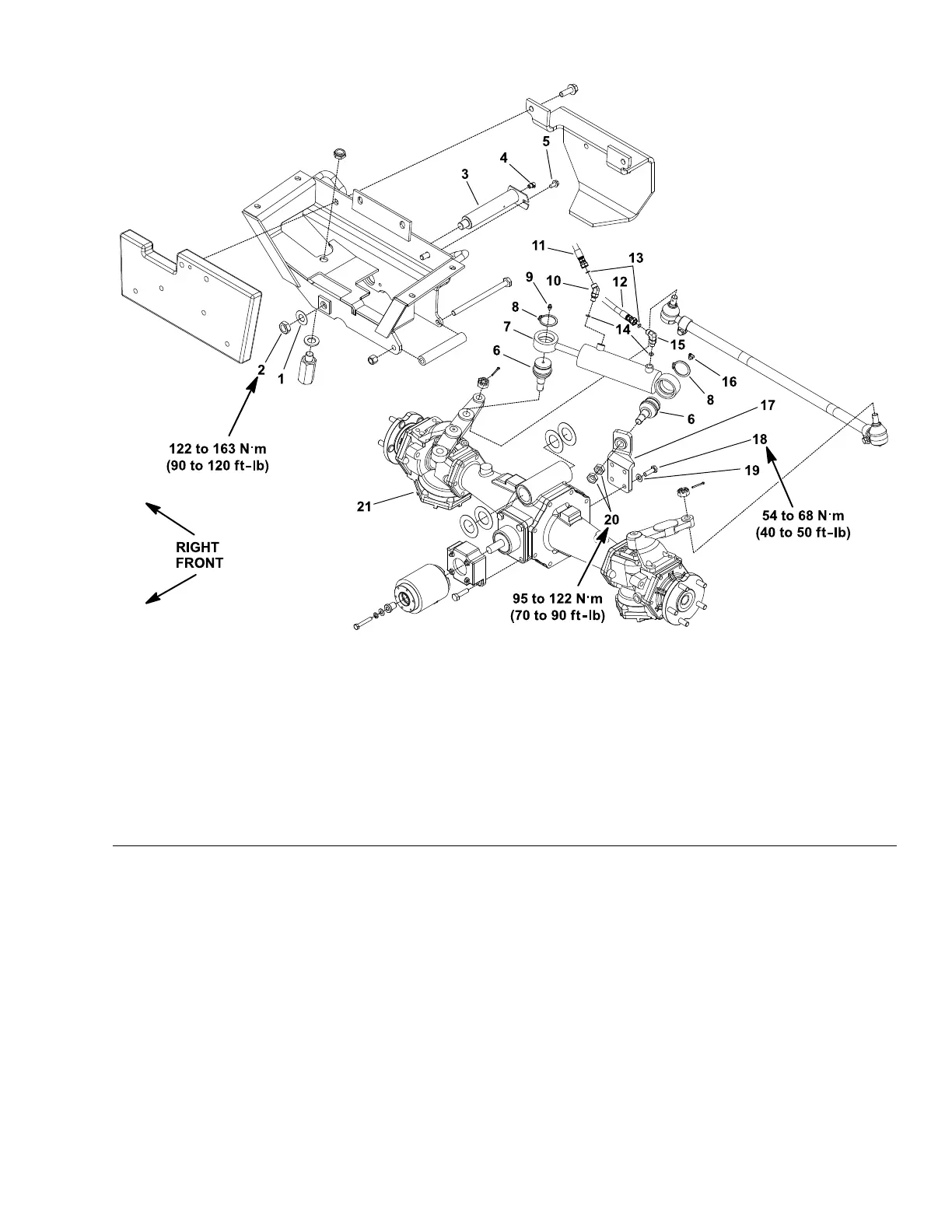

SteeringCylinder(4-WheelDrive)
g225055
Figure100
1.Thrustwasher
8.Retainingring(2each)15.90°hydraulictting
2.Jamnut
9.Greasetting16.45°lubetting
3.Rearaxlepin
10.45°hydraulictting17.Steeringcylindersupportbracket
4.90°greasetting
11.Hydraulichose
18.Bolt(4each)
5.Washer-headscrew12.Hydraulichose
19.Washer(4each)
6.Balljoint(2each)13.O-ring(2each)20.Jamnut(4each)
7.Steeringcylinder14.O-ring(2each)21.Rearaxle(4-wheeldrive)
RemovingtheSteeringCylinder(4-WheelDrive)
1.Parkthemachineonalevelsurface,lowerthecuttingdeck(orimplement),
shutofftheengine,settheparkingbrake,andremovethekeyfromthe
keyswitch.
2.ReadtheGeneralPrecautionsforRemovingandInstallingtheHydraulic
SystemComponents(page5–77).
Groundsmaster
®
3280-D/3320
Page5–123
HydraulicSystem:ServiceandRepairs
05138SLRevB
