HydrostaticTransmission(MachineSerialNumbersbelow
316000000)
g230835

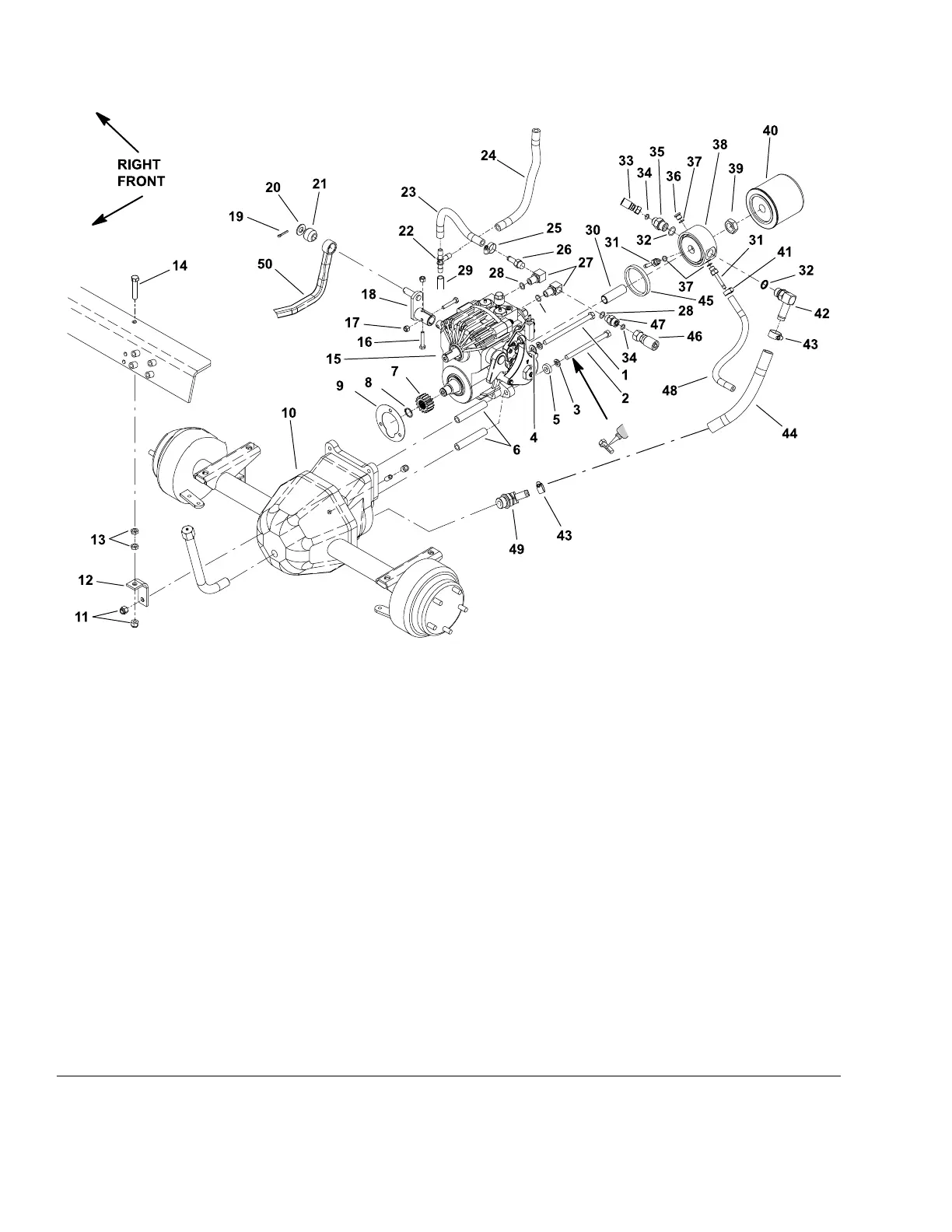

Figure81
1.Bolt18.Pumplever35.Adapter
2.Bolt(3each)19.Cotterpin
36.Plug
3.Lockwasher(4each)
20.Flatwasher
37.O-ring
4.Flatwasher21.Rubberbushing38.Filteradapter
5.Spacer22.Hydraulicteetting
39.Jamnut
6.Mountingspacer(4each)
23.Hydraulichose
40.Hydrauliclter
7.Piniongear24.Hydraulichose41.Hoseclamp
8.Snapring
25.Hoseclamp
42.Elbowtting
9.Transmissiongasket
26.Hydraulictting
43.Hoseclamp
10.Frontaxleassembly
27.Hydraulictting
44.Hydraulichose
11.Locknut
28.O-ring
45.Filteradapterseal
12.Transmissionanchor29.Hydraulichose46.Hydraulichose
13.Jamnut30.Filterunion
47.Straighthydraulictting
14.Bolt
31.Hydraulictting
48.Hydraulichose
15.Transmission
32.O-ring49.Elbowtting
16.Bolt(2each)
33.Hydraulichose50.Tractionrod
17.Locknut(2each)34.O-ring
HydraulicSystem:ServiceandRepairs
Page5–90
Groundsmaster
®
3280-D/3320
05138SLRevB
