RearAxleDriveshaft(4-WheelDrive)
g226458

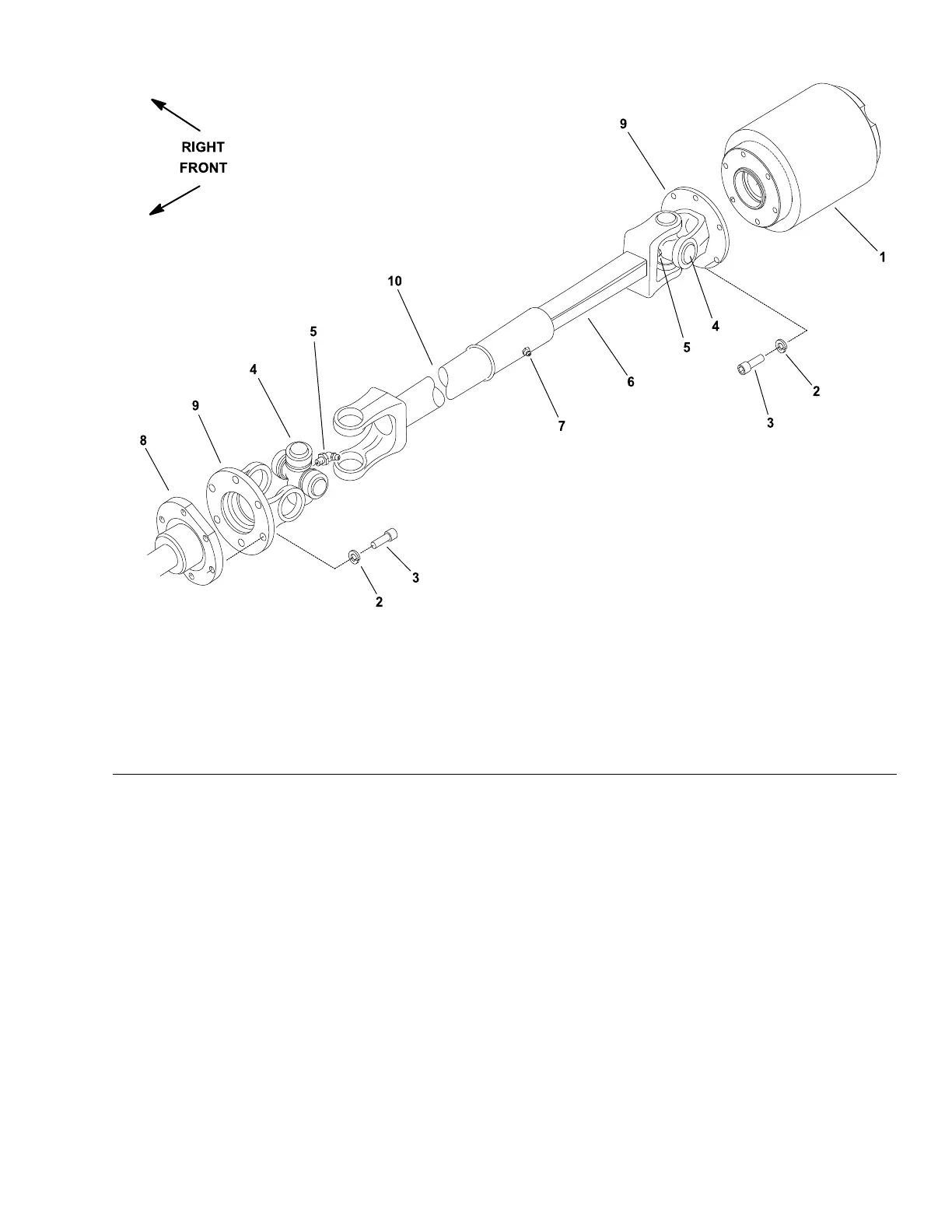

Figure253
1.Bi-directionalclutch
5.Greasetting(2each)9.Yokeange(2each)
2.Lockwasher(6eachperange)
6.Yokeandshaft
10.Yokeandtube
3.Socket-headscrew(6eachper
ange)
7.Greaseîš¿tting
4.Crossandbearingkit(2each)8.Frontaxleange
RemovingtheRearAxleDriveshaft(4-WheelDrive)
1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe
engine,settheparkingbrake,andremovethekeyfromthekeyswitch.
2.Supportthedriveshafttopreventitfromfalling.
3.Removethe6socket-headscrewsand6lockwashersthatsecurethe
driveshaftfrontyokeangetothefrontaxleange(item8inFigure253).
4.Removethe6socket-headscrewsand6lockwashersthatsecurethe
driveshaftrearyokeangetothebi-directionalclutch(item1inFigure253).
5.Removetherearaxledriveshaftfromthemachine.
Groundsmaster
®
3280-D/3320
Page8–43
DriveAxles:ServiceandRepairs
05138SLRevB
