OperatorCabFuses(MachineswithOperatorCab)

g243422

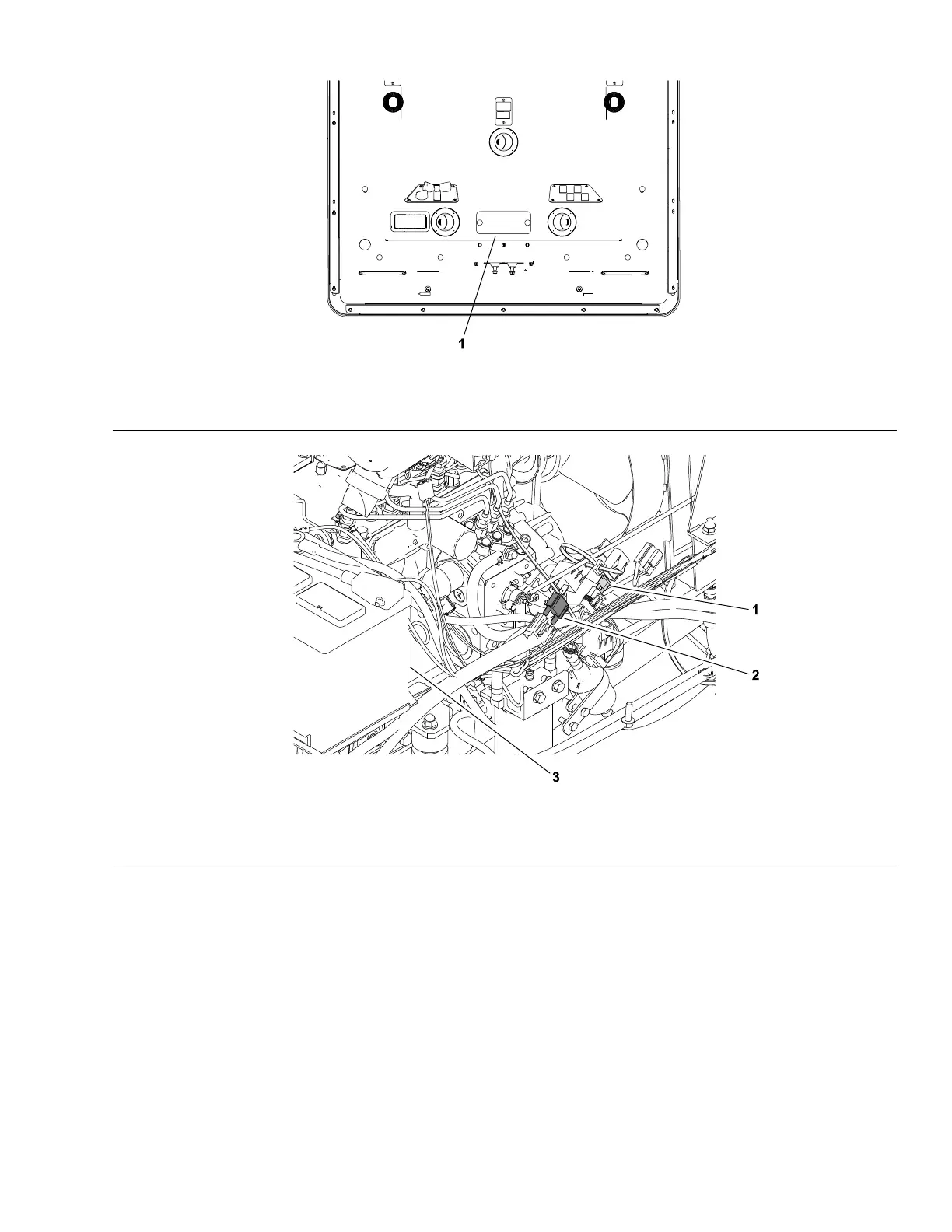

Figure125

1.Fuseblockslocation

g243782

Figure126

1.10Afuse2.60Amaxi-fuse

3.Battery

Theoperatorcabfuseblocksarelocatedinthecabheadliner(Figure125).

Inadditiontothecabfusesinthefuseblocks,thereare2additionalfuses

includedinthecabwireharness.Thesefusesplugintothefuseholdersnearthe

battery(Figure126).Thefuseshavethefollowingfunctions:

60Amaxi-fuse:Protectstheunswitchedcabpowercircuit.

10Afuse:Protectstheunswitchedcabradiopower.

Groundsmaster

3280-D/3320

Page6–25

ElectricalSystem:TestingtheElectricalComponents

05138SLRevB
