IdenticationandFunction

g244181

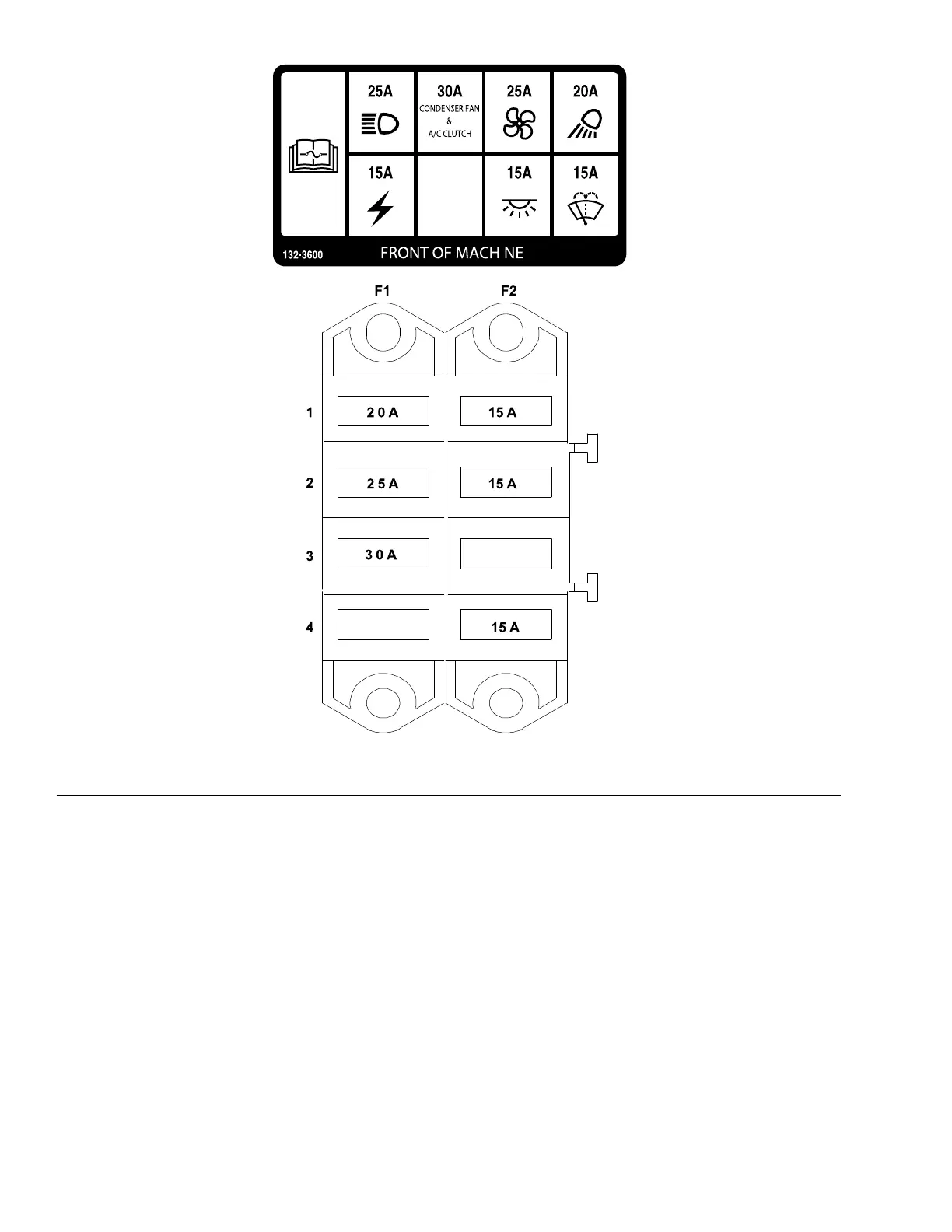

Figure127

RefertoFigure127toidentifyeachindividualfuseanditscorrectamperage.

Thefuseshavethefollowingfunctions.

FuseF1-1(20A):Protectsthecabworklightcircuit.

FuseF1-2(25A):Protectstheblowerfancircuit.

FuseF1-3(30A):Protectstheairconditionercompressorclutchcircuit.

FuseF2-1(15A):Protectsthewindshieldwiper/washercircuit.

FuseF2-2(15A):Protectsthecabdomelightcircuit.

FuseF2-4(15A):Protectstheauxiliarypowercircuit.

FusesF1-4andF2-3areavailableforoptionalequipment.

TestingtheFuses

EnsurethatthekeyswitchisintheOFFpositionandthekeyisremovedfromthe

switch.Removethefusesfromthefuseblockfortesting.Thefuseshouldhave

continuitybetweenthefuseterminals.

ElectricalSystem:TestingtheElectricalComponents

Page6–26

Groundsmaster

3280-D/3320

05138SLRevB
