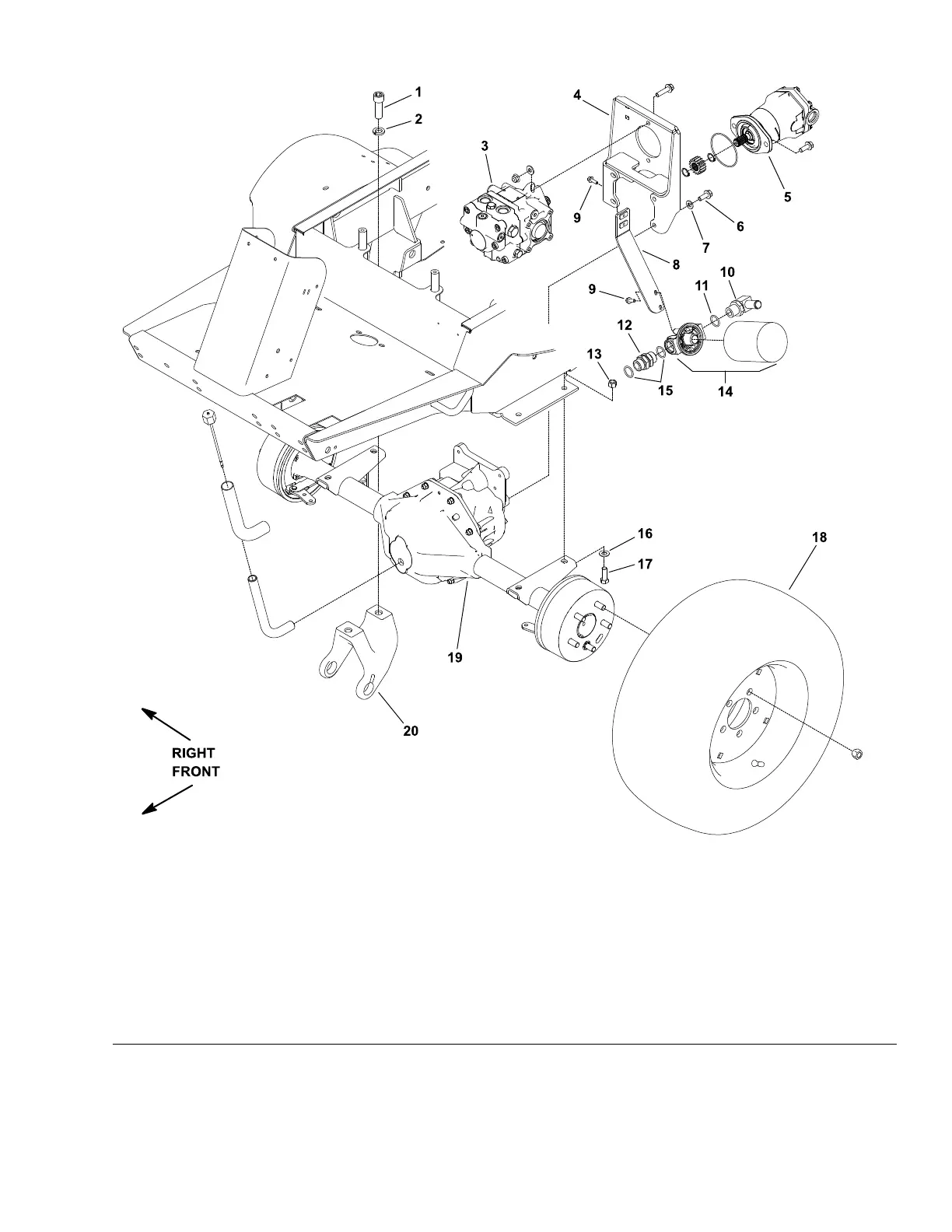

FrontAxle(MachineSerialNumberafter316000000)
g225897
Figure212
1.Socket-headscrew(4each)
8.Filterbracket
15.O-ring(2each)
2.Lockwasher(4each)9.Flange-headscrew(4each)16.Flatwasher(4each)
3.Hydraulicpump
10.90°hydraulictting17.Bolt(4each)
4.Pumpbracket
11.O-ring
18.Frontwheelassembly
5.Hydraulicmotor
12.Straightthreadîš¿tting
19.Frontaxle
6.Flange-headscrew(4each)13.Locknut(4each)20.Carrierbracket(2each)
7.Hardenedwasher
14.Oilîš¿lter
Groundsmaster
®
3280-D/3320
Page8–19
DriveAxles:ServiceandRepairs
05138SLRevB
