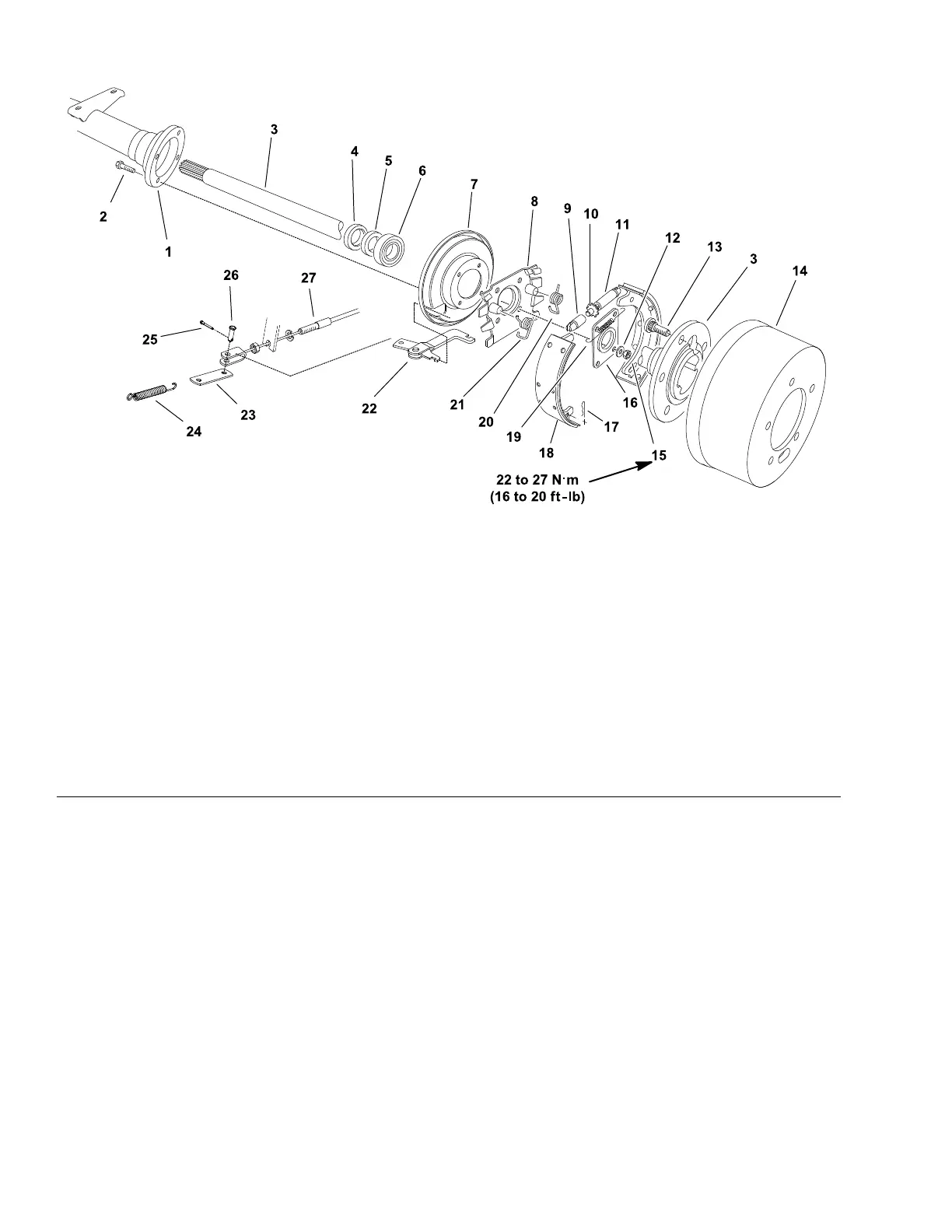

FrontAxleShaftsandBearings

g225902

Figure197

1.Frontaxlehousing

10.Starwheeladjuster

19.Adjusterspring

2.Socket-headscrew(4eachper

wheel)

11.Pivotnut

20.Returnspring(right)

3.Axleshaft12.Hardenedwasher(4eachper

wheel)

21.Returnspring(left)

4.Inneraxleoilseal

13.Wheelstud(5eachperwheel)

22.Brakelever

5.Bearingretainer14.Brakedrum23.Brakecablelink

6.Bearing

15.Locknut(4eachperwheel)

24.Brakereturnspring

7.Dustshield

16.Outersealplate25.Cotterpin

8.Brakespider17.Brakeleverretainer

26.Clevispin

9.Starwheelsocket

18.Brakeshoe27.Brakecable

Note:Itisnotnecessarytoremovethefrontaxleassemblyfromthemachine

whenservicingthefrontaxleshafts.

DriveAxles:ServiceandRepairs

Page8–8

Groundsmaster

3280-D/3320

05138SLRevB
