FrontAxle(MachineSerialNumberbefore316000000)
g230990

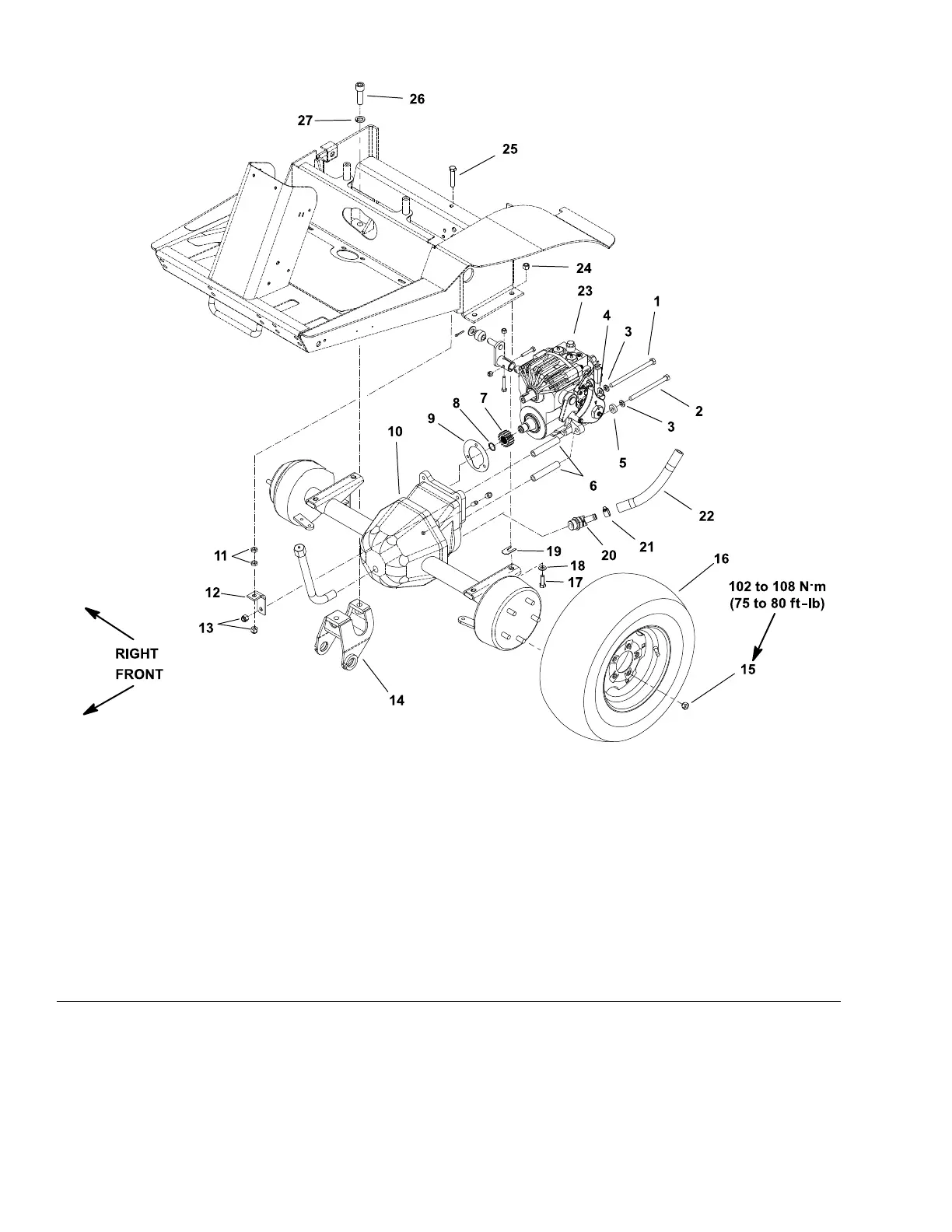

Figure210
1.Bolt10.Frontaxleassembly
19.Axleshim(asnecessary)
2.Bolt(3each)
11.Jamnut
20.Hydraulicîš¿tting
3.Lockwasher(4each)
12.Transmissionanchor21.Hoseclamp
4.Flatwasher13.Locknut22.Hydraulichose
5.Spacer14.Carrierbracket(2each)
23.Transmission
6.Mountingspacer(4each)15.Wheel-lugnut(5eachperwheel)24.Locknut(4each)
7.Piniongear16.Tireandwheelassembly25.Bolt
8.Snapring17.Bolt(4each)26.Socket-headscrew(4each)
9.Gasket18.Flatwasher(4each)27.Lockwasher(4each)
DriveAxles:ServiceandRepairs
Page8–16
Groundsmaster
®
3280-D/3320
05138SLRevB
