ServicingtheLiftControlValve(MachineSerialNumbersbelow

311000000)

g230842

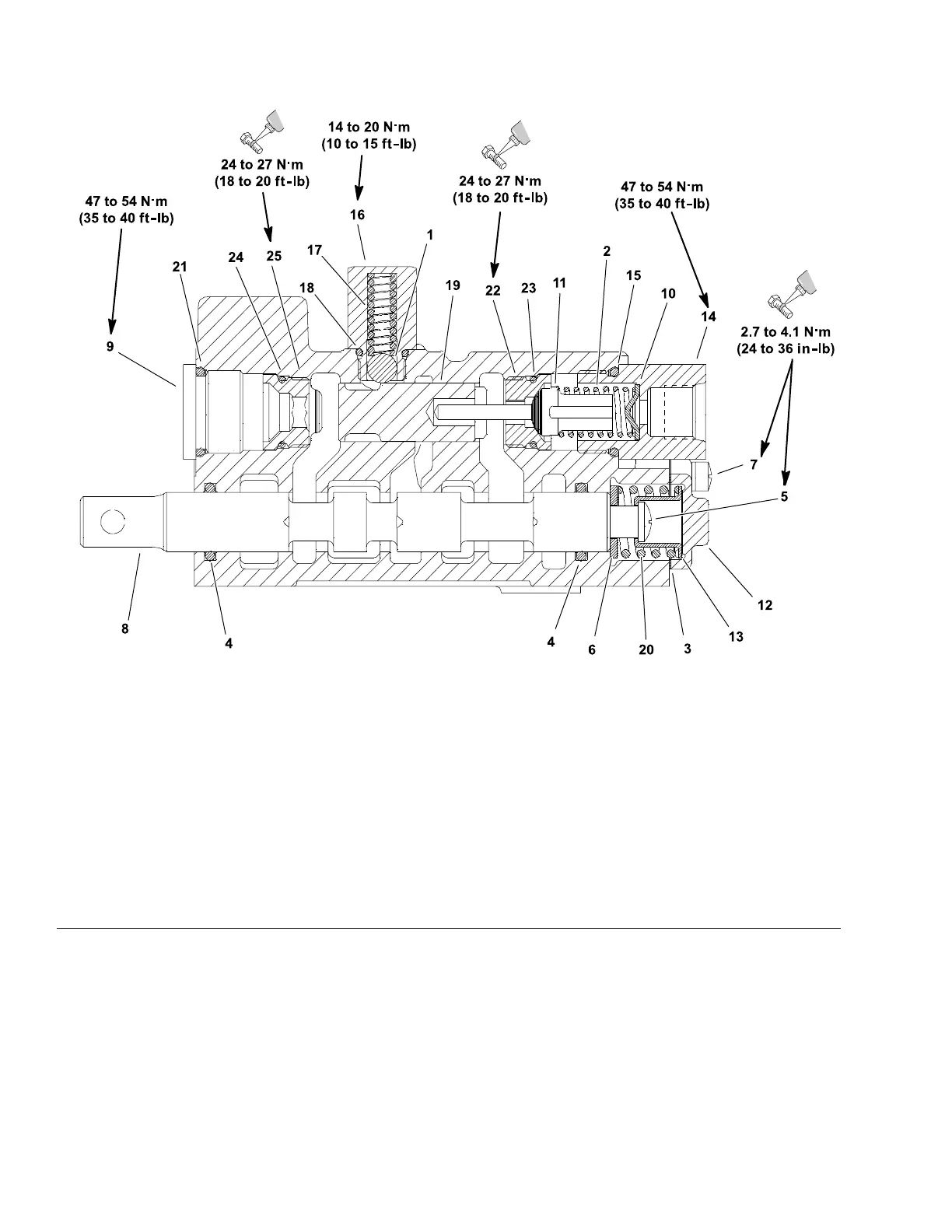

Figure104

1.Detentball10.Poppetstop19.Detentplunger

2.Spring

11.Poppet

20.Spring

3.Gasket

12.Endcap

21.O-ring

4.O-ring13.Spacer22.Lockoutseat(black)

5.Screw

14.Adapterplug

23.O-ring

6.Washer

15.O-ring24.O-ring

7.Screwandlockwasher(2each)

16.Detentplug

25.Lockoutseat(silver)

8.Spool17.Spring

9.Plug

18.O-ring

DisassemblytheLiftControlValve

1.Plugallportsandcleantheoutsideofcontrolvalve.

2.Remove2screwsandlockwashers(item7inFigure104)thatsecureend

captocontrolvalve.Removeendcap.

3.Removescrew(item5inFigure104),spacer,spring,andwasherfrom

controlvalve.

4.Carefullyslidespool(item8inFigure104)fromhousingbore.

HydraulicSystem:ServiceandRepairs

Page5–130

Groundsmaster

3280-D/3320

05138SLRevB
