TestingtheSteeringCircuit–SteeringControlValve,ReliefValve
Pressure,andSteeringCylinder(MachineSerialNumbersabove
316000000)

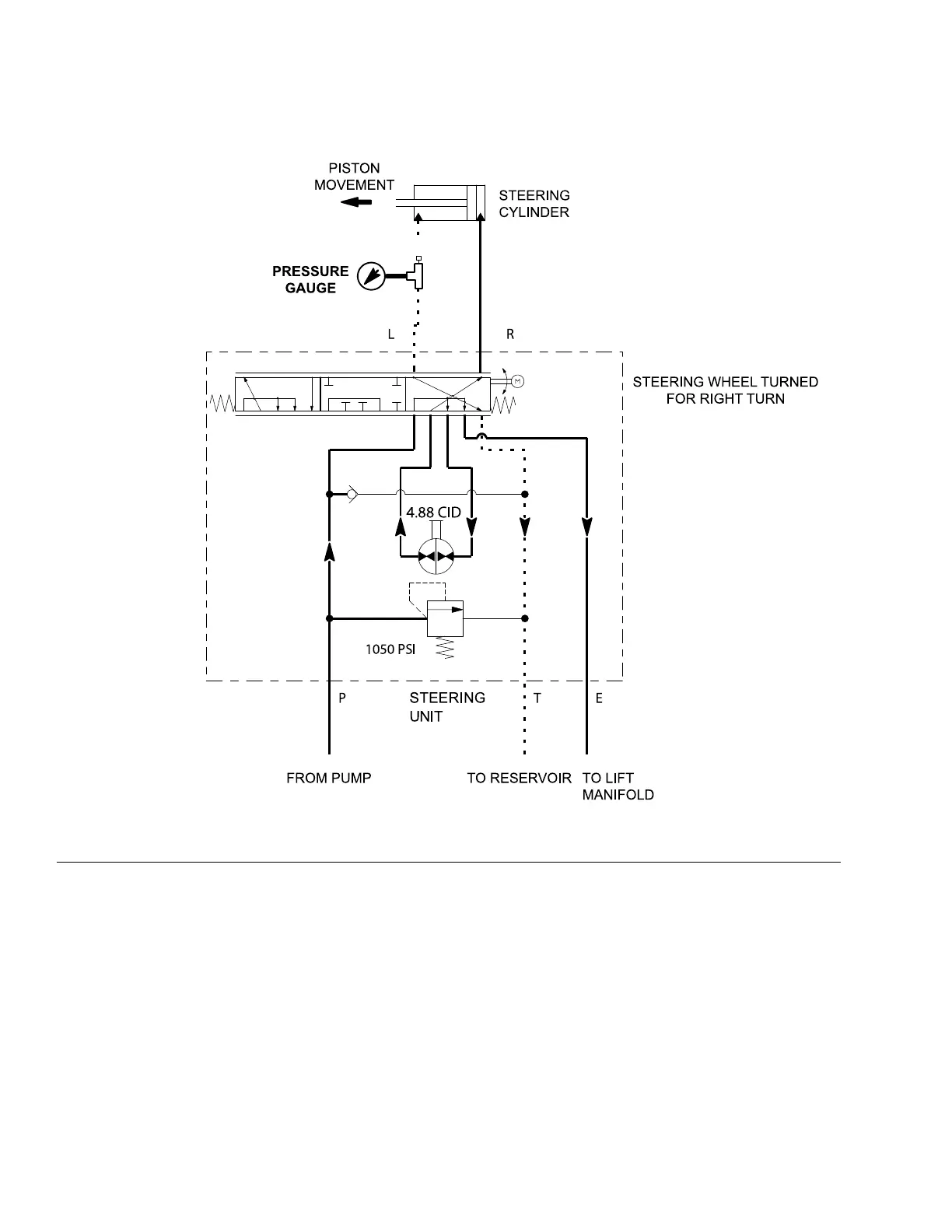

g224913
Figure71
Unitsteeringperformancewillbeaffectedbyincorrectreartirepressure,binding
inthehydraulicsteeringcylinder,extraweightonthevehicle,and/orbindingof
thesteeringforks.Ensurethattheseconditionsarecheckedandfunctioning
properlybeforeproceedingwithanysteeringsystemhydraulictesting.
Note:Thereliefvalveforthesteeringcircuitisintegratedintothesteering
controlvalve.
TestProcedure
1.Ensurethatthehydraulicuidisatnormaloperatingtemperatureby
operatingthemachineforatleast10minutes.
2.Drivethemachineslowlyinagureeightonaatlevelsurface.
HydraulicSystem:TestingtheHydraulicSystem
Page5–66
Groundsmaster
®
3280-D/3320
05138SLRevB
