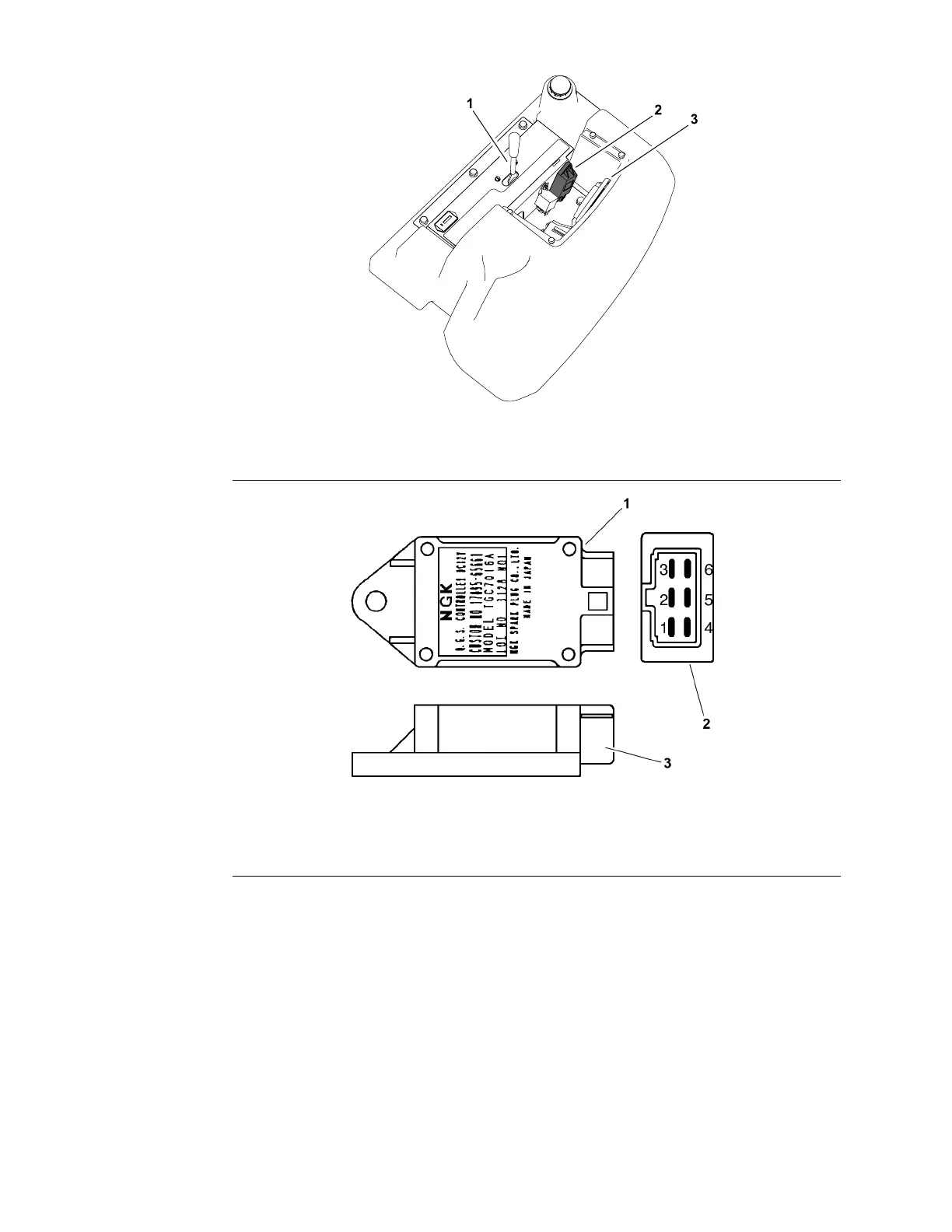

GlowController(Groundsmaster3280-D)

g227149

Figure168

1.Throttlecontrollever

2.Glowcontroller3.SCM

g227537

Figure169

1.T opview

2.Glowcontrollerendview3.Slideview

TheglowcontrollerusedontheGroundsmaster3280-Dmachineislocated

underthecontrolpanel(Figure168).

Note:RefertotheElectricalSchematicsinAppendixA(pageA–1)when

troubleshootingtheglowcontrollercircuit.

ControllerOperation

1.WhenthekeyswitchisturnedtotheRUNposition,thecontrollerenergizes

theglowplugsandlightsuptheglowlampforapproximately6seconds.

2.WhenthekeyswitchisheldintheSTARTposition,theglowplugswill

energizewhiletheswitchisheldinSTARTandtheglowlampwillnotlight.

3.WhenthekeyswitchisreleasedfromSTARTtoRUN,theglowplugswill

de-energizeandtheglowlampwillremainoff.

ElectricalSystem:TestingtheElectricalComponents

Page6–68

Groundsmaster

3280-D/3320

05138SLRevB
