RearAxle(4-WheelDrive)
g226663

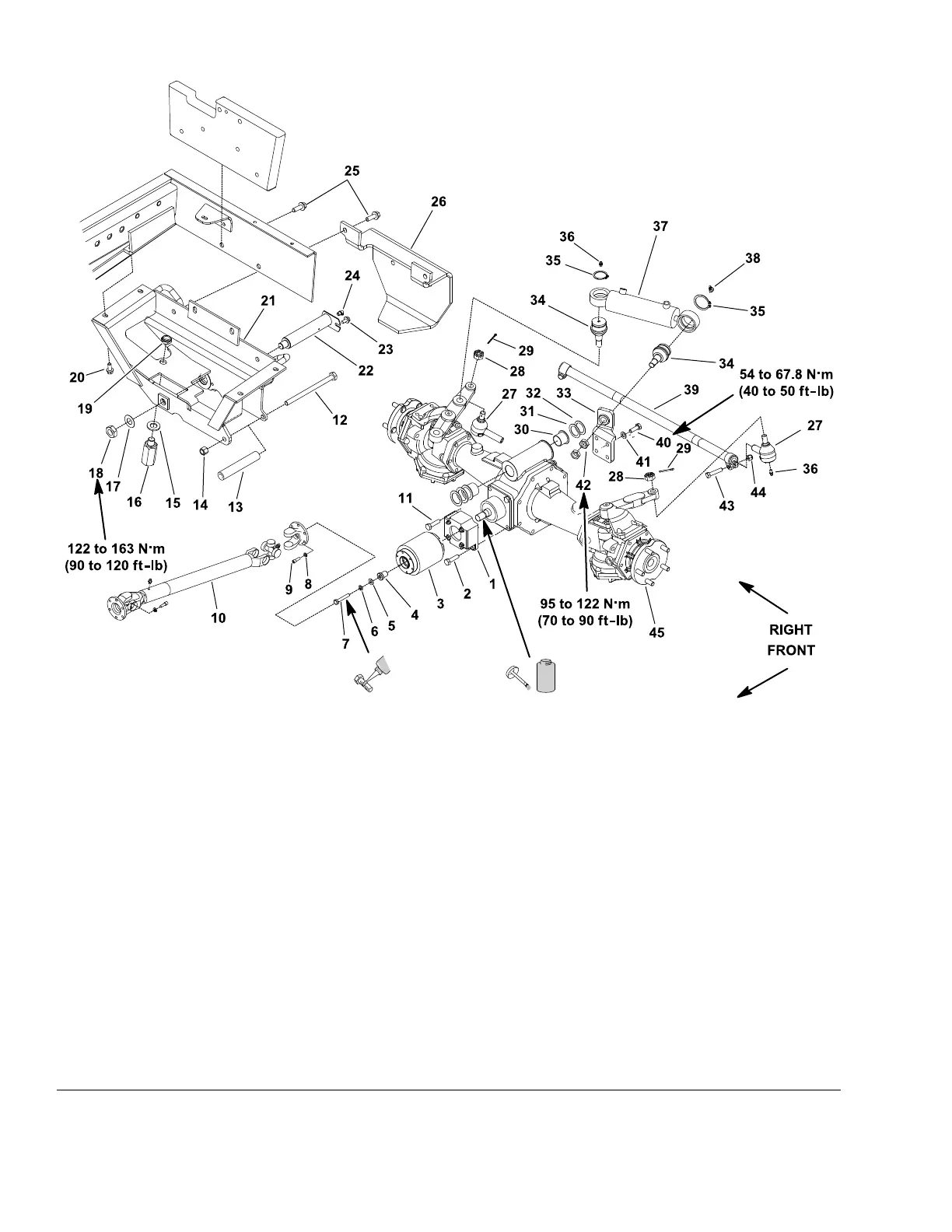

Figure255
1.Clutchlocatoradapter16.Oscillationstop31.Thrustwasher(asnecessary)
2.Bolt(2each)
17.Thrustwasher
32.Thrustwasher(asnecessary)
3.Bi-directionalclutch18.Jamnut
33.Steeringcylindersupportbracket
4.Spacer
19.Locknut
34.Steeringcylinderballjoint(2each)
5.Flatwasher
20.Flange-headscrew(4each)35.Retainingring(2each)
6.Lockwasher21.Axlesupport
36.Greasetting
7.Bolt22.Axlepin
37.Steeringcylinder
8.Lockwasher(6each)
23.Washer-headscrew
38.Greasetting
9.Socket-headscrew(6each)24.Greasetting
39.Tierod
10.Driveshaftassembly25.Flange-headscrew(4each)40.Bolt(4each)
11.Bolt(2each)
26.Rearbumper
41.Washer(4each)
12.Bolt
27.Tierodend(2each)42.Jamnut(4each)
13.Axlestop
28.Slottedhexnut(2each)43.Bolt(2each)
14.Locknut
29.Cotterpin(2each)44.Locknut(2each)
15.Flatwasher
30.Flangebushing(2each)
45.Rearaxleassembly
DriveAxles:ServiceandRepairs
Page8–46
Groundsmaster
®
3280-D/3320
05138SLRevB
