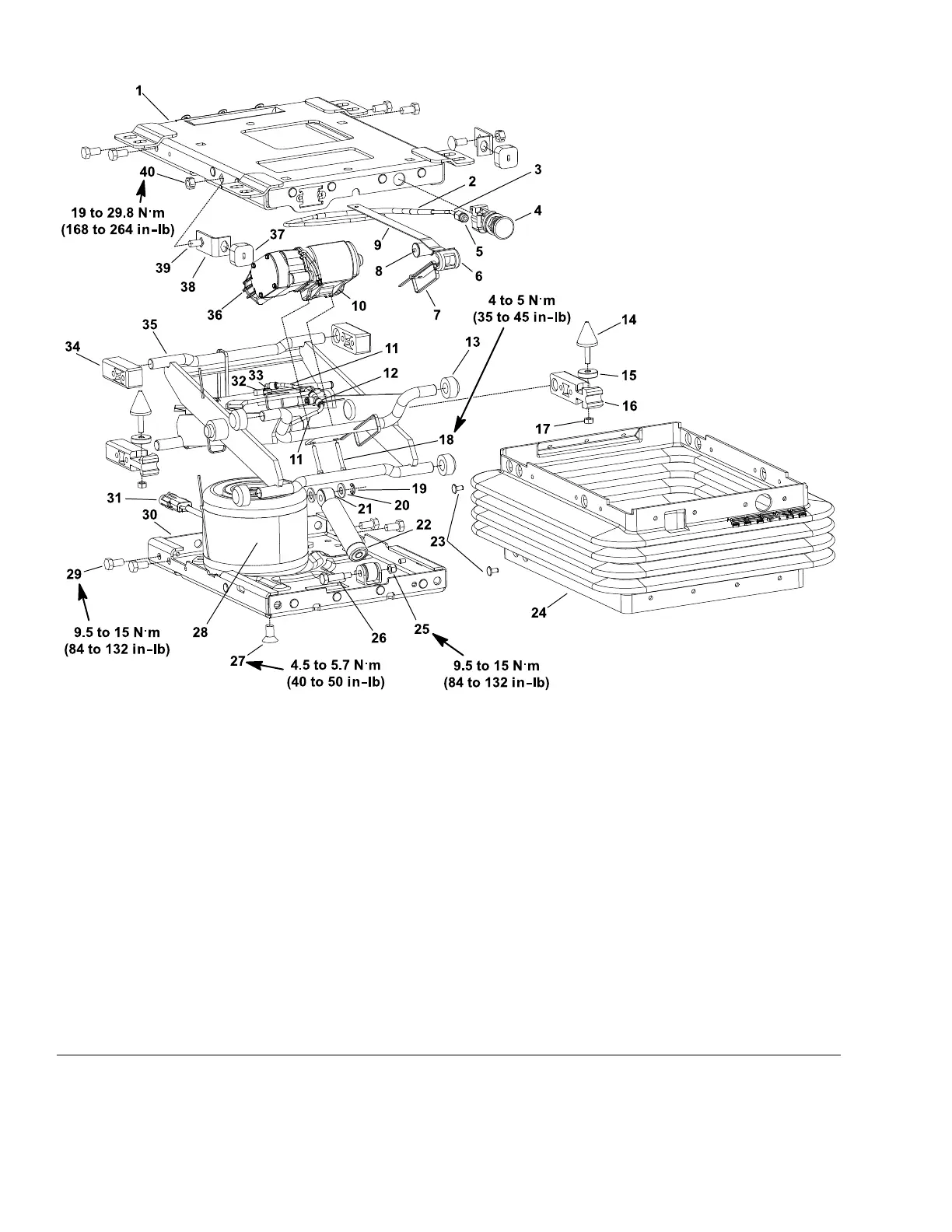

PneumaticSeatSuspension

g223803

Figure188

1.Upperhousing

15.Bumperspacer(2each)29.Threadformingscrew(8each)

2.Convolutedtubing16.Scissorpivotblock(2each)

30.Lowerhousing

3.Nylontubing

17.Hexnut(2each)

31.Wireharness

4.Aircontrolvalve

18.Flange-headscrew(2each)

32.Bolt

5.Connector

19.Retainingring

33.90°elbowstud

6.Weighttapeguide

20.Flatwasher(2each)34.Shaftblock(2each)

7.Cabletie(9each)21.Shockbushing(4each)35.Scissorassembly

8.Weighttaperoller22.Damper

36.Compressor

9.Weighttapeadjuster

23.Clip(21each)37.Bumper(2each)

10.Compressorclamp24.Suspensionboot38.Upstopbracket(2each)

11.Nylontubing(2each)

25.Locknut

39.Carriagebolt(2each)

12.T eetting26.Shockmountbolt40.Locknut(2each)

13.Roller(4each)27.Screw

14.Downstopbumper(2each)

28.Airspring

Chassis:ServiceandRepairs

Page7–24

Groundsmaster

3280-D/3320

05138SLRevB
