HourMeter

g225181

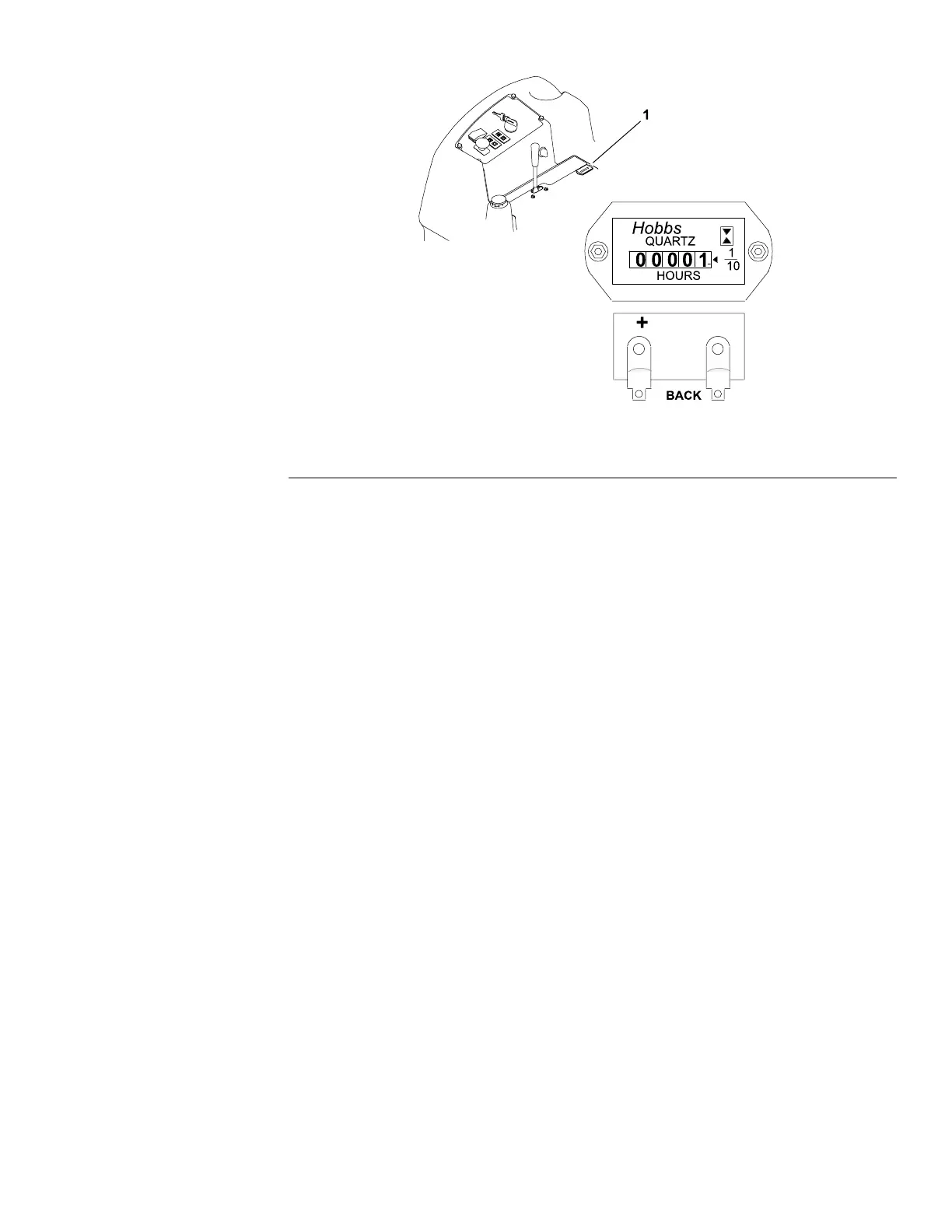

Figure132

1.Hourmeter

Thehourmeterrecordsanddisplaysaccumulatedhoursofengineoperation

(Figure132).

TestingtheHourMeter

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,settheparking

brake,andshutofftheengine.

2.EnsurethatthekeyswitchisintheOFFposition.Locatethehourmeterand

disconnectthewireharnesselectricalconnectorfromthehourmeter.

3.Connectthepositive(+)terminalofa12VDCsourcetothepositiveterminal

ofthehourmeter.

4.Connectthenegative(-)terminalofthevoltagesourcetotheotherterminal

ofthehourmeter.

5.Thehourmetershouldmove1/10ofanhourin6minutes.

6.Disconnectthevoltagesourcefromthehourmeter.

7.Replacethehourmeterifnecessary.

8.Connectthewireharnesselectricalconnectortothehourmeter.

Groundsmaster

3280-D/3320

Page6–31

ElectricalSystem:TestingtheElectricalComponents

05138SLRevB
