GlowPlugIndicatorLight

TheglowpluglightonGroundsmaster3280-Dmachinesshouldcomeonwhen

thekeyswitchisplacedintheONpositionbeforeplacingthekeyswitchinthe

STARTposition.Thelightshouldstaylitforapproximately6secondswhilethe

keyswitchisleftintheONposition.

TestingtheIndicatorLights

g226816

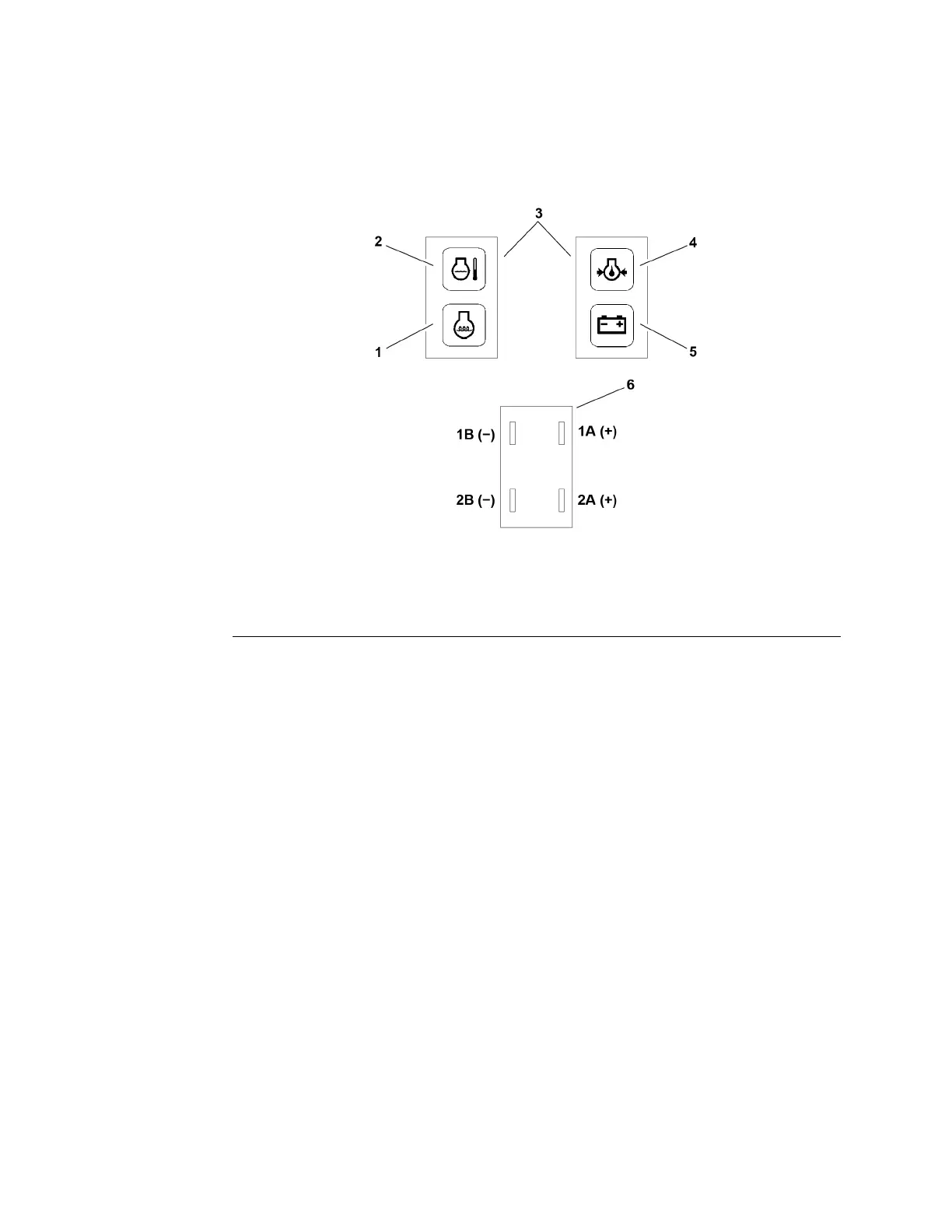

Figure131

1.Glowplugindicator3.Warninglightfront5.Chargeindicator

2.Hightemperaturewarning4.Engineoilpressure6.Warninglightback

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,settheparking

brake,andshutofftheengine.

2.Apply12VDCtotheterminals1Aand2A(Figure131).

3.Groundtheterminals1Band2B(Figure131).

4.Bothindicatorlightsshouldilluminate.

ElectricalSystem:TestingtheElectricalComponents

Page6–30

Groundsmaster

3280-D/3320

05138SLRevB
