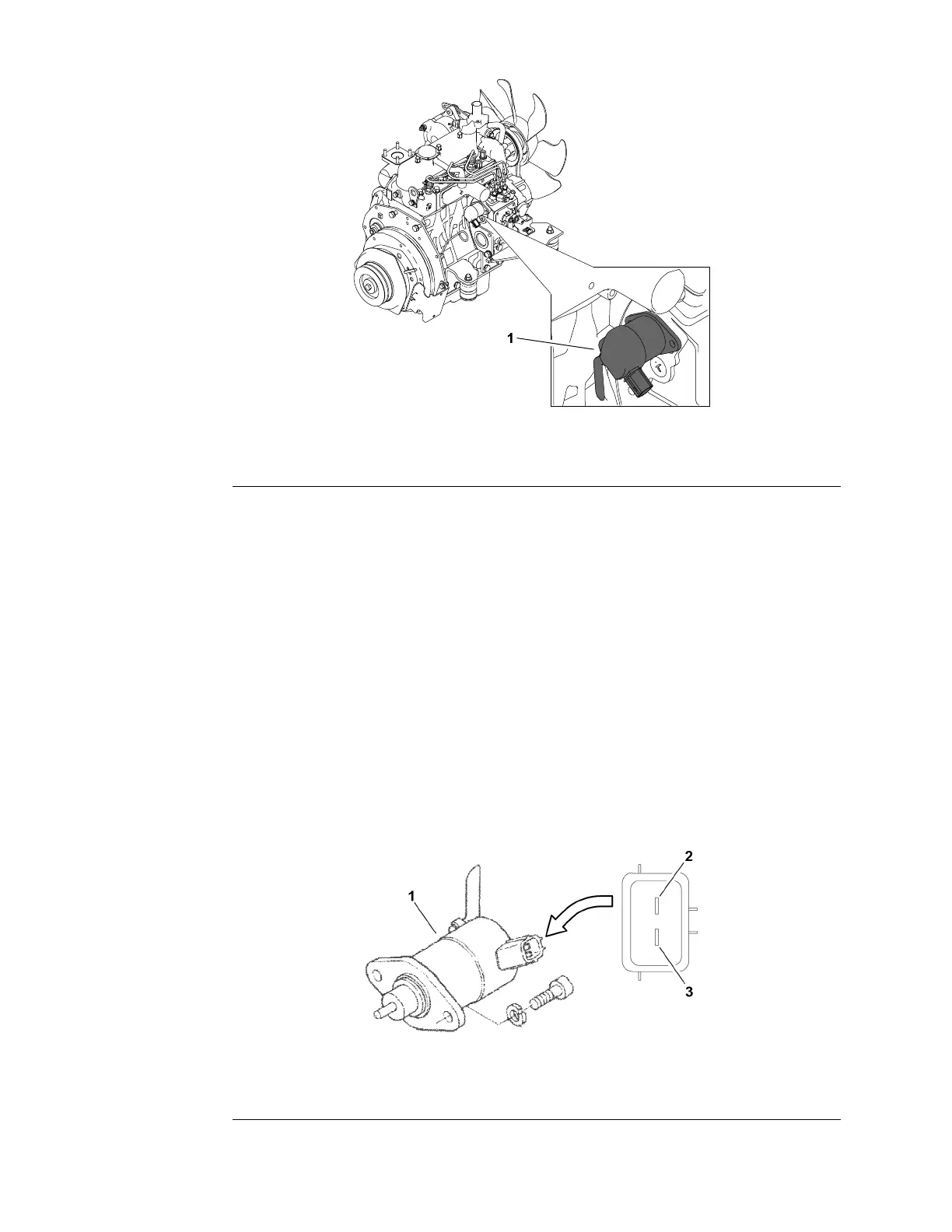

FuelStopSolenoid(Groundsmaster3280-D)

g225174

Figure166

1.Fuelstopsolenoid

ThefuelstopsolenoidusedontheGroundsmaster3280-Dmachinemustbe

energizedforthedieselenginetorun.Thesolenoidismountedtotheinjection

pumpontheengine(Figure166).

TestingtheFuelStopSolenoid(InPlace)

Note:Beforetakingthesmallresistancereadingswithadigitalmultimeter,short

themultimetertestleadstogether.Themeterwilldisplayasmallresistancevalue

(usually0.5ohmsorless).Thisresistanceisbecauseoftheinternalresistance

ofthemultimeterandtestleads.Subtractthisvaluefromthemeasuredvalueof

thecomponentyouaretesting.

1.Parkthemachineonalevelsurface,lowerthecuttingdeck,settheparking

brake,shutofftheengine,andremovethekeyfromthekeyswitch.

2.Unlatchthehoodandraiseit.

3.Locatethefuelstopsolenoidontheengineanddisconnectthewireharness

connectorfromthesolenoid.

g227148

Figure167

1.Fuelstopsolenoid2.Pullcoilterminal3.Holdcoilterminal

ElectricalSystem:TestingtheElectricalComponents

Page6–66

Groundsmaster

3280-D/3320

05138SLRevB
