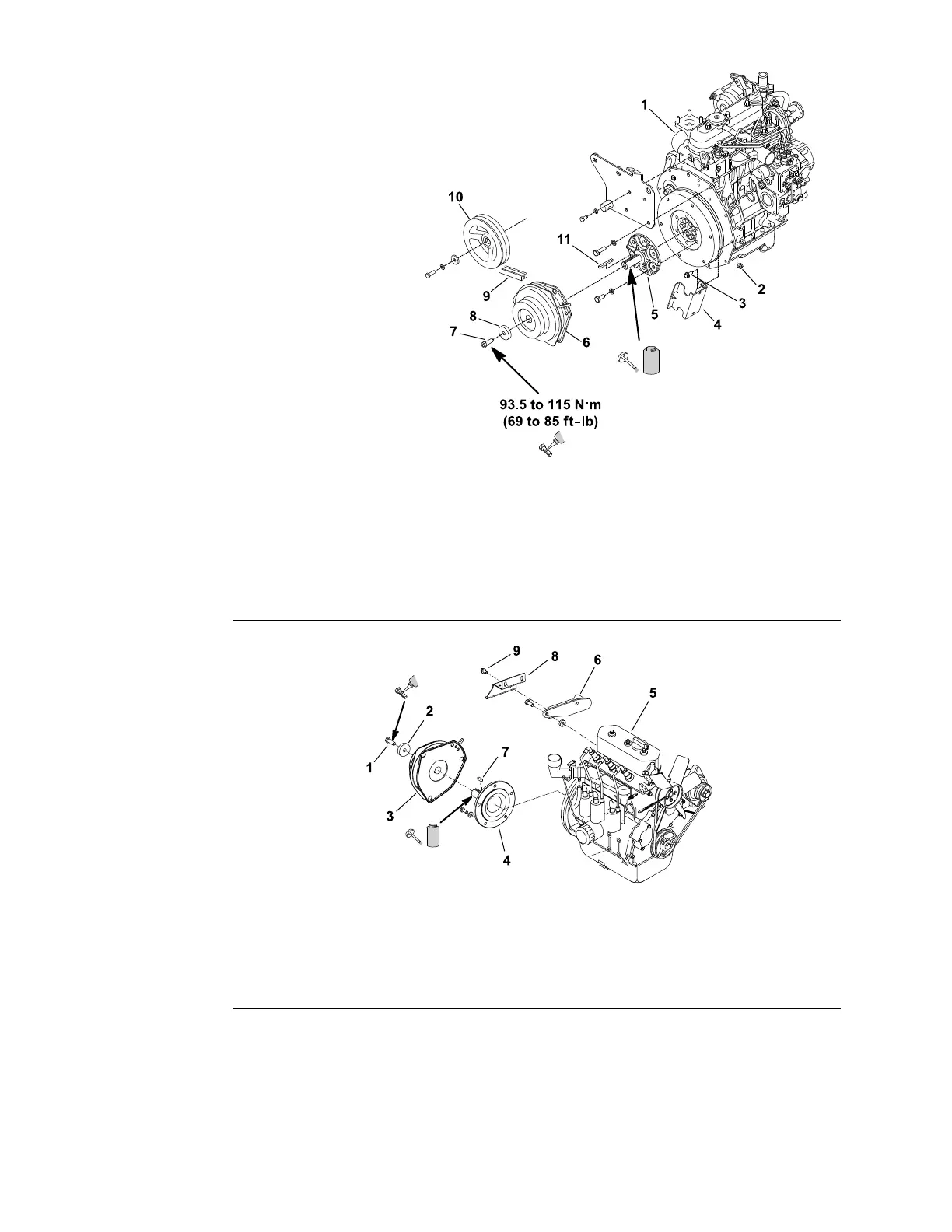

PTOElectricClutch

g227287

Figure175

1.Kubotadieselengine

5.Stubshaft9.PTOdrivebelt

2.Flangenut(2each)

6.Electricclutch

10.PTOshaftpulley

3.Flange-headscrew(2

each)

7.Bolt

11.Squarekey

4.Clutchstop8.Spacer

g230999

Figure176

1.Bolt

4.Stubshaft7.Squarekey

2.Spacer5.Gasolineengine8.Clutchstop

3.Electricclutch6.Mountingbracket9.Flange-headscrew

RemovingthePTOElectricClutch

1.Parkmachineonalevelsurface,lowercuttingdeck(orimplement),shutoff

theengine,settheparkingbrake,andremovethekeyfromthekeyswitch.

2.Unplugtheclutchconnectorfromthemachinewireharness.

ElectricalSystem:ServiceandRepairs

Page6–78

Groundsmaster

3280-D/3320

05138SLRevB
