Toro 30403 Service Manual

Radiator

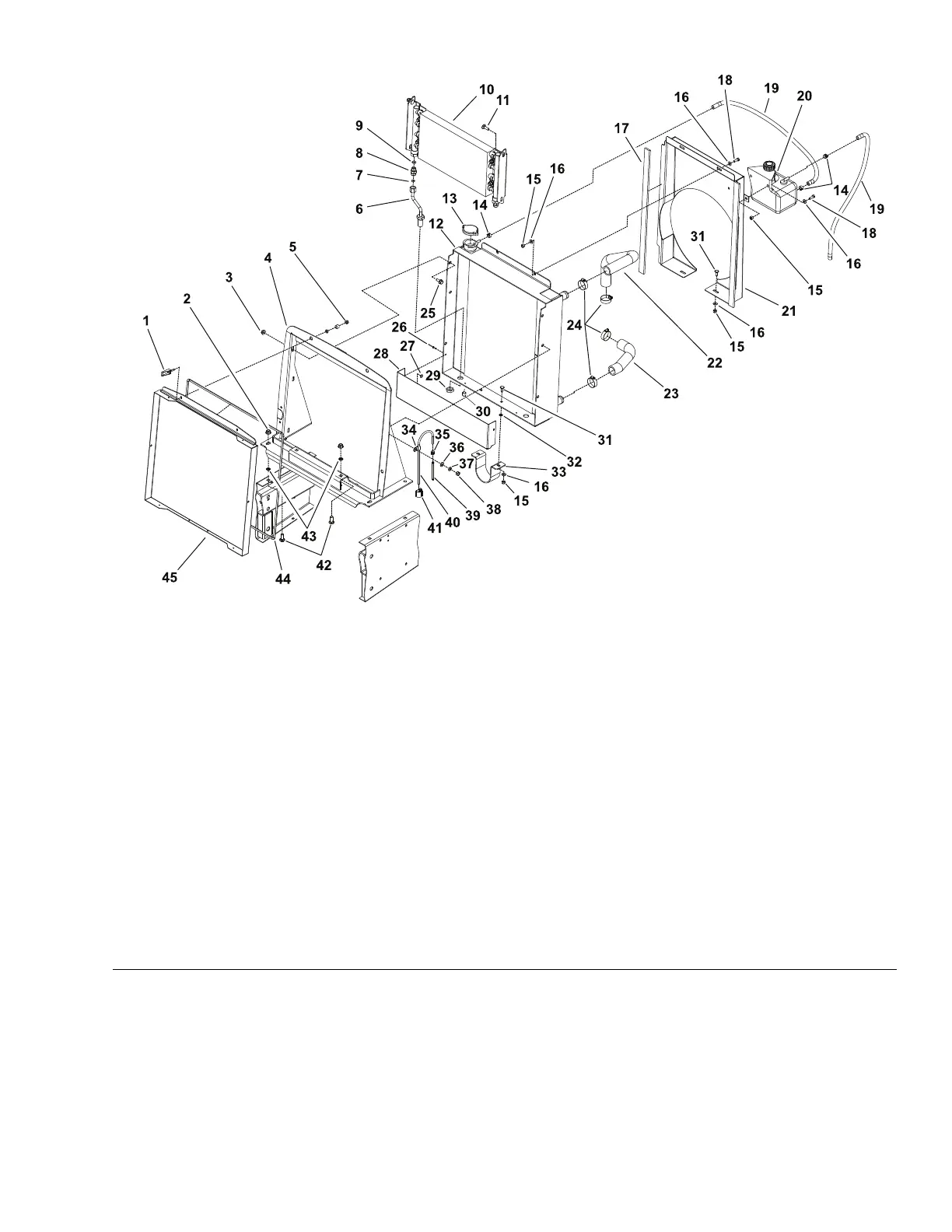

g221637
Figure25
1.Swelllatch(2each)
13.Radiatorcap25.Flange-headscrew
(4each)
37.Lockwasher(6each)
2.Flangenut(6each)14.Hoseclamp(3each)26.Poprivet(4each)38.Hexnut(6each)
3.Flangenut(4each)15.Locknut(8each)27.Backwasher(2each)
39.Venthose
4.Radiatorframe16.Flatwasher(10each)
28.Bottomradiatorshield40.Venttube
5.Locknut(2each)17.Foamstrip(2each)
29.Bulkheadlocknut
(2each)
41.Adhesiveclamp
6.Hydraulictube(2each)18.Bolt(4each)
30.Pipeplug
42.Carriagescrew(6each)
7.O-ring(2each)19.Reservoirhose(2each)31.Carriagebolt(4each)43.Retainingring(6each)
8.Straighthydraulictting
(2each)
20.Coolantreservoir
assembly
32.Retainernut(2each)
44.Foamseal
9.O-ring(2each)
21.Fanshroud
33.Driveshaftloop
45.Radiatorscreen
10.Oilcoolerassembly
22.Upperradiatorhose
34.Clamp
11.Carriagebolt(2each)
23.Lowerradiatorhose35.Hoseclamp
12.Radiator
24.Hoseclamp(4each)36.Flatwasher(6each)
Groundsmaster
®
3280-D/3320
Page4–11
DieselEngine:ServiceandRepairs
05138SLRevB
