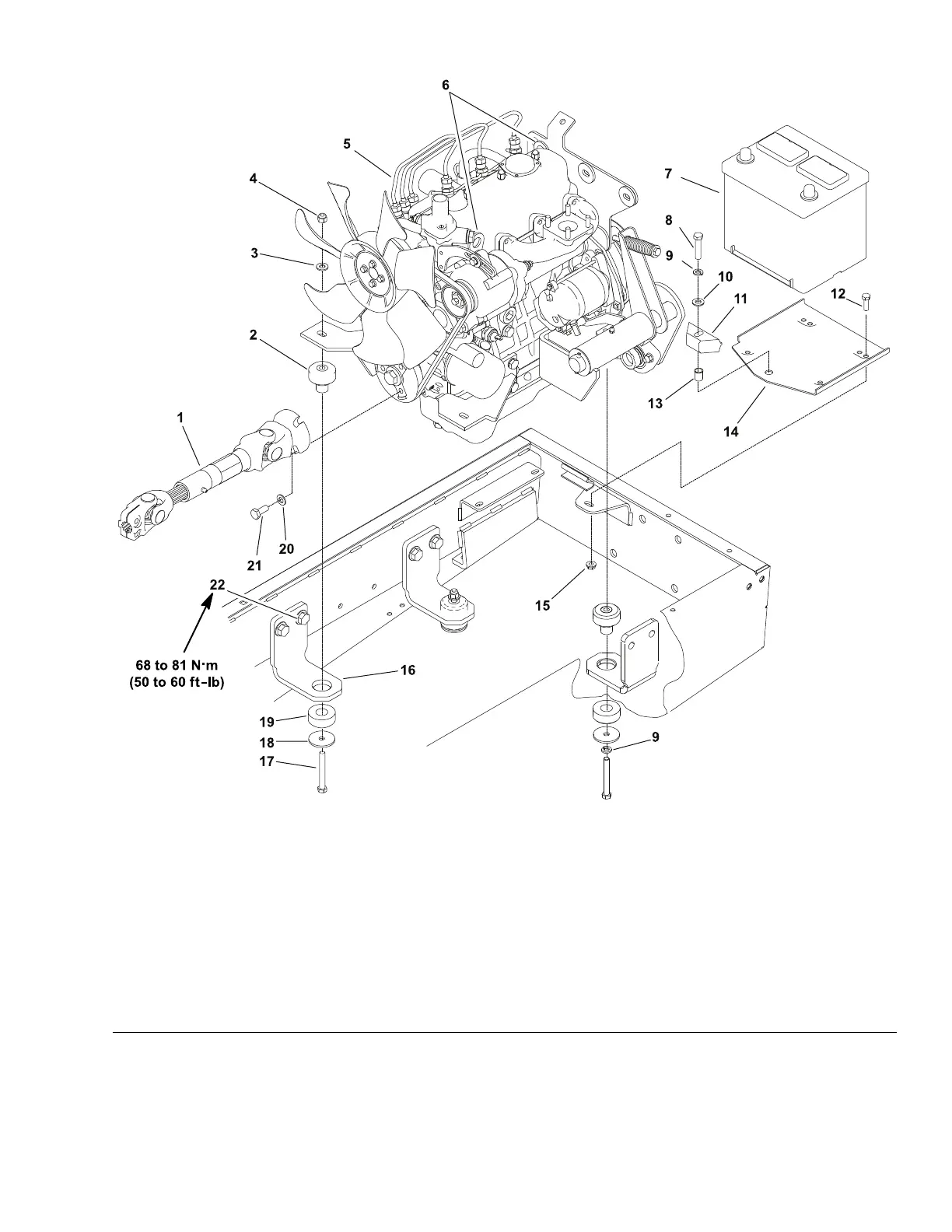

Engine

g222271

Figure28

1.Driveshaftassembly9.Lockwasher(2each)17.Bolt(4each)

2.Upperengineshockmount(4each)

10.Flatwasher

18.Reboundwasher(4each)

3.Flatwasher(3each)

11.Batteryretainer

19.Lowerengineshockmount(4each)

4.Locknut(3each)12.Bolt(3each)20.Flatwasher(3each)

5.Engine13.Threadedinsert

21.Bolt(3each)

6.Lifttabs

14.Batterybase

22.Flange-headscrew(8each)

7.Battery

15.Flangenut(3each)

8.Bolt

16.Enginemountbracket(4each)

Groundsmaster

3280-D/3320

Page4–19

DieselEngine:ServiceandRepairs

05138SLRevB
