Vacon 100 flow Applications Manual

Field
Weakening
Point
Field Weakening
Point Voltage
Motor Nominal
Voltage
Motor Nominal
Frequency
Stator Voltage Adjust
back-EMF
Zero Frequency
Voltage
(50..200%)
200%
100%
50%
f [Hz]
U [V]

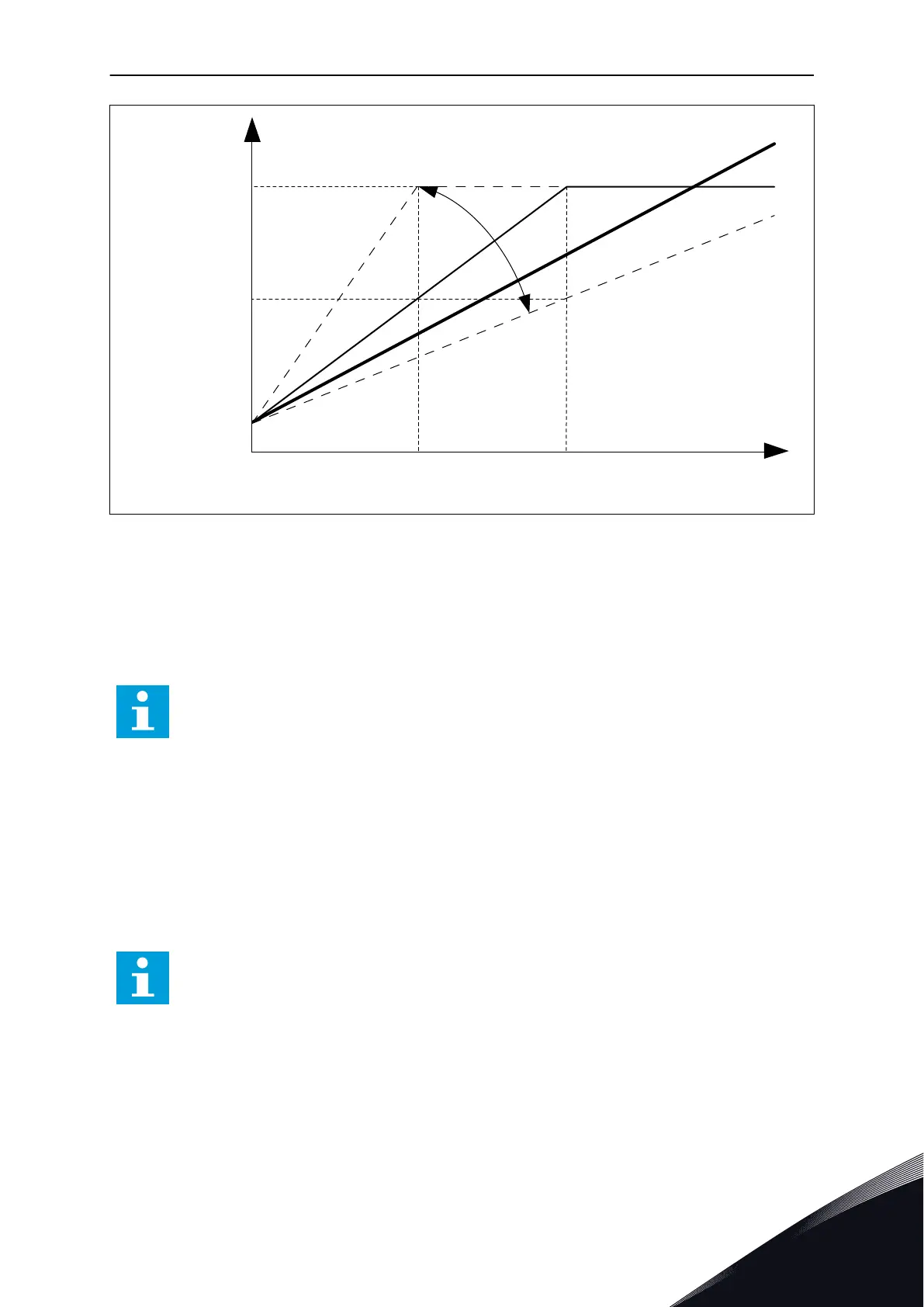

Fig. 37: The stator voltage adjustment
P3.1.2.15 STATOR RESISTANCE VOLTAGE DROP (ID 662)
Use this parameter to set the motor stator phase-resistance value (in star-connection
equivalent circuit). The resistance is essential for an accurate motor control.
The value is given as a percentage of voltage drop at nominal current.
NOTE!
The identification run sets a value for this parameter automatically. We
recommend that you make the identification run, if it is possible. You can make the
identification run with the parameter P3.1.2.4.
P3.1.2.16 STATOR INDUCTANCE VOLTAGE DROP (ID 673)
Use this parameter to set the motor stator phase-inductance value (in star-connection
equivalent circuit). The value is the transient inductance (for induction motors) or the line-to-
neutral inductance (for permanent magnet and reluctance motors).
The value is given as a percentage of voltage drop at nominal current and nominal frequency.
NOTE!
The identification run sets a value for this parameter automatically. We
recommend that you make the identification run, if it is possible. You can make the
identification run with the parameter P3.1.2.4.
PARAMETER DESCRIPTIONS VACON · 223
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
10

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
