Vacon 100 flow Applications Manual

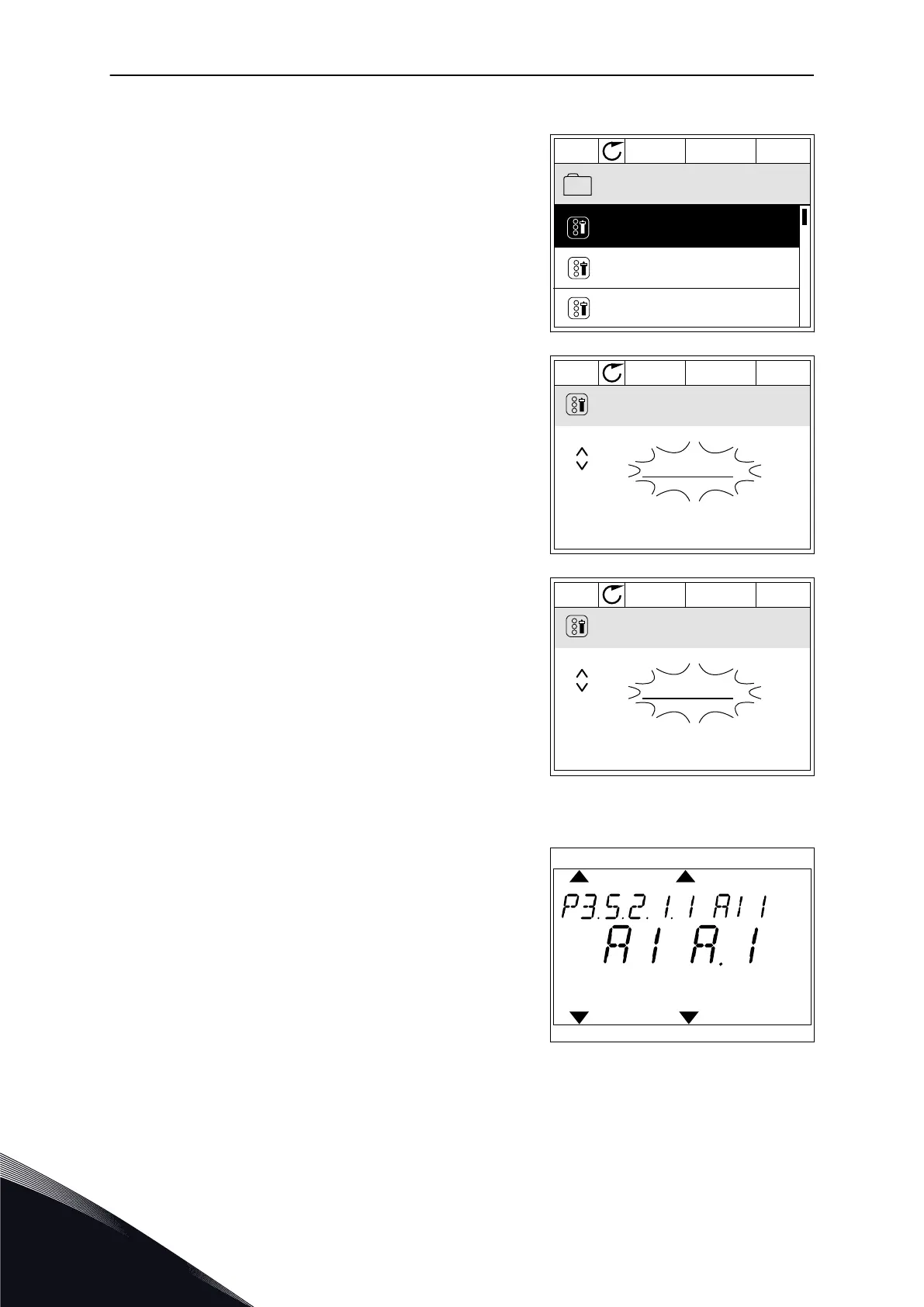

PROGRAMMING OF ANALOGUE INPUTS IN THE GRAPHICAL DISPLAY
1 To make a selection of the parameter, push the
arrow button Right.
STOP
READY I/O
Analogue Input 1
AI1 Filter Time
AI1 Signal Range
AnIN SlotA.1
0.10s
0-10V/0-20mA
AI1 Signal Sel
P3.5.2.1.1ID:377
2 In the Edit mode, the value AnIN SlotA is underlined
and blinks.
STOP
READY I/O
AI1 Signal Sel
AnIN SlotA.1
P3.5.2.1.1ID:377
Min:
Max:
3 To change the value to AnIN SlotC, push the arrow
button Up. Accept the change with the OK button.
STOP
READY I/O
AI1 Signal Sel
AnIN SlotC.1
P3.5.2.1.1ID:377
Min:
Max:
PROGRAMMING OF ANALOGUE INPUTS IN THE TEXT DISPLAY
1 To make a selection of the parameter, push the OK
button.
READY
FAULT
ALARM
STOP
RUN
KEYPAD
1/O
REV
FWD
BUS
VACON · 258 PARAMETER DESCRIPTIONS
10
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
