Vacon 100 flow Applications Manual

READY
FAULT
ALARM
STOP
RUN
KEYPAD
1/O
REV
FWD
BUS
A
B
C

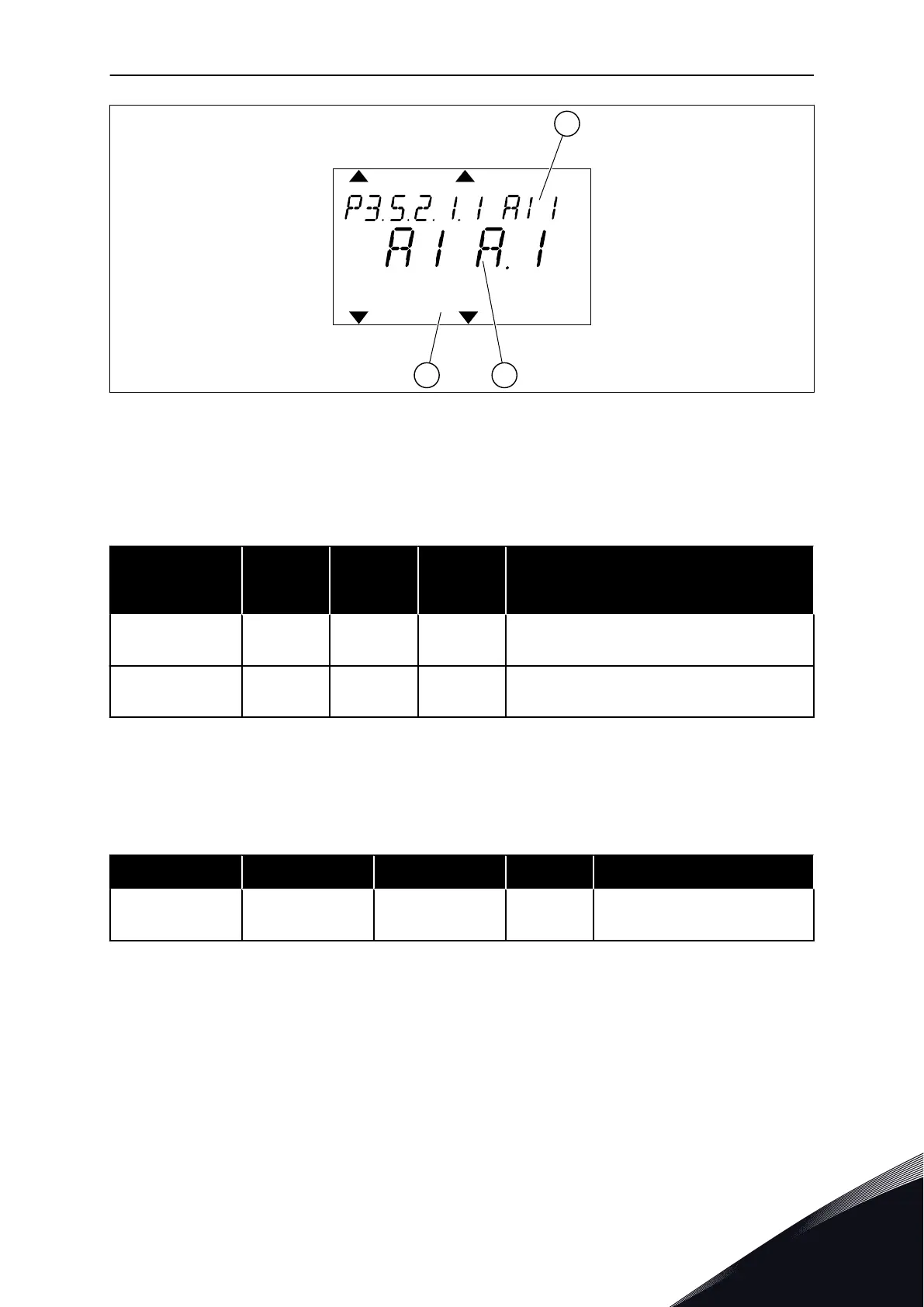

Fig. 56: The Analogue inputs menu in the text display
A. The text display
B. The name of the parameter
C. The value of the parameter, that is, the
set analogue input
In the standard I/O board compilation, there are 2 analogue inputs available: the slot A
terminals 2/3 and 4/5.
Input type (graphi-
cal display)
Input type
(text dis-
play)
Slot Input # Explanation
AnIN AI A 1
Analogue input #1 (terminals 2/3) on a board in
Slot A (standard I/O board).
AnIN AI A 2
Analogue input #2 (terminals 4/5) on a board in
Slot A (standard I/O board).
The location of the parameter P3.5.2.1.1 AI1 Signal Selection is the menu M3.5.2.1. The
parameter gets the default value AnIN SlotA.1 in the graphical display or AI A.1 in the text
display. The target input for the signal of the analogue frequency reference AI1 is then the
analogue input in the terminals 2/3. Use the dip switches to set the signal to be voltage or
current. See the Installation manual for more data.
Index
Parameter Default ID Description
P3.5.2.1.1
AI1 Signal Selec-
tion
AnIN SlotA.1 377
To change the input from AI1 to, for example, the analogue input on your option board in slot
C, obey these instructions.
PARAMETER DESCRIPTIONS VACON · 257
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
10

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
