Vacon 100 flow Applications Manual

[%]

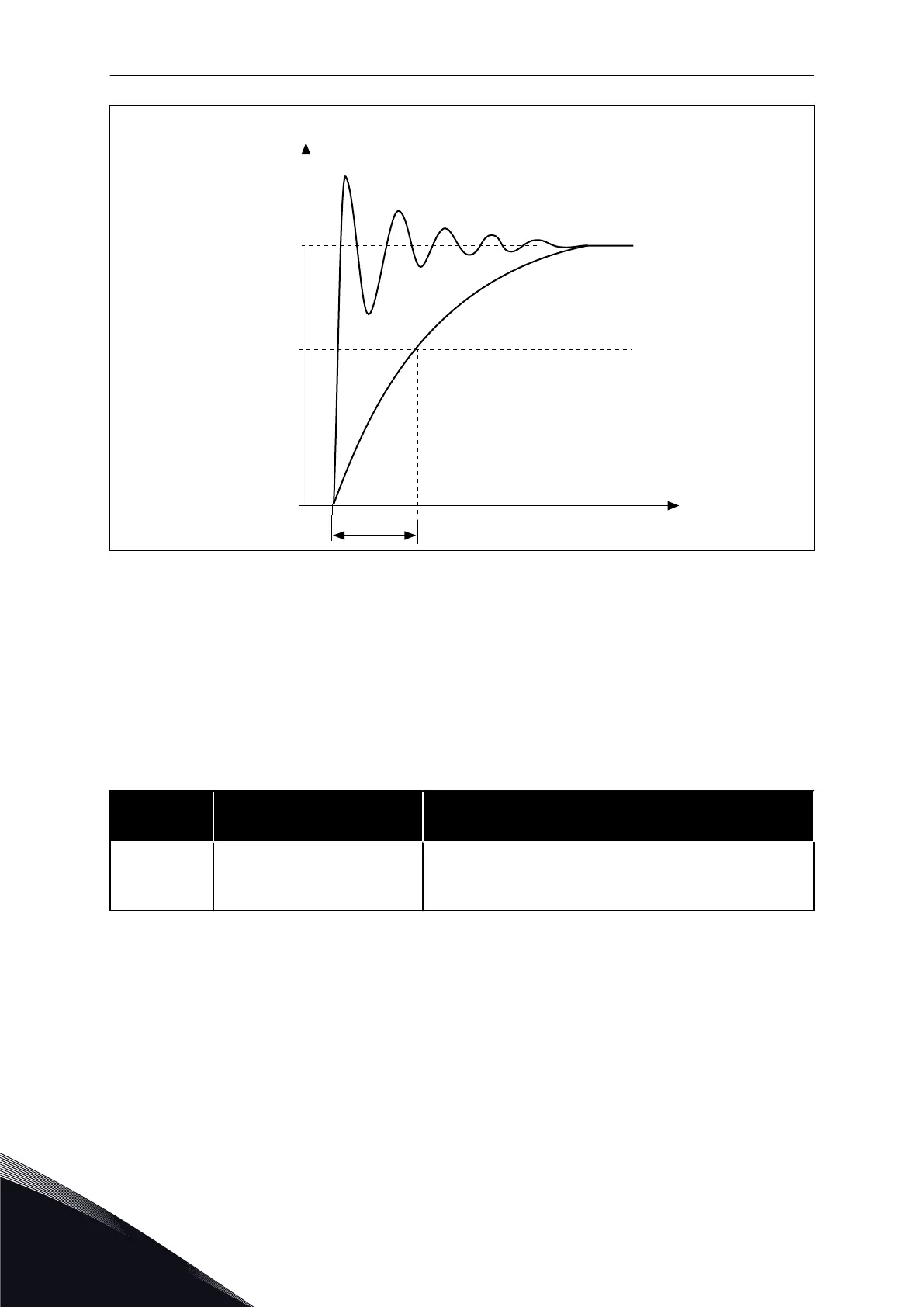

100%
63%
ID378
t [s]
Filtered signal
Unfiltered signal
Analogue input
signal
Fig. 57: The AI1 signal filtering
P3.5.2.1.3 AI1 SIGNAL RANGE (ID 379)
Use this parameter to change the range of the analogue signal.
The value of this parameter is bypassed if the custom scaling parameters are used.
Use the dip switches on the control board to set the type of the analogue input signal (current
or voltage). For more information, see the Installation manual.
It is also possible to use the analogue input signal as frequency reference. The selection of
the value 0 or 1 change the scaling of the analogue input signal.
Selection
number
Selection name Description
0 0...10V / 0...20mA
The range of the analogue input signal is 0...10V or 0...20mA
(the dip switch settings on the control board tell which one).
The input signal is 0...100%.
VACON · 268 PARAMETER DESCRIPTIONS
10
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
