Vacon 100 flow Applications Manual

0% 100%50%
C
B
A
D
0 mA 20 mA10 mA
[Hz]
[%]

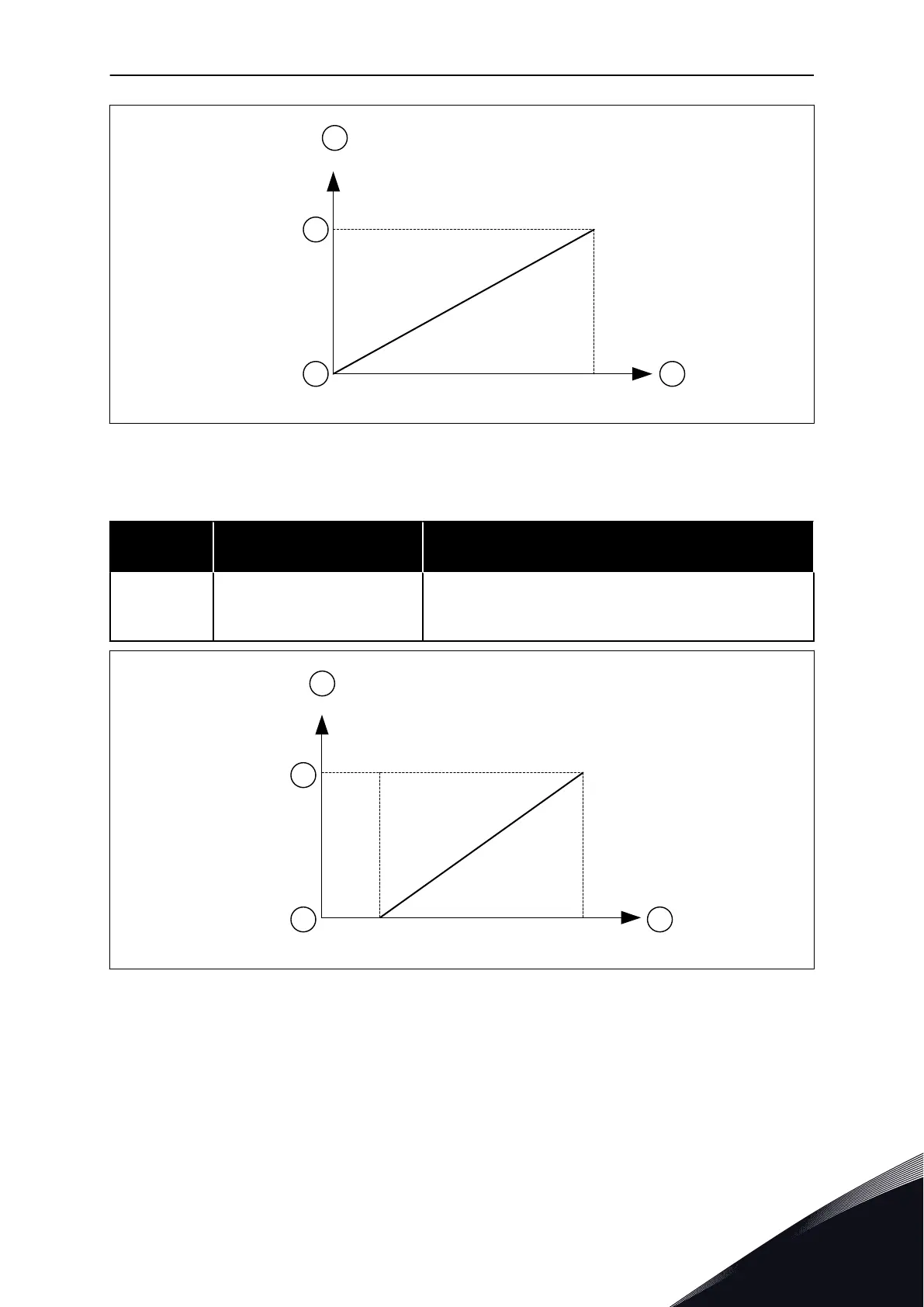

Fig. 58: The analogue input signal range, selection 0
A. Frequency reference
B. Max freq reference
C. Min freq reference
D. Analogue input signal
Selection
number
Selection name Description
1 2...10V / 4...20mA
The range of the analogue input signal is 2...10V or 4...20mA
(the dip switch settings on the control board tell which one).
The input signal is 20...100%.
0% 100%50%20%
C
B
A
D
[Hz]
[%]
0 mA 20 mA10 mA4 mA
Fig. 59: The analogue input signal range, selection 1
A. Frequency reference
B. Max freq reference
C. Min freq reference
D. Analogue input signal
PARAMETER DESCRIPTIONS VACON · 269
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
10

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
