Vacon 100 flow Applications Manual

K2 K3

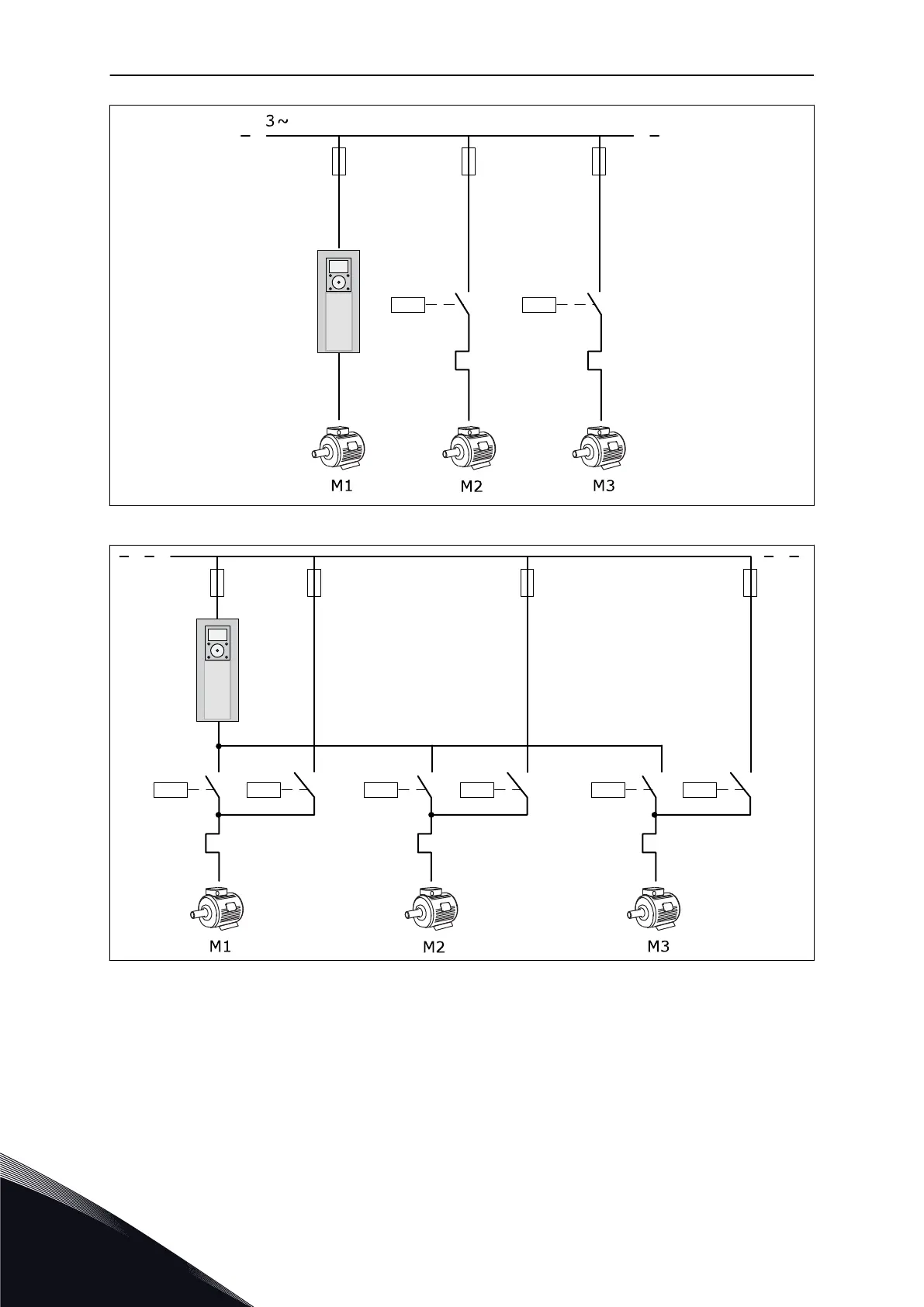

Fig. 9: Control diagram, where only the auxiliary motors are configured to autochange
K1 K2 K2 K1.1 K2.1 K3.1
Fig. 10: Control diagram, where all the motors are configured to autochange
You can use 2 control places. Make the selection of the control place A or B with DI6. When
control place Make the selection of the control place A or B with DI6. When control place A is
active, DI1 gives the start and stop commands, and the PID controller gives the frequency
reference. When control place B is active, DI4 gives the start and stop commands, and AI1
gives the frequency reference.
VACON · 32 QUICK STARTUP GUIDE
1
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/

Vacon 100 flow Specifications

General

Protection class	IP20
Communication interface	RS-485
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +70°C
Ambient temperature	-10°C to +40°C
Control method	Sensorless vector control
Communication protocols	CANopen
Approvals	CE, UL
I/O	2 analog inputs
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Frequency range	0 Hz to 400 Hz
Humidity	5% to 95%, non-condensing
Voltage range	208-240 V
