3 ~
PT
M1 M2 M3 M8
M1
M2
M3
M8
Start/Stop
RO2
RO3
RO8

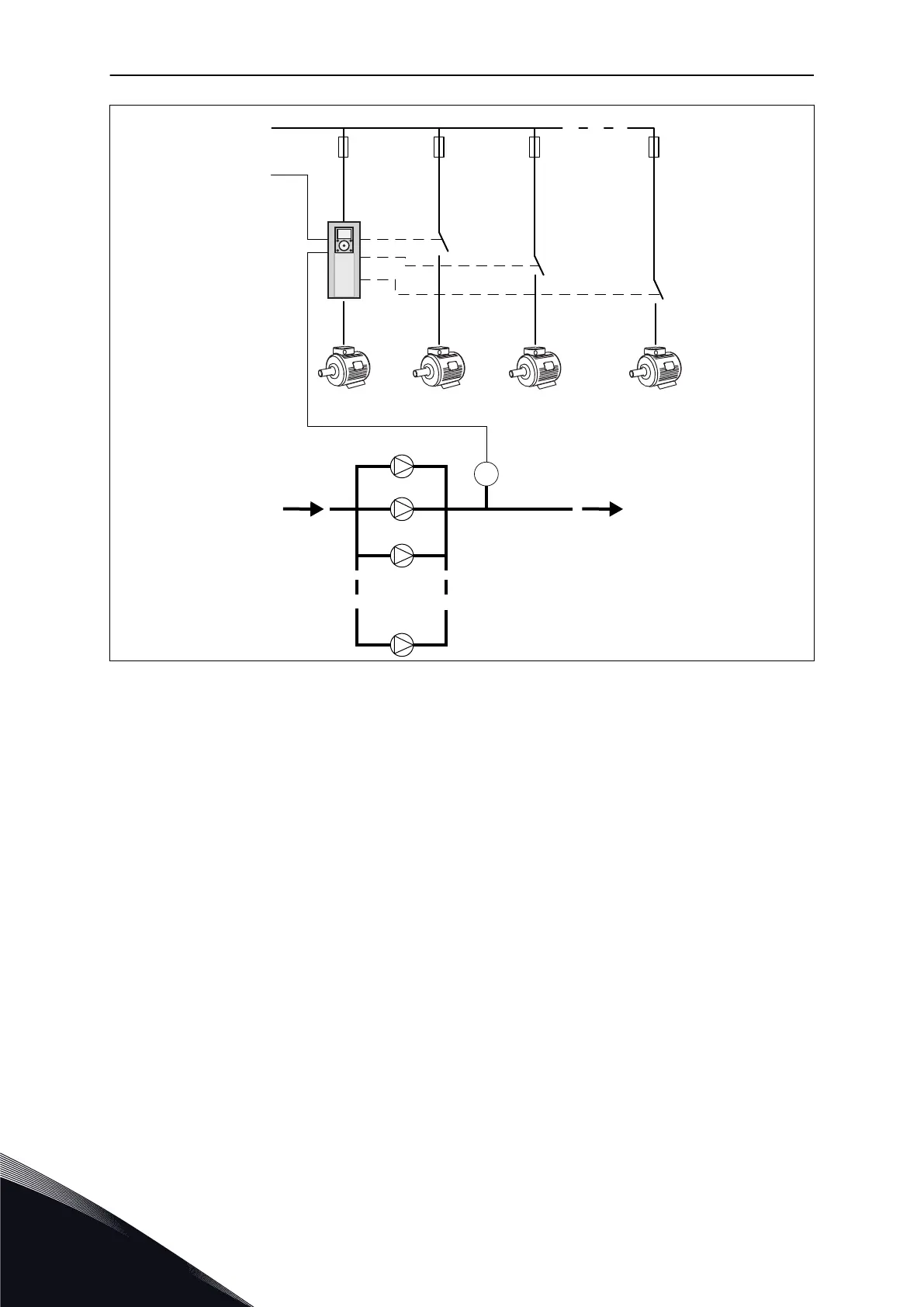

Fig. 90: Single drive configuration (PT = pressure sensor)
MULTIDRIVE CONFIGURATION
The Multidrive modes (Multimaster and Multifollower) control a system that has the
maximum 8 variable speed pumps. Each pump is controlled by a drive. The internal PID
controller of the drive controls all pumps. The drives use a communication bus (Modbus
RTU) for communication.
The figure below shows the Multidrive configuration principle. See also the general electric
diagram of a Multi-pump system in Fig. 18 Electric wiring diagramme of the Multi-pump
(multidrive) system, example 1A.
