Vaisala AWS310 User Manual

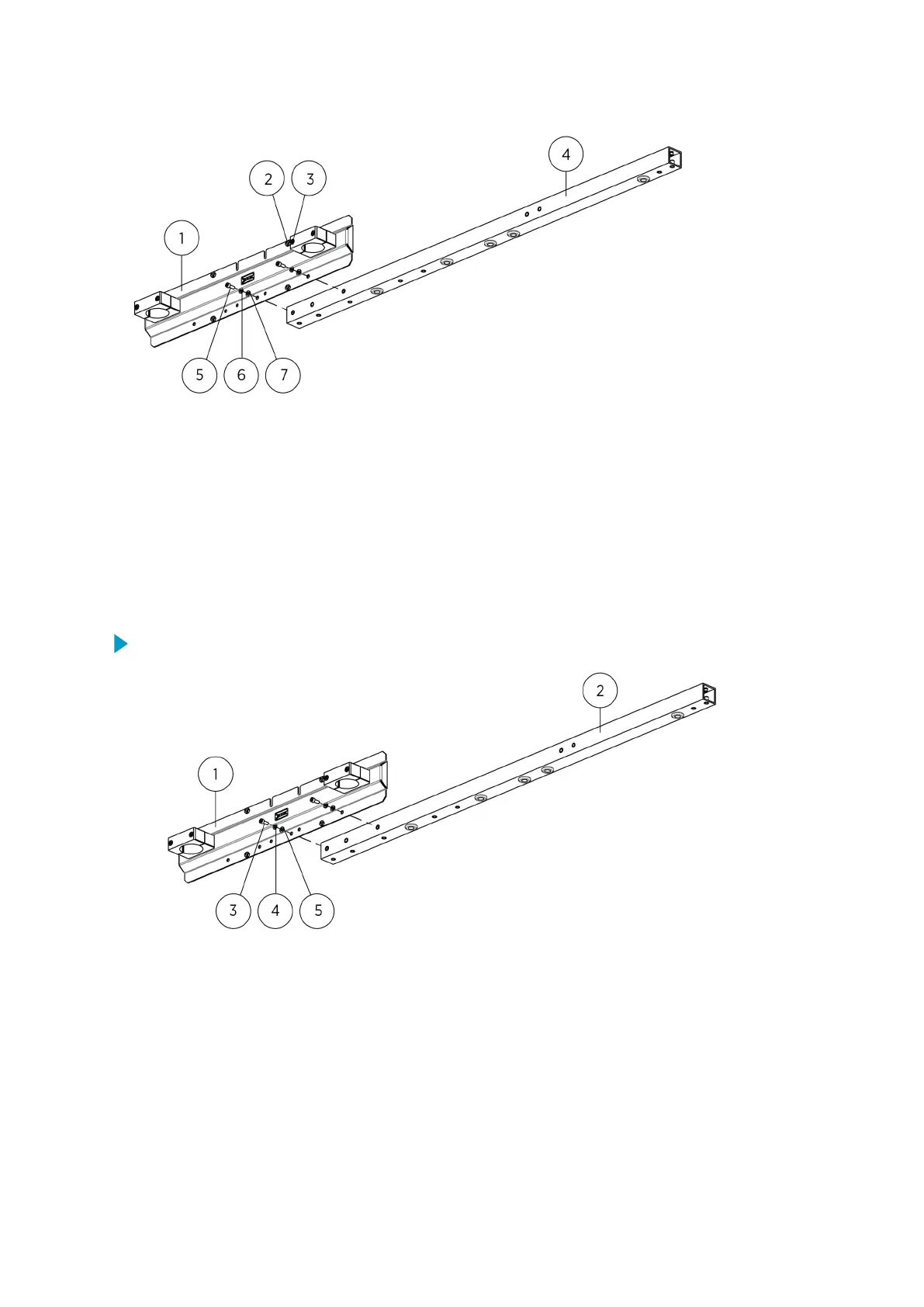

Figure 32 DKE200SUP1 Installation Accessories
1 Exel mast adapter (DRW228699)
2 Hex screw M6×70 DIN912 A4 (4 pcs)
3 Flat washer A6.4 DIN125 (4 pcs)
4 Sensor support arm (10391)
5 Hex screw M6×16 DIN912 A4 (4 pcs)
6 Spring lock washer B6 DIN127 (4 pcs)
7 Flat washer A6.4 DIN125 (4 pcs)
1. Attach the sensor support arm to the mast adapter.
1 Exel mast adapter
2 Sensor support arm
3 Hex screw M6×16 DIN912 A4 (4 pcs). Tightening torque 5 Nm.
4 Spring lock washer B6 DIN127 (4 pcs)
5 Flat washer A6.4 DIN125 (4 pcs)
Chapter 10 – Sensor Support Arm Installation
103
