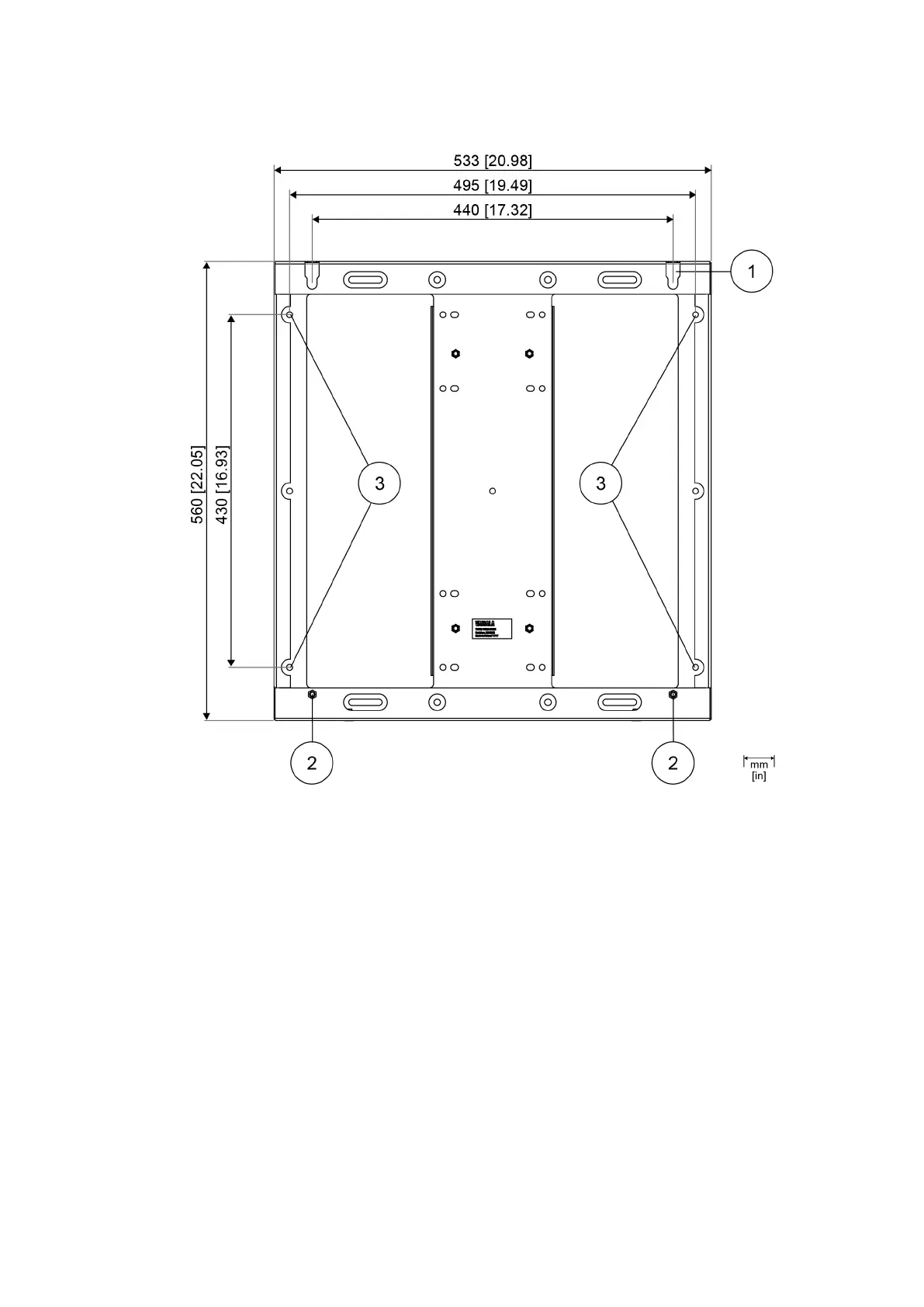

Figure 51 BOX652 Mounting Frame for Wall or Back Panel Installation (Front)

1 Enclosure mounting slot (2 pcs)

2 Hole for enclosure mounting screw (2 pcs)

3 Hole for wall mounting (4 pcs)

Chapter 12 – Enclosure Installation

157
