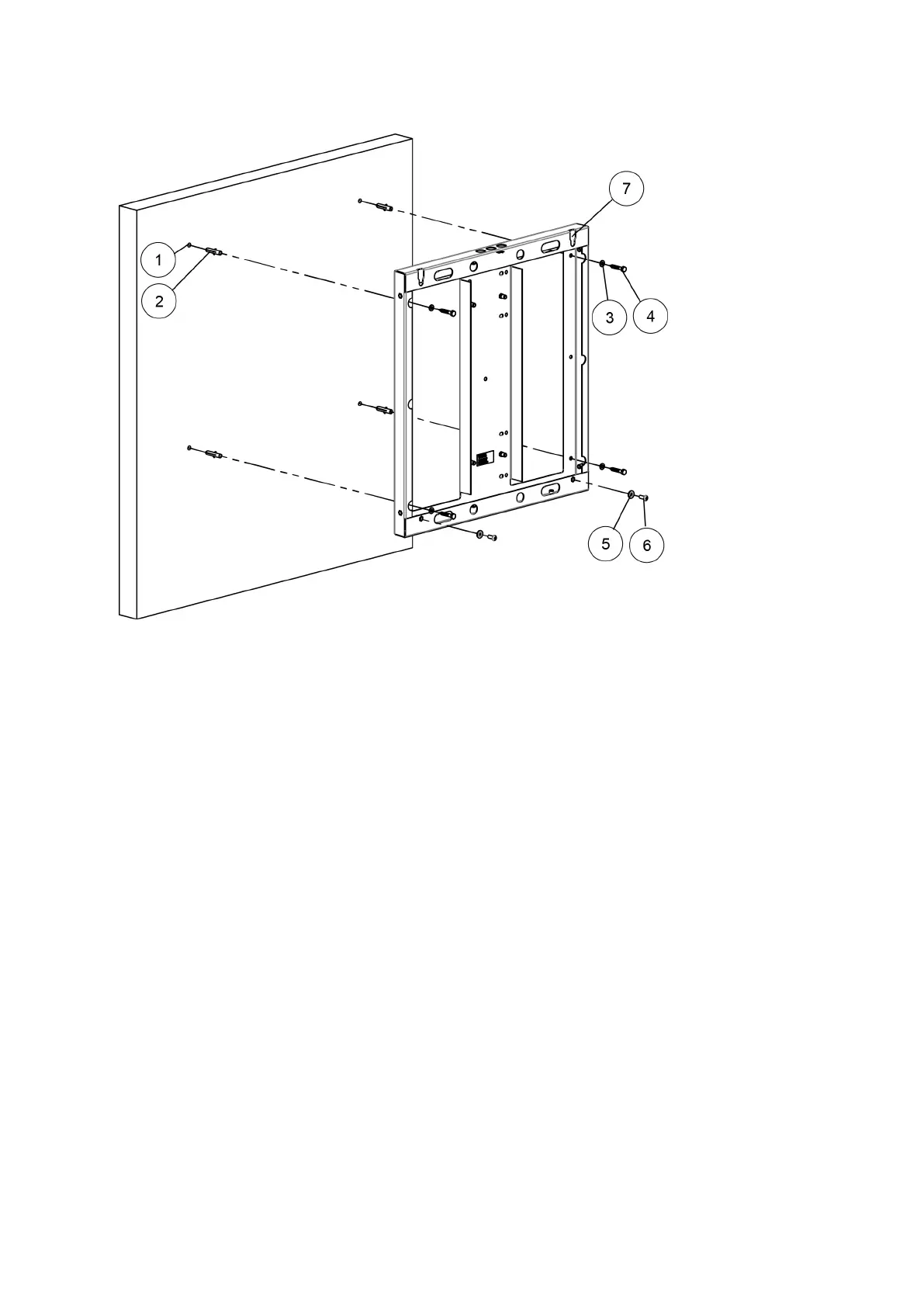

Figure 50 BOX652 Wall or Back Panel Installation Accessories

1 Hole for anchor plug (4 pcs)

2 Anchor plug (4 pcs)

3 Flat washer A6.4 DIN125 A4 (4 pcs)

4 Hex screw M6×40 DIN517 A4 (4 pcs)

5 Washer with EPDM gasket 6.8/16×1.5/A2/EPDM (2 pcs)

6 Hex screw M6×16 ISO7380 A4 (2 pcs)

7 Mounting slot (2 pcs)

AWS310/AWS310-SITE Installation Manual M211584EN-F
