11.2 Installing HMP110
Adjustable wrench
Mount the humidity and temperature probe at the opposite end of the sensor support
from the solar radiation sensor.
DTR504 with probe installation kit includes a rain/solar radiation shield DTR504 and a
plastic installation support for HMP110. Install the radiation shield on a sensor support arm.

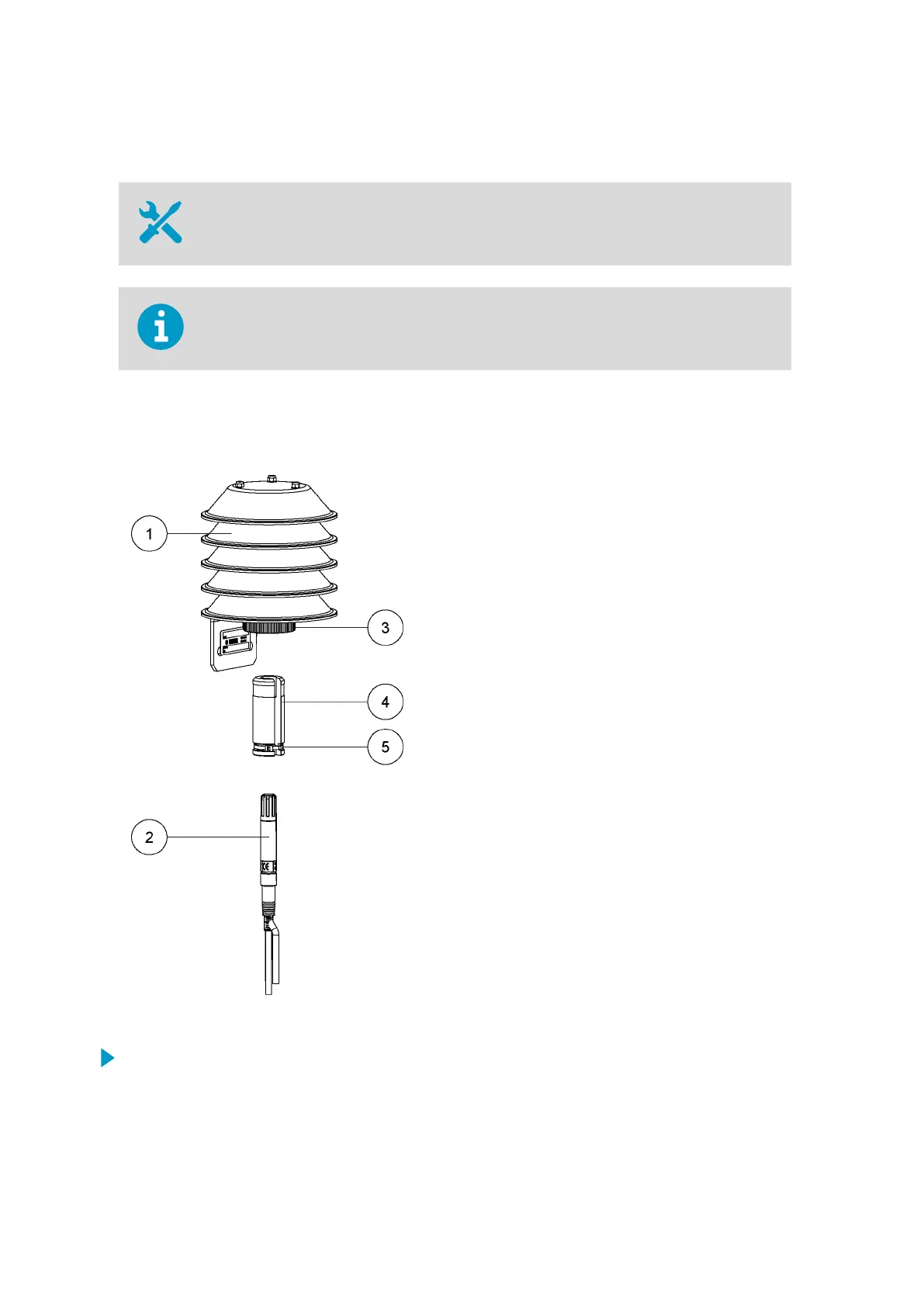

Figure 37 HMP110 Probe with Radiation Shield
1 Radiation shield DTR504
2 Probe HMP110
3 Plastic nut
4 Installation support (227777)
5 Cable tie
1. Fasten the probe to the installation support with a cable tie.
2. Insert the support to the radiation shield and attach it by tightening the plastic nut.
3. Attach the radiation shield on the sensor support arm with a U-bolt.
AWS310/AWS310-SITE Installation Manual M211584EN-F
118
