2.

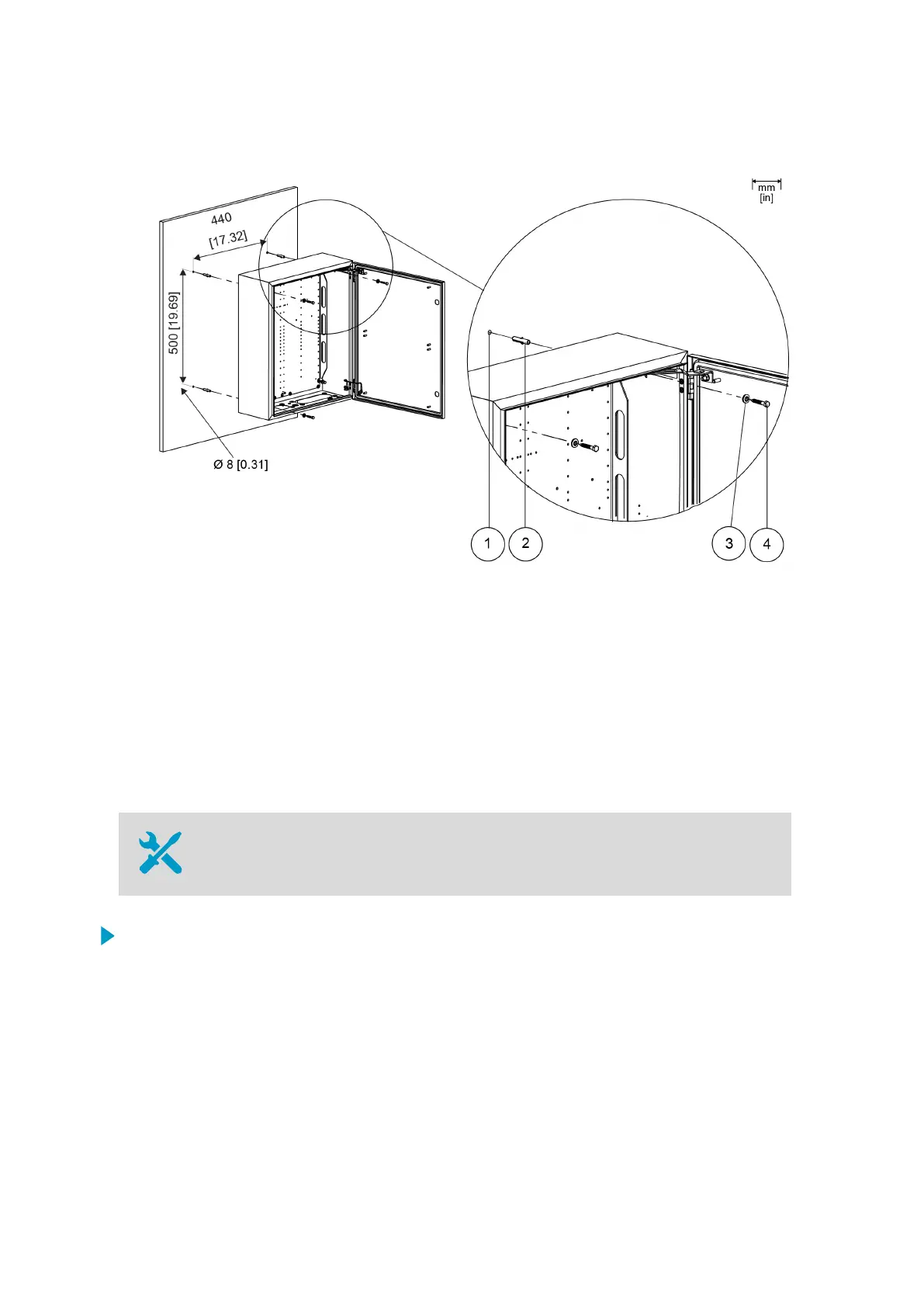

Place the anchor plugs int
o the drilled holes.
1
Hole for anchor plug 8×60 mm (4 pcs
)
2
Anchor plug 8×40 mm (4 pcs
)
3
W
asher with EPDM gasket 6.8/16×1.5/
A2/EPDM (4 pcs
)
4
W
ood scre
w 6×60 mm DIN571 (4 pcs
)
3.
Fix the enclosure t
o the wall with scr
ews.
12.
7
 Finalizing BO
X652 Ins
tallation
5
‑
mm Allen ke
y
1.
Aft
er the electrical installation, attach the cabling bo
x co
ver t
o the cabling box.
A
WS310
/
A
W
S310-SITE Installation Manual
M211584EN-F
164
165
167
