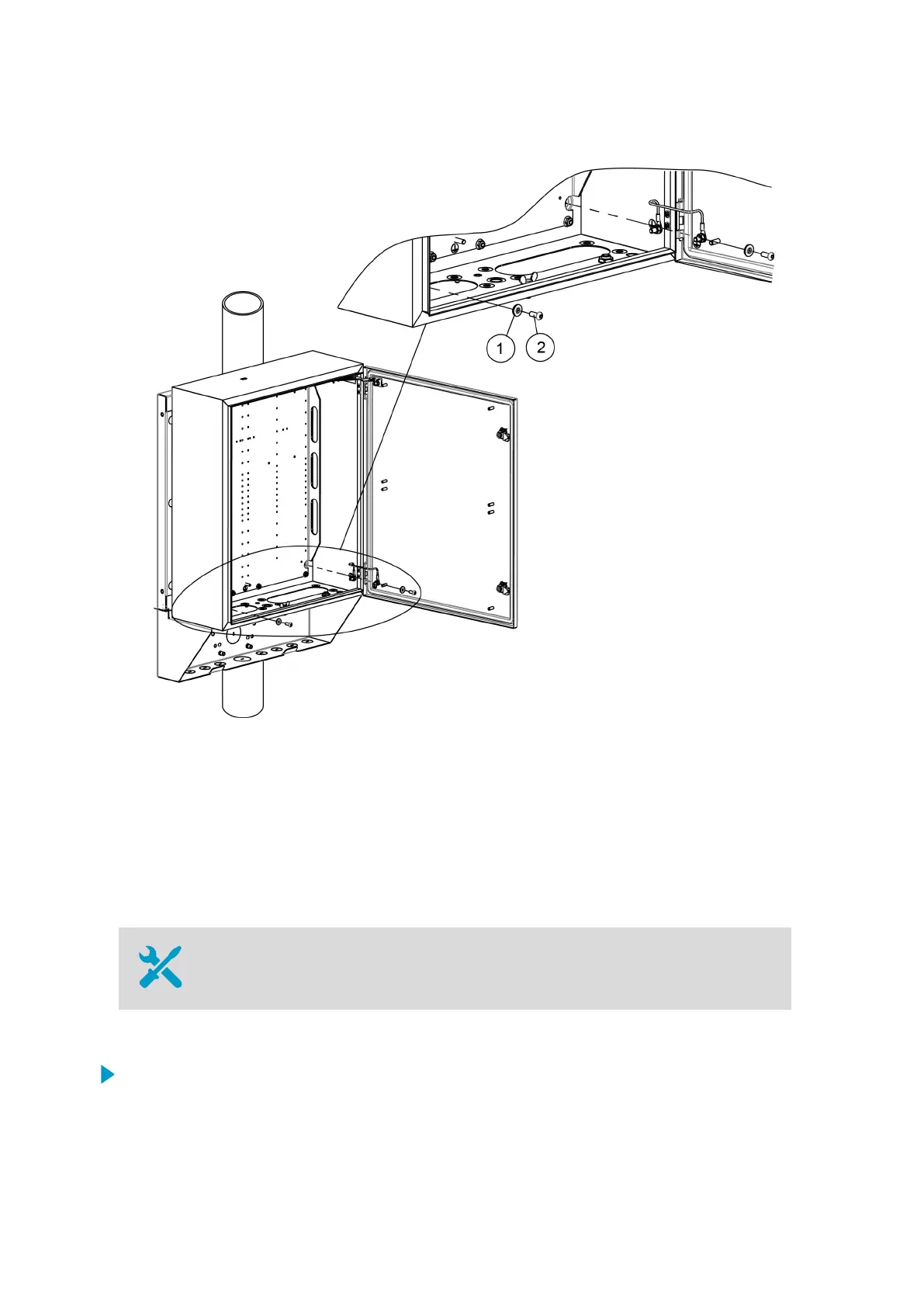

10. Attach the enclosure to the mounting frame.
1 Washer with EPDM gasket 6.8/16×1.5/A2/EPDM (2 pcs)
2 Hex screw M6×16 ISO7380 A4 (2 pcs). Tightening torque 5 Nm.
12.4 Installing BOX652 on Frangible
Lattice Mast
5‑mm Allen key
To install the enclosure on the frangible mast, use a mast adapter.
1. Measure and mark the place where the upper framing channel is to be installed.
To install the enclosure at eye height, place the upper framing channel approximately
1.45 m (4 ft 9 in) from the ground.
AWS310/AWS310-SITE Installation Manual M211584EN-F
