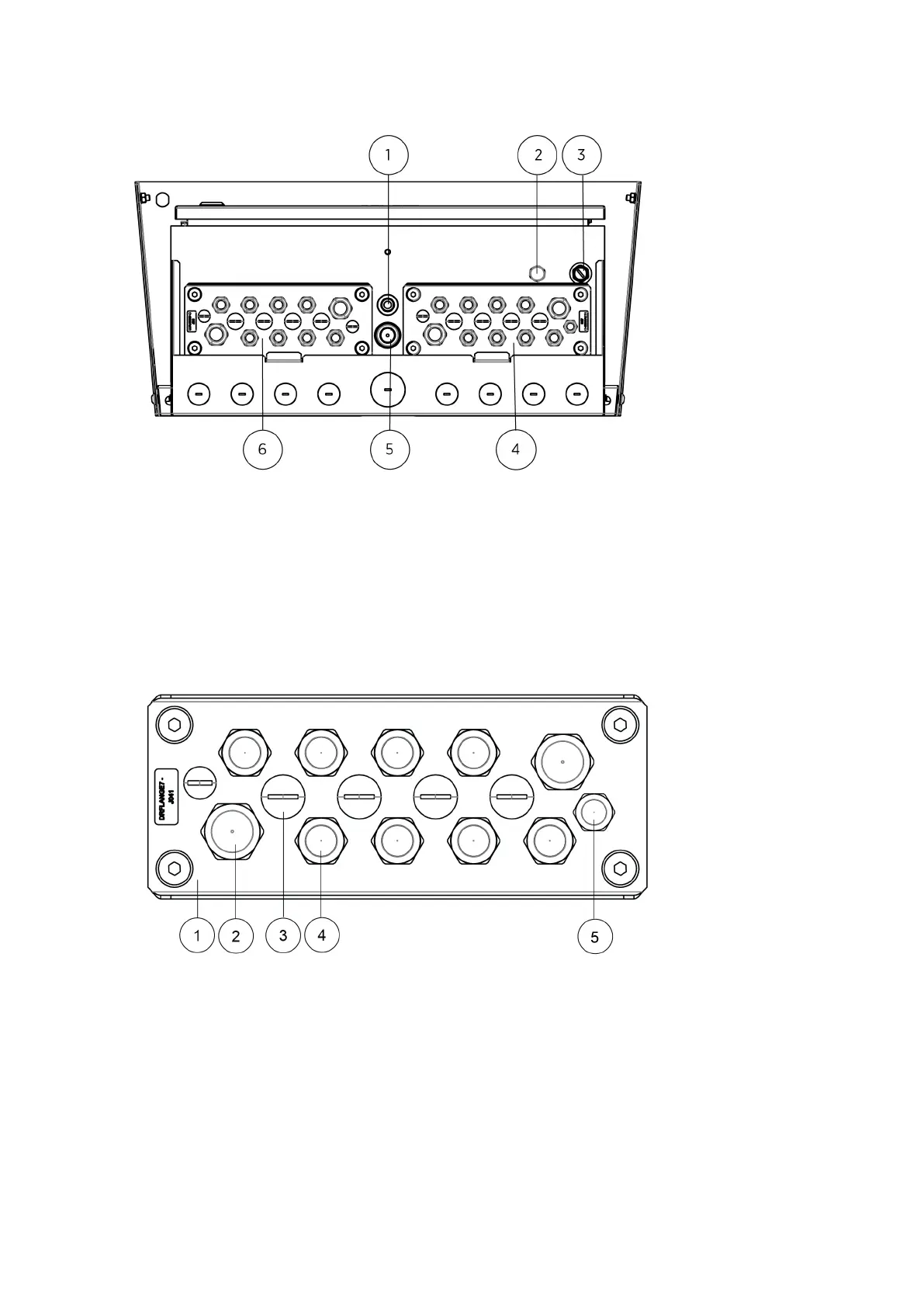

Figure 70 Enclosure Bottom View, Steel Flange
1 Hole for antenna protection module (for example, for UHF radio)
2 Enclosure pressure compensation device
3 Service port (maintenance terminal connection)
4 Flange for sensor cable connections
5 Hole for static pressure head
6 Flange for AC (mains) current (and possible extra sensor cable connections)
Figure 71 Stainless Steel Flange
1 Flange
2 Cable gland, cable diameter 7.5 … 14 mm (0.30 ... 0.55 in)
3 Dummy plug M16 × 1.5
4 Cable gland, cable diameter 5 … 10 mm (0.20 ... 0.39 in)
5 Cable gland, cable diameter 3 … 6.5 mm (0.12... 0.26 in)
Chapter 17 – Electrical Installation
223
