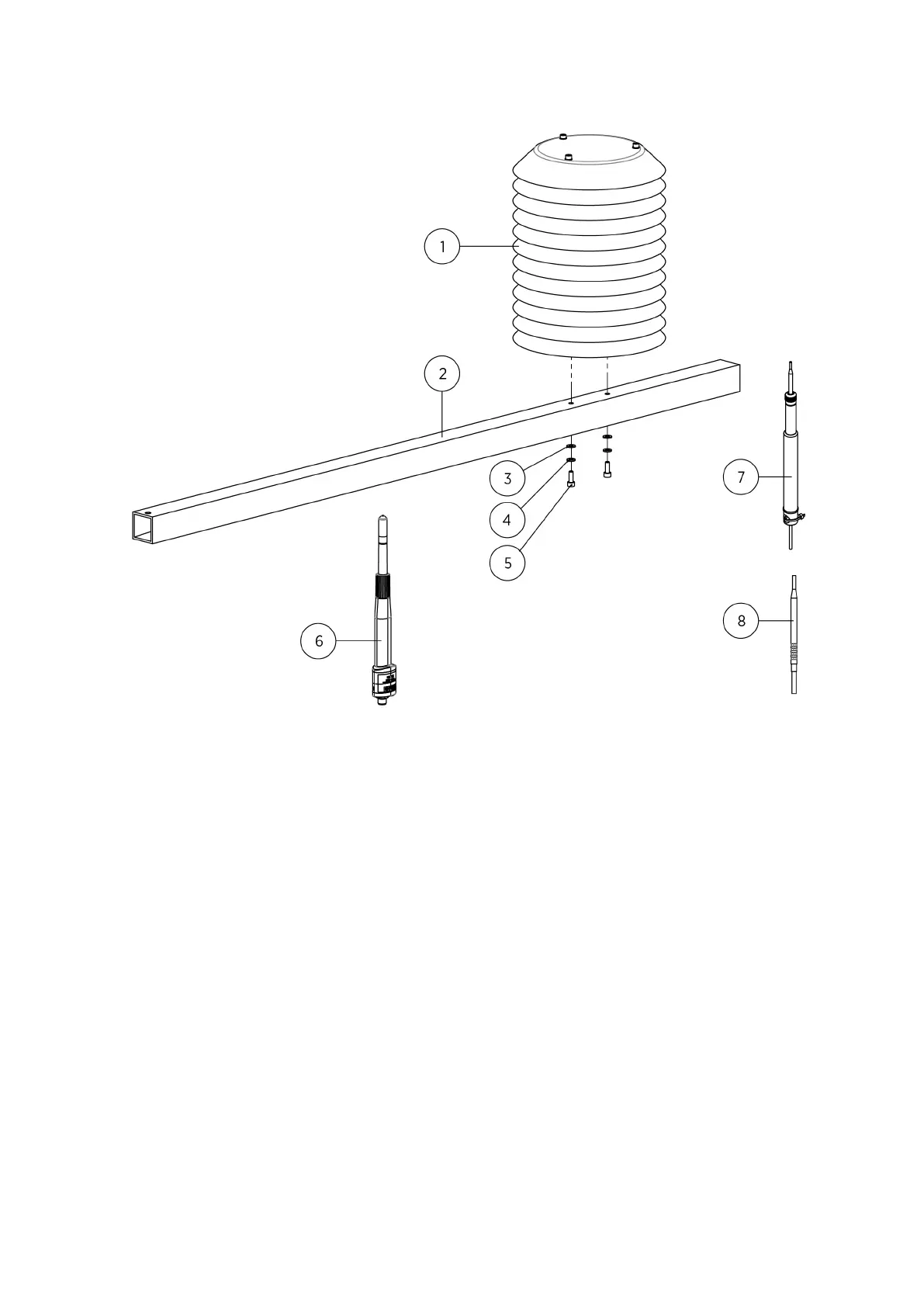

Figure 35 HMP155 and DTR13 Installation Accessories
1 Radiation shield (DTR13)
2 Sensor support arm (212564)
3 Flat washer A6.4 DIN125 A4 (2 pcs)
4 Spring lock washer B6 DIN127 A4 (2 pcs)
5 Hex screw M6×16 DIN912 A4 (2 pcs)
6 HMP155
7 T-probe adapter
8 T-probe (optional)
Chapter 11 – Sensor Installation to Sensor Support Arm
