13.3 Installing TERMBOX on Pole Mast

5-mm Allen key

1. Connect the backplate to TERMBOX using the 4 mounting screws.

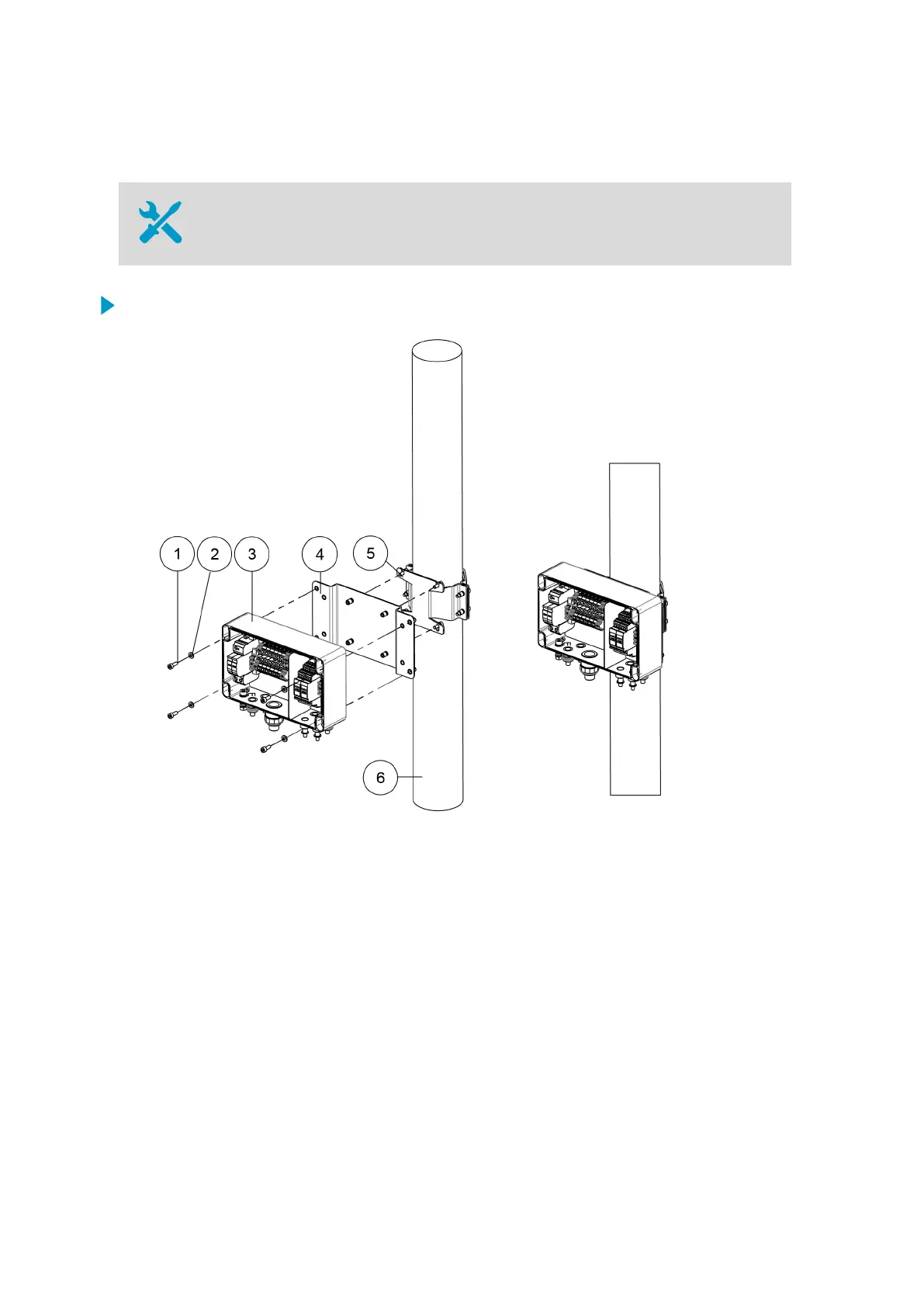

1 Hex screw M6×30 DIN912 A4 (4 pcs)

2 Flat washer A6 DIN125 A4 (4 pcs)

3 TERMBOX

4 Backplate

5 APPK-SET mounting clamp

6 Mast

2. Tighten the screws to make sure that the plate is ﬁrmly in place.

3. Fasten the TERMBOX and backplate assembly to the APPK-SET mast mounting clamp.

AWS310/AWS310-SITE Installation Manual M211584EN-F
