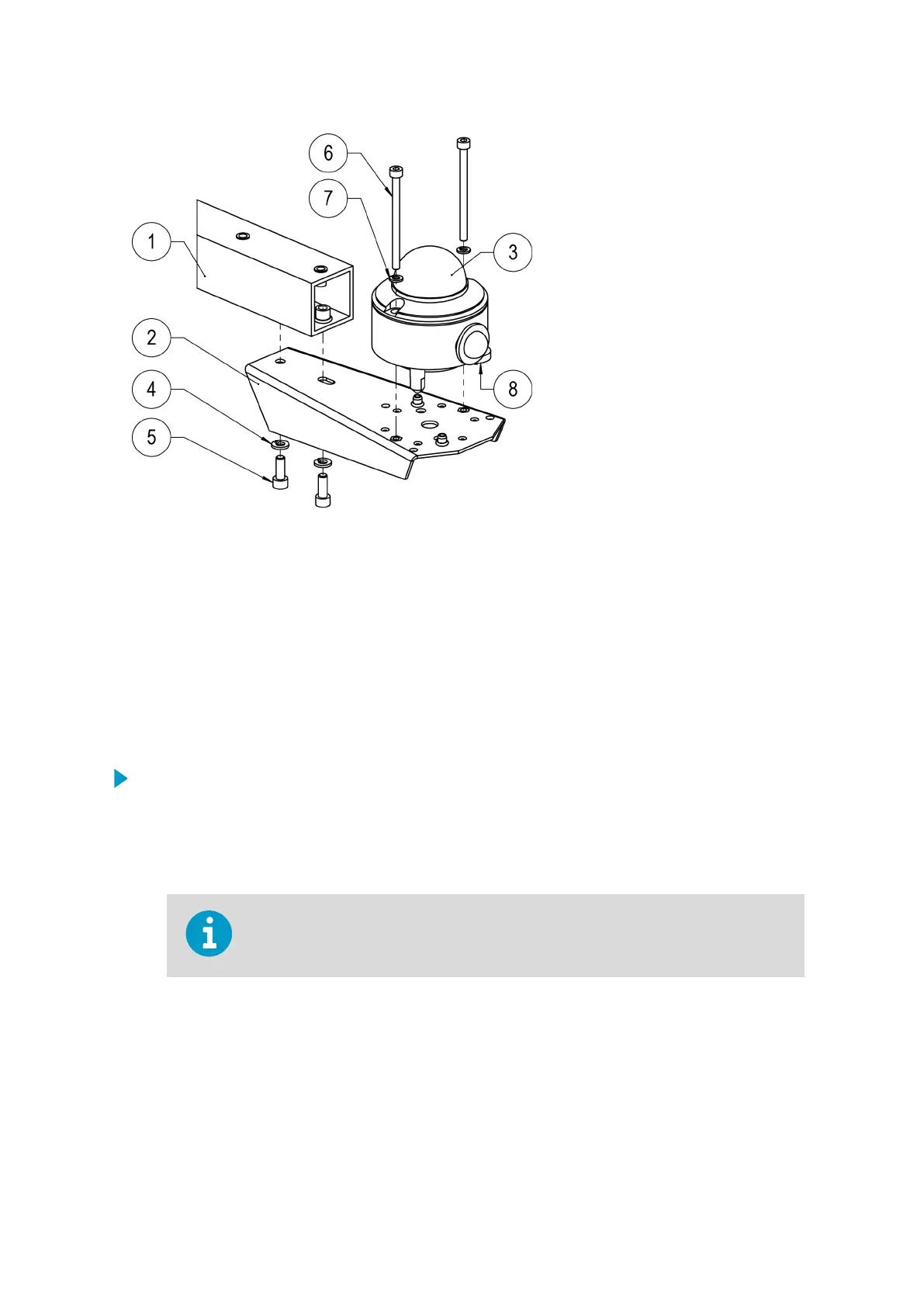

Figure 40 Installing Pyranometer CMP6
1 Sensor support arm
2 Mounting plate KZFIXPLATE
3 Pyranometer CMP6
4 Spring lock washer B6 DIN127 A4 (2 pcs)
5 Hex screw M6x16 DIN912 A4 (2pcs)
6 Screw M5 (2 pcs, in sensor package; use slothead screwdriver)
7 Nylon insulators (2 pcs, found in sensor package)
8 Leveling screw
1. Install the mounting plate onto the sensor support arm.
2. Prepare the sensor:
a. Carefully remove the plastic cover of the sensor by pressing the clips on the cover.
b. Attach the cable to the sensor and push the plastic cover back into place.
Be careful not to drop the sensor when you remove the cover. The cover is attached
tightly.
3. Attach the sensor to the mounting plate on the sensor support arm.
4. Place the pyranometer on the mounting plate so that the leveling screws and the leg
set in the small drillings on the mounting plate.
5. To enable leveling the pyranometer,
first secure it lightly with the two screws and two
nylon insulators.
Chapter 11 – Sensor Installation to Sensor Support Arm
125
