Vaisala AWS310 User Manual

1) Electronics not shown

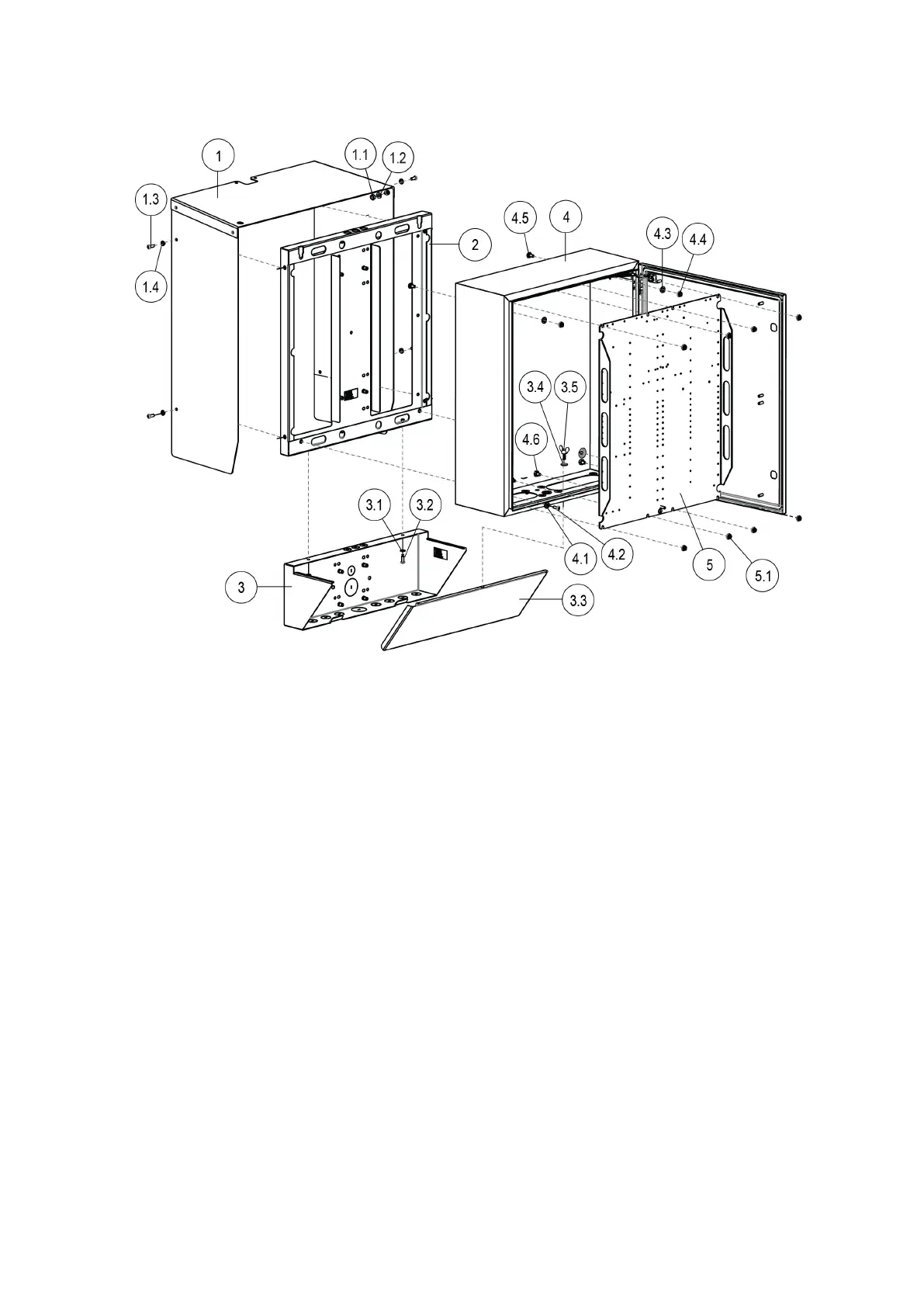

Figure 43 BOX652 and Components
1 Radiation shield
1.1 Hex nut M6 DIN934 A4 (4 pcs)
1.2 Spring lock washer B6 DIN127 A4 (4 pcs)
1.3 Hex screw M6×16 ISO7380 A4 (4 pcs)
1.4 Flat washer A6.4 DIN127 A4 (4 pcs)
2 Mounting frame
3 Cabling box
3.1 Flat washer A6.4 DIN125 A4 (2 pcs)
3.2 Hex screw M6×16 ISO7380 A4 (2 pcs)
3.3 Cabling box cover
3.4 Washer with EPDM gasket A6.8/16×1.5/A2/EPDM (1 pc)
3.5 Wing screw M6×16 DIN316 A4 (1 pc)
4 Enclosure
4.1 Washer with EPDM gasket A6.8/16×1.5/A2/EPDM (2 pc)
4.2 Hex screw M6×16 ISO7380 A4 (2 pcs)
4.3 Washer with EPDM gasket A6.8/16×1.5/A2/EPDM (2 pc)
4.4 Hex lock nut M6 Wulock Fe/Zn (2 pcs)
4.5 Hanger screw (DRW237931) (2 pcs)
4.6 Hex nut M8 DIN934 A4 (8 pcs)
5 Backplate
Chapter 12 – Enclosure Installation
139
