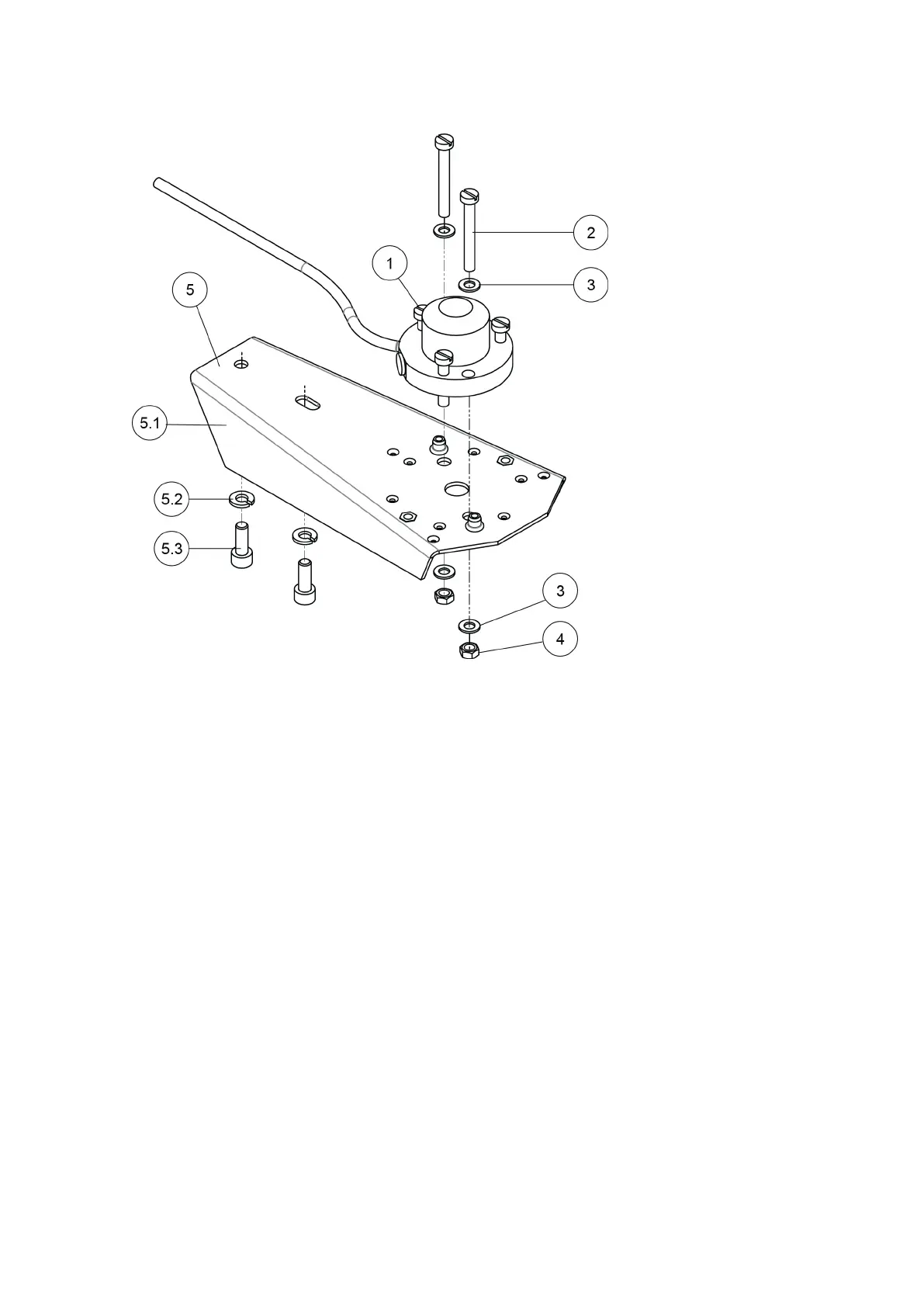

Figure 41 SP Lite2 Installation Accessories
1 Leveling screw (3 pcs), included in the pyranometer package
2 Hex screw (2 pcs), included in the pyranometer package
3 Washer (4 pcs), included in the pyranometer package
4 Hex nut (2 pcs), included in the pyranometer package
5 Mounting kit (KZFIXPLATE)
5.1 Mounting plate
5.2 Spring lock washer B6 DIN127 A4 (2 pcs)
5.3 Hex screw M6×16 DIN912 A4 (2 pcs)
The mounting kit package contains additional screws, washers, and nuts. Those are used for
installing other pyranometers.
Chapter 11 – Sensor Installation to Sensor Support Arm
127
